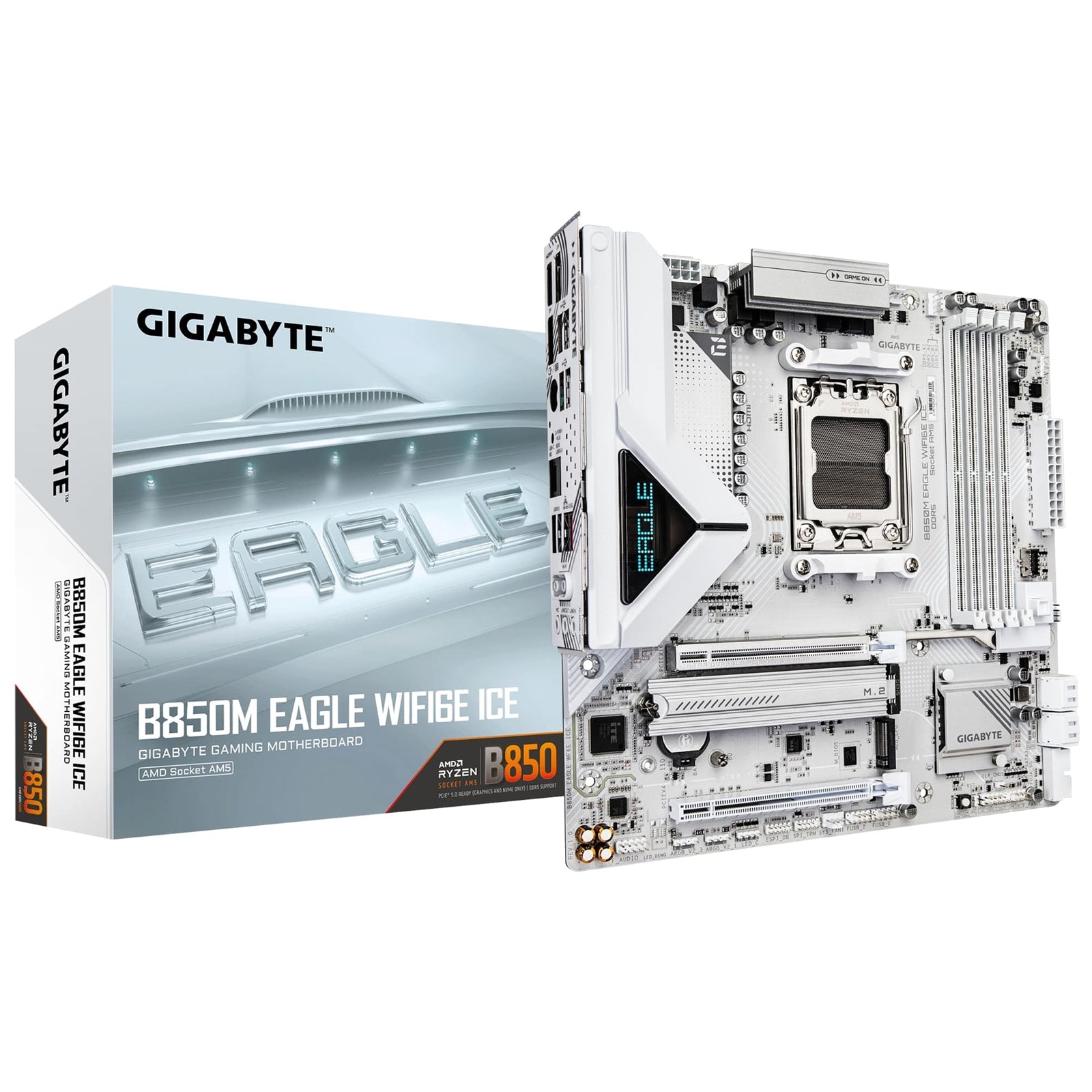

Gigabyte B850M Eagle WiFi 6E ICE - White Micro ATX Motherboard for AMD Ryzen

The Gigabyte B850M Eagle WiFi 6E ICE delivers high-performance computing in a striking white aesthetic. Built on the AMD B850 chipset with AM5 socket support, this Micro ATX motherboard is compatible with AMD Ryzen 9000, 8000, and 7000 Series processors, offering versatility for current and future builds.

X3D Turbo Mode for Enhanced Gaming Performance

Experience one-click gaming optimization with X3D Turbo Mode. This BIOS innovation allows Ryzen 9000 X3D processors to unlock enhanced gaming performance, while enabling non-X3D processors to achieve performance levels comparable to their X3D counterparts. Expect smoother gameplay, higher frame rates, and reduced latency without complex manual tuning.

DDR5 Memory Performance Up to 8200MT/s

Four DDR5 DIMM slots support up to 256GB of system memory with overclocking capabilities reaching 8200MT/s. The dual-channel architecture with AMD EXPO and XMP profile support ensures maximum memory performance for demanding applications and gaming workloads. The digital twin 8+2+2 phase VRM solution delivers stable power delivery for consistent system operation.

PCIe 5.0 Storage and Expansion

Two M.2 slots include PCIe 5.0 x4 support for ultra-fast NVMe SSDs, with the M2A_CPU connector offering PCIe 5.0 speeds on compatible Ryzen 9000/7000 processors. The primary PCIe x16 slot supports PCIe 5.0 graphics cards, while four SATA 6Gb/s connectors provide additional storage flexibility. EZ-Latch Plus and EZ-Latch Click designs enable tool-free installation of PCIe cards and M.2 drives with integrated thermal guards.

Comprehensive Connectivity

Dual USB Type-C ports with USB 3.2 Gen 2 support deliver high-speed data transfer on the rear I/O and internal headers. Realtek 2.5GbE LAN ensures fast wired networking, while WiFi 6E with Realtek RTL8852CE chipset and Bluetooth 5.3 provides wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands. The WIFI EZ-Plug design simplifies antenna installation.

Multi-Display Support

Integrated graphics output includes one HDMI 2.1 port supporting 4096x2160@60Hz with HDR and HDCP 2.3, plus two DisplayPort 1.4 outputs capable of 3840x2160@144Hz. Triple-display configuration is supported for enhanced productivity and multi-monitor gaming setups.

Advanced Thermal Management

VRM Thermal Armor Advanced and M.2 Thermal Guard heatsinks maintain optimal temperatures under sustained loads. The full-metal thermal design with durable heatsinks ensures efficient heat dissipation for stable performance during extended gaming sessions or intensive workloads.

User-Friendly DIY Features

Q-Flash Plus enables BIOS updates without CPU installation, while the hassle-free assembly design with screwless M.2 mounting and PCIe slot mechanisms streamlines the build process. Three addressable RGB Gen2 headers and one RGB LED header allow full lighting customization. The 24.4cm x 24.4cm Micro ATX form factor fits compact cases while maintaining full feature sets.

Gigabyte B850M Eagle WIFI 6E Ice

X3D Turbo Mode

Unleash New Era Gaming Performance with One-Click Activation.

X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

One-Click Acceleration :
Enhance Gaming FPS Performance with a single click.

Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods

Steady Power
Eagle Series with steady power keeps your AI operation smooth.

Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Key Features
X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 8+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity : HDMI, 2*Displayport
PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Specifications

CPU
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors/
AMD Ryzen 8000 Series Processors/
AMD Ryzen 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset
AMD B850

Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
(Note) Actual support may vary by CPU.

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B850
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• USB C: Yes
