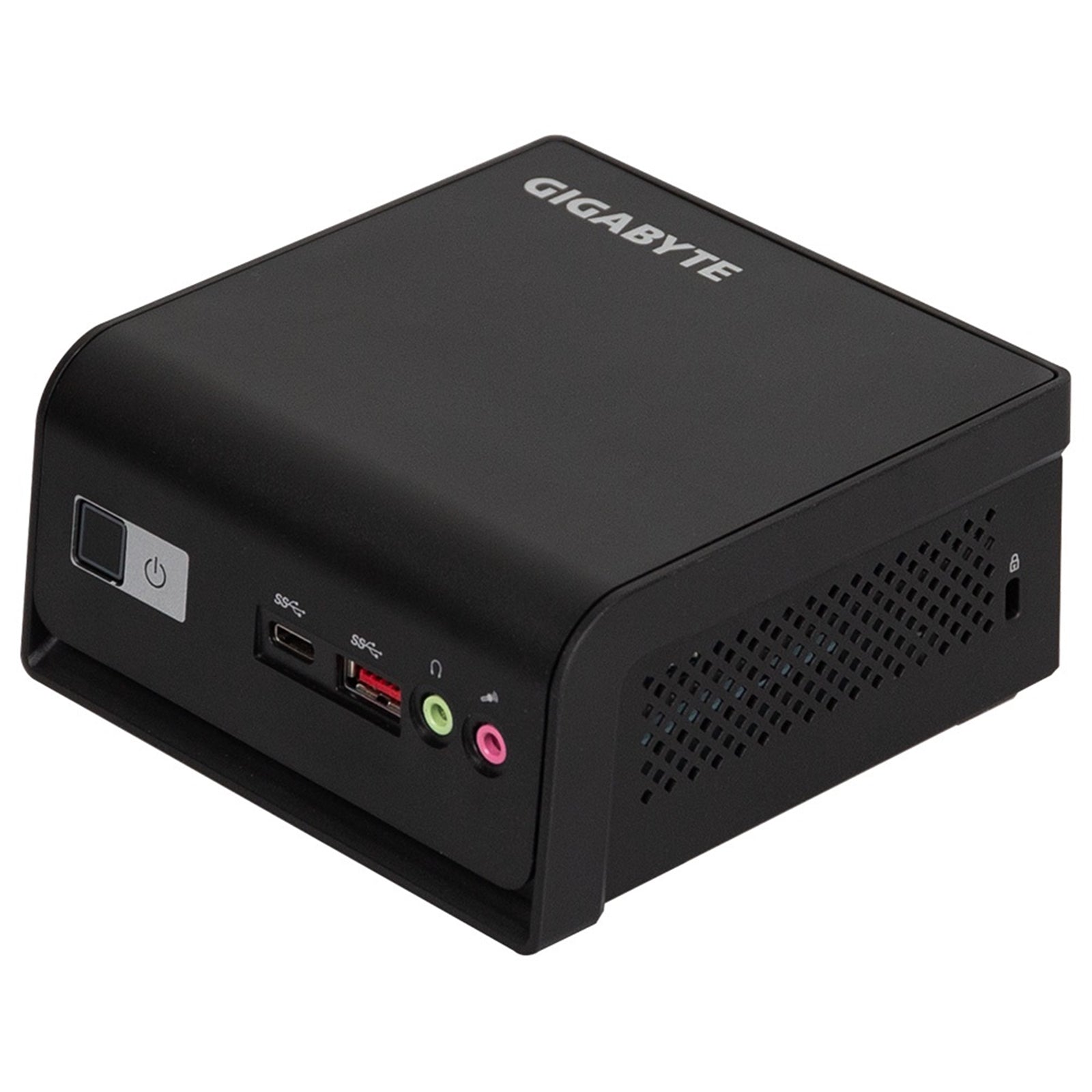

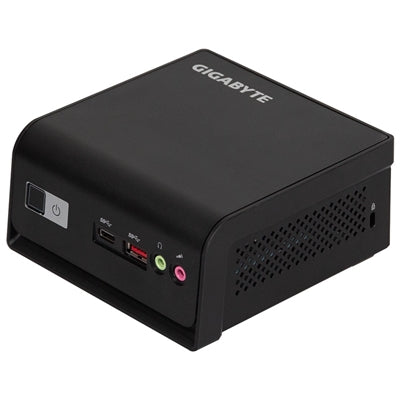

Gigabyte BRIX GB-BTIP-N150 Barebone Mini PC Kit

The Gigabyte BRIX GB-BTIP-N150 is a compact barebone PC kit measuring just 113 x 116.52 x 56.22 mm, designed for users who need desktop performance in a space-saving form factor. Powered by the Intel N150 processor with 4 cores reaching up to 3.6 GHz at 6W TDP, this mini PC platform delivers efficient computing for home office setups, media centers, and light productivity tasks.

Memory and Storage Configuration

This barebone kit features one DDR5 SO-DIMM slot supporting up to 16GB of RAM at 4800MHz, providing modern memory performance for multitasking. Storage flexibility includes two M.2-2280 slots (PCIe Gen 3x2), one M.2-2230 slot for the included Wi-Fi module, and a 2.5-inch SATA bay for traditional hard drives or SSDs, allowing multiple storage configurations to suit different needs.

Display and Graphics Capabilities

The Intel Graphics 24EUs integrated GPU supports triple display output: one HDMI 2.0 port delivering 4096x2160@60Hz, plus two USB Type-C ports with DisplayPort 1.4 Alt Mode supporting 3840x2160@60Hz each. This configuration enables multi-monitor setups for productivity or digital signage applications.

Connectivity Options

Networking includes Gigabit Ethernet via Realtek RTL8111H and wireless connectivity through the pre-installed AW-CB515NF module with Wi-Fi 5 (802.11ac) and Bluetooth 5.0. The front panel provides one USB 3.2 Gen2 Type-A port, one USB 3.2 Gen2 Type-C port with Alt Mode, plus headphone and microphone jacks. The rear I/O features HDMI output, RJ45 LAN, two USB 3.2 Gen2 Type-A ports, and one USB 3.2 Gen2 Type-C port with Alt Mode, all supporting transfer speeds up to 10Gb/s.

Mounting and Power

VESA mounting brackets support both 75 x 75 mm and 100 x 100 mm patterns, enabling monitor-back installation or wall mounting. The included 65W power adapter (19V/3.42A) provides adequate power for the system and connected peripherals. A Kensington lock slot offers physical security for commercial deployments.

Technical Specifications

• Processor: Intel N150
• Processor Cores: 4
• Memory Type: 1x DDR5
• Max Memory: 16GB
• Storage M.2 Slots: 2
• Storage 2.5 Inch Slots: 1
• VESA: Included

The system operates in temperatures from 0°C to +35°C and supports Windows 11 64-bit. Audio is handled by Realtek ALC897 codec. With its 108 x 103 mm motherboard and compact chassis, the BRIX GB-BTIP-N150 provides a customizable foundation for building a small form factor PC tailored to specific requirements.
