Gigabyte H610M H V3 DDR4 Motherboard - Intel LGA1700 Platform

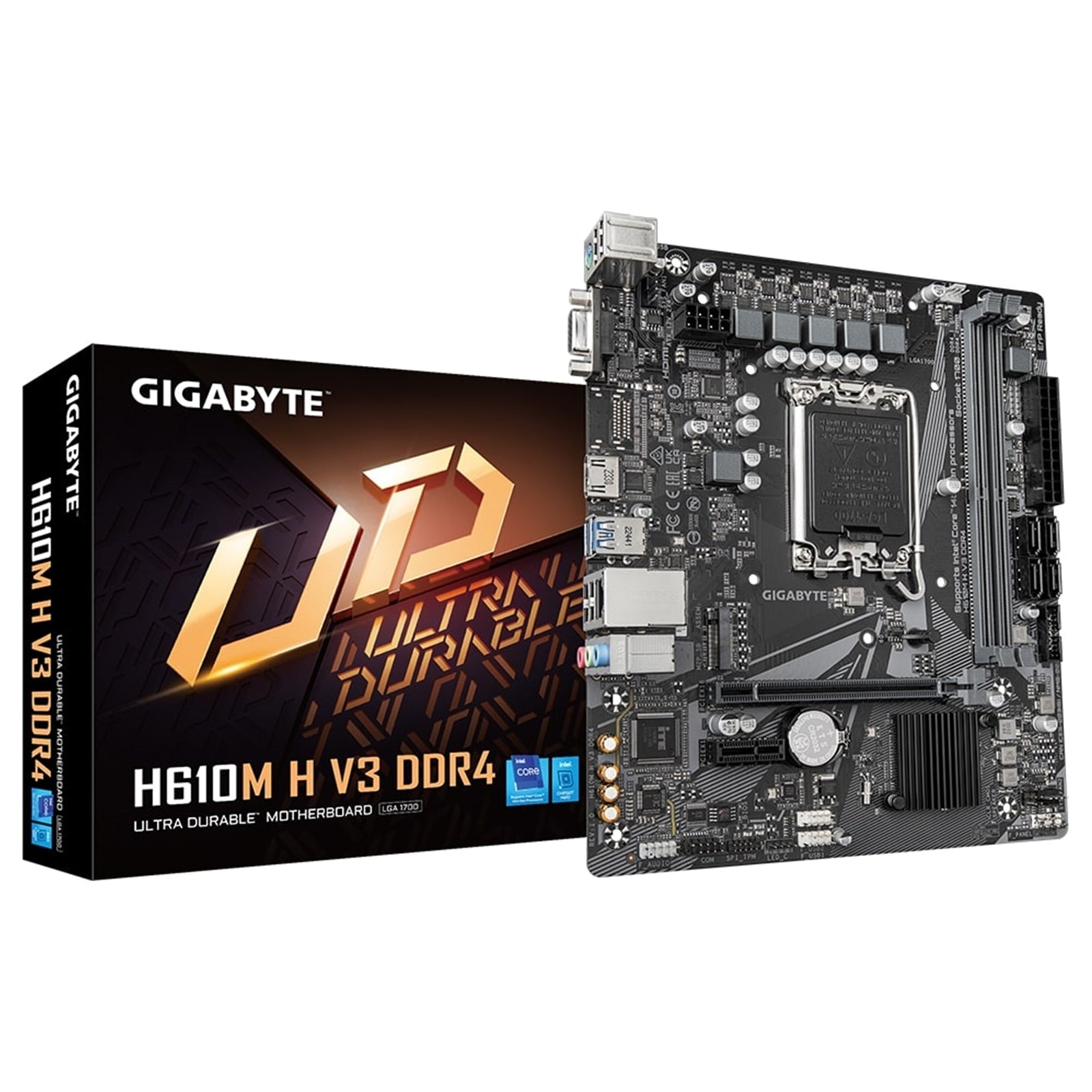

The Gigabyte H610M H V3 DDR4 (rev. 1.0) is a Micro-ATX motherboard designed for Intel LGA1700 socket processors. Supporting Intel Core 14th, 13th, and 12th generation CPUs, this board provides essential features for budget workstations and entry-level gaming builds.

Power Delivery and Stability

The 4+1+1 Phases Hybrid Digital VRM Design incorporates low RDS(on) MOSFETs and solid capacitors for consistent power delivery during CPU-intensive tasks. An 8-pin solid pin CPU power connector ensures improved current handling and reliable operation under sustained loads.

Memory and Storage Configuration

Dual-channel DDR4 memory support extends to 3200 MT/s across 2 DIMM slots, accommodating up to 64GB total capacity (32GB per slot). Storage connectivity includes 1x M.2 Socket 3 connector for NVMe PCIe 3.0 x4 SSDs (type 2280/2260) and 4x SATA 6Gb/s ports for additional drives.

Expansion and Connectivity

Expansion options include 1x PCIe 4.0 x16 slot with reinforced construction for graphics cards and 1x PCIe 3.0 x1 slot for additional peripherals. Realtek GbE LAN provides network connectivity with bandwidth management capabilities for optimized performance.

Display Outputs and Audio

Integrated graphics support delivers video output through 1x D-Sub port (1920x1200@60Hz) and 1x HDMI port (4096x2160@60Hz) for multi-display configurations. Realtek Audio CODEC with high-end audio capacitors and Audio Noise Guard provides clear audio output.

Cooling and Thermal Management

Smart Fan 6 technology manages system cooling through 3 PWM/DC fan headers, each supporting up to 24W (12V x 2A) with over-current protection. Fan curves can be configured based on 4 internal temperature sensors, with Fan Stop capability enabling silent operation below specified temperatures.

Durability and Features

Anti-Sulfur Resistor Design protects against chemical degradation, extending motherboard lifespan. The PCIe 4.0 Ready PCB ensures reliable data transmission for current and future components. Back panel I/O includes 2x USB 3.2 Gen 1 ports, 4x USB 2.0 ports, PS/2 port, and 3x audio jacks. Internal headers provide 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers, and RGB LED strip header.

BIOS and Software

The 128 Mbit AMI UEFI BIOS features Q-Flash for updates and Hybrid Cores Optimization profiles for Intel P-Core and E-Core configurations. GIGABYTE APP Center includes @BIOS, EasyTune, Smart Backup, and System Information Viewer. Compatible with Windows 11 and Windows 10 64-bit.

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel H610
• Form Factor: Micro ATX
• Memory Slots: DDR4 - 2 Slots
• M.2 Compatibility: PCIe / SATA
• USB C: No
