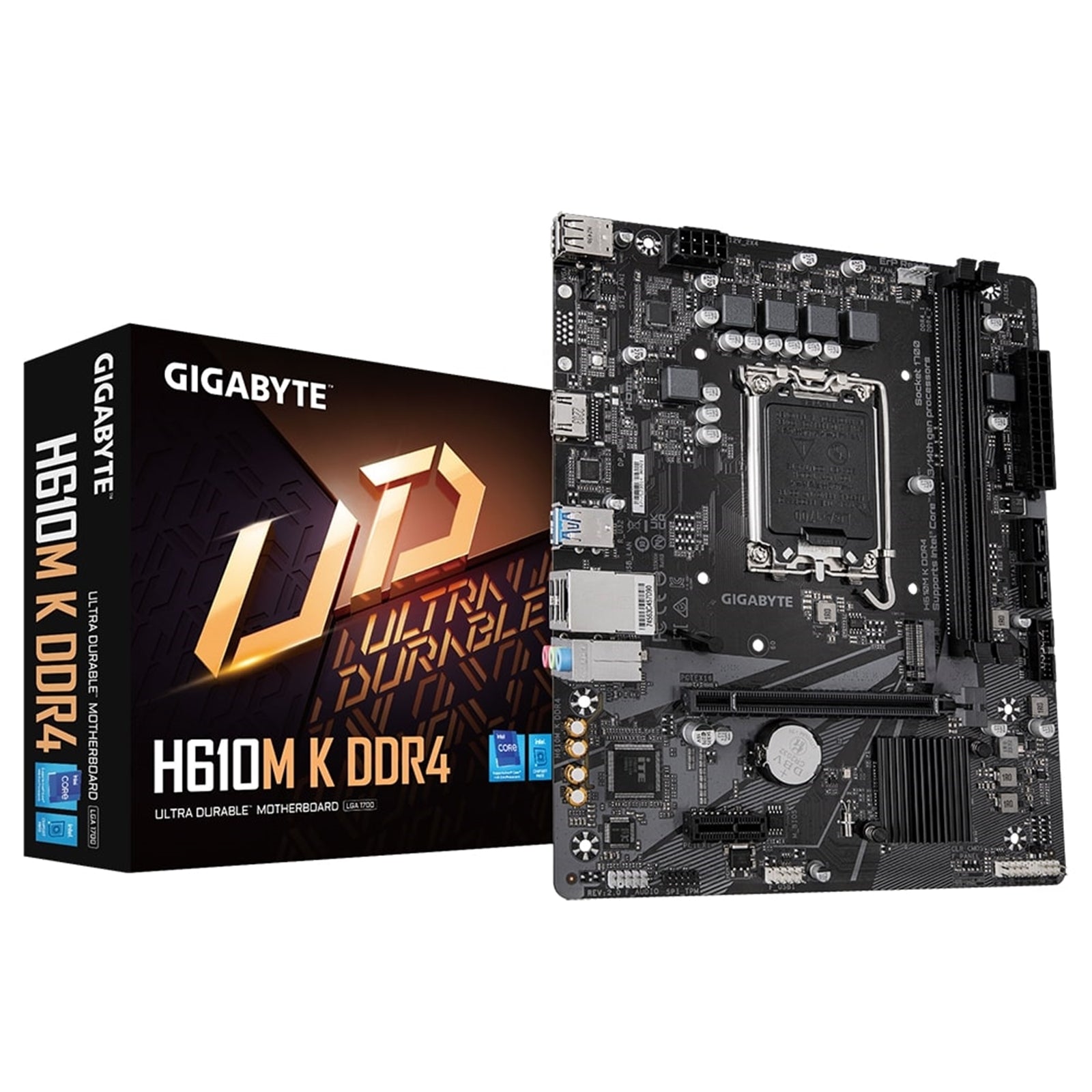

Gigabyte H610M K DDR4 Micro-ATX Motherboard for Intel LGA1700

The Gigabyte H610M K delivers reliable performance for Intel 12th, 13th, and 14th Generation processors in a compact Micro-ATX form factor. Built on the Intel H610 chipset, this motherboard provides essential features for budget-conscious builds without compromising on quality.

Intel LGA1700 Socket Compatibility

Compatible with Intel Core 14th, 13th, and 12th generation processors, including Pentium Gold and Celeron CPUs. The LGA1700 socket ensures broad processor support for current and future upgrades within the platform.

DDR4 Memory Support

Features dual-channel DDR4 architecture with 2 DIMM slots supporting up to 64GB total capacity. Memory speeds up to DDR4-3200 MT/s are supported, with XMP profile compatibility for easy overclocking. The board accepts both ECC unbuffered (operating in non-ECC mode) and standard non-ECC memory modules.

PCIe 4.0 and Storage Options

The primary PCIe x16 slot supports PCIe 4.0 for graphics cards, delivering maximum bandwidth for modern GPUs. Storage connectivity includes one M.2 Socket 3 connector supporting PCIe 3.0 x4 NVMe SSDs in 2280/2260 form factors, plus two SATA 6Gb/s ports for additional drives.

Connectivity and I/O

Equipped with Realtek GbE LAN featuring bandwidth management for optimized network performance. Rear panel includes HDMI supporting 4K resolution at 60Hz, two USB 3.2 Gen 1 ports, four USB 2.0 ports, and three audio jacks. Additional USB connectivity is available through internal headers.

Smart Fan 6 and Power Design

Smart Fan 6 technology provides multiple temperature sensors and hybrid fan headers with FAN STOP capability for silent operation during low loads. Solid plated 8-pin ATX 12V power connector ensures stable power delivery during demanding workloads.

Audio and Build Quality

Realtek audio codec with high-end audio capacitors delivers clear sound quality. Audio Noise Guard technology separates analog audio components from potential PCB-level interference. Anti-sulfur resistor design enhances long-term reliability in various environmental conditions.

BIOS and Software

AMI UEFI BIOS with Q-Flash support simplifies updates and configuration. GIGABYTE APP Center provides easy access to utilities including @BIOS, EasyTune, Smart Backup, and System Information Viewer. Pre-installed software includes Norton Internet Security and LAN bandwidth management tools.

PCIe 4.0 Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Chipset
Intel H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel H610
• Form Factor: Micro ATX
• Memory Slots: DDR4 - 2 Slots
• M.2 Compatibility: PCIe / SATA
• USB C: No
