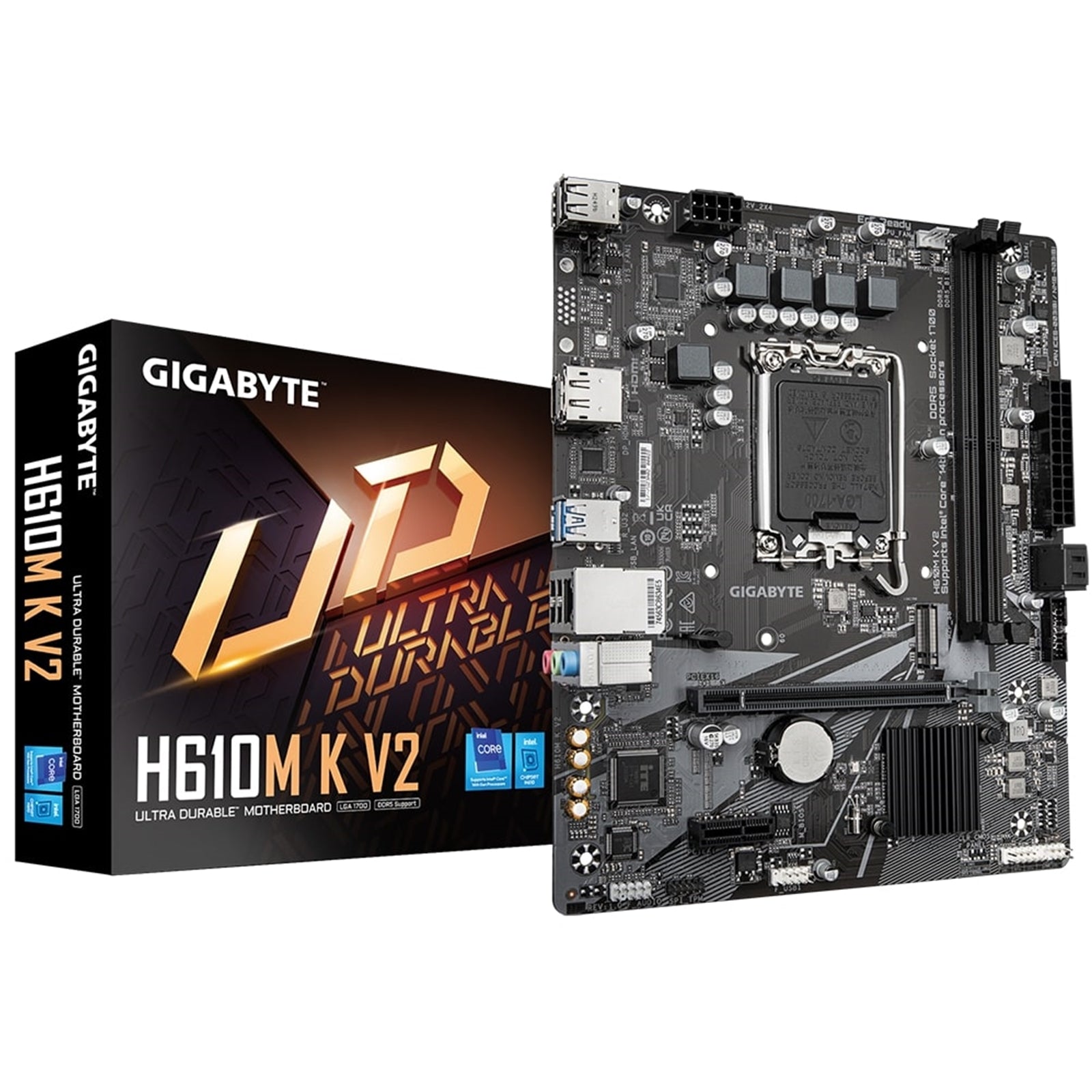

Gigabyte H610M K V2 DDR5 Micro ATX Motherboard

The Gigabyte H610M K V2 delivers reliable performance for Intel 12th, 13th, and 14th Generation processors in a compact Micro ATX form factor. Built on the Intel H610 chipset with LGA1700 socket compatibility, this motherboard provides essential features for budget-conscious PC builders without compromising on quality.

DDR5 Memory Architecture

Experience next-generation memory performance with dual-channel DDR5 support up to 128GB across 2 DIMM slots. The H610M K V2 supports DDR5 speeds up to 5600 MT/s with 14th Gen Core i9/i7 processors and 4800 MT/s with other compatible CPUs. XMP 3.0 capability enables easy memory overclocking for enhanced system performance.

PCIe 4.0 and Storage Flexibility

The motherboard features one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 expansion slot. Storage options include one M.2 Socket 3 connector supporting PCIe 3.0 x4 NVMe SSDs in 2280/2260 form factors, plus two SATA 6Gb/s ports for additional drives.

Display and Connectivity

Integrated graphics support includes HDMI 2.1 and DisplayPort 1.2 outputs, both capable of 4K resolution at 60Hz with HDCP 2.3. The Realtek GbE LAN chip provides reliable network connectivity with bandwidth management software for optimized network performance and reduced latency.

Ultra Durable Design

Gigabyte's Ultra Durable technology includes solid plated ATX 8-pin power connectors for stable power delivery during demanding workloads. Anti-sulfur resistors extend component lifespan in harsh environments, while high-quality audio capacitors and noise guard technology ensure clean audio output.

Smart Fan 6 Cooling Management

Advanced thermal control through Smart Fan 6 features multiple temperature sensors and hybrid fan headers with FAN STOP functionality. The system monitors CPU and system fan speeds, supports water cooling flow rate detection, and provides fan fail warnings for proactive system maintenance.

Comprehensive I/O

Back panel connectivity includes two USB 3.2 Gen 1 ports, four USB 2.0 ports, HDMI, DisplayPort, GbE LAN, and three audio jacks. Internal headers support additional USB 3.2 Gen 1 and USB 2.0 expansion, plus front panel audio and TPM 2.0 module compatibility.

GIGABYTE APP Center

Manage your system efficiently with GIGABYTE APP Center utilities including @BIOS for easy BIOS updates, EasyTune for performance optimization, Smart Backup for data protection, and Q-Flash for BIOS flashing without entering the operating system. Windows 11 and Windows 10 64-bit support ensures compatibility with modern operating systems.

Gigabyte PCIe 4.0 Design, Gen3 x4 M.2 ,GbE LAN ,Anti-Sulfur Resistor, Smart Fan 6

EXTREME MEMORY
GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Ultra Durable

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

Key Features
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs?
GbE LAN with Bandwidth Management?
NVMe PCIe 3.0 x4 M.2?
High Quality Audio Capacitors and Audio Noise Guard?
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP?
GIGABYTE APP Center, Simple and Easy Use?
Anti-Sulfur Resistors Design?

Specification

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
* Please refer to "CPU Support List" for more information.
L3 cache varies with CPU

Chipset
Intel H610 Express Chipset

Memory
14th and 13th Generation Intel Core i9/i7 Pocessors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors

USB
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel H610
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe
• USB C: No
