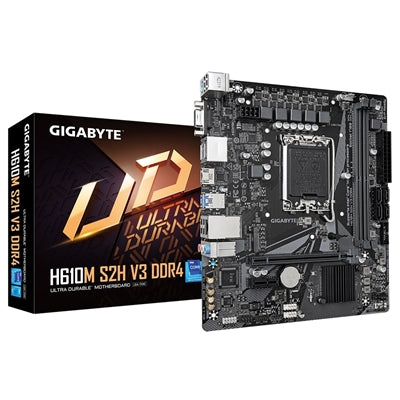

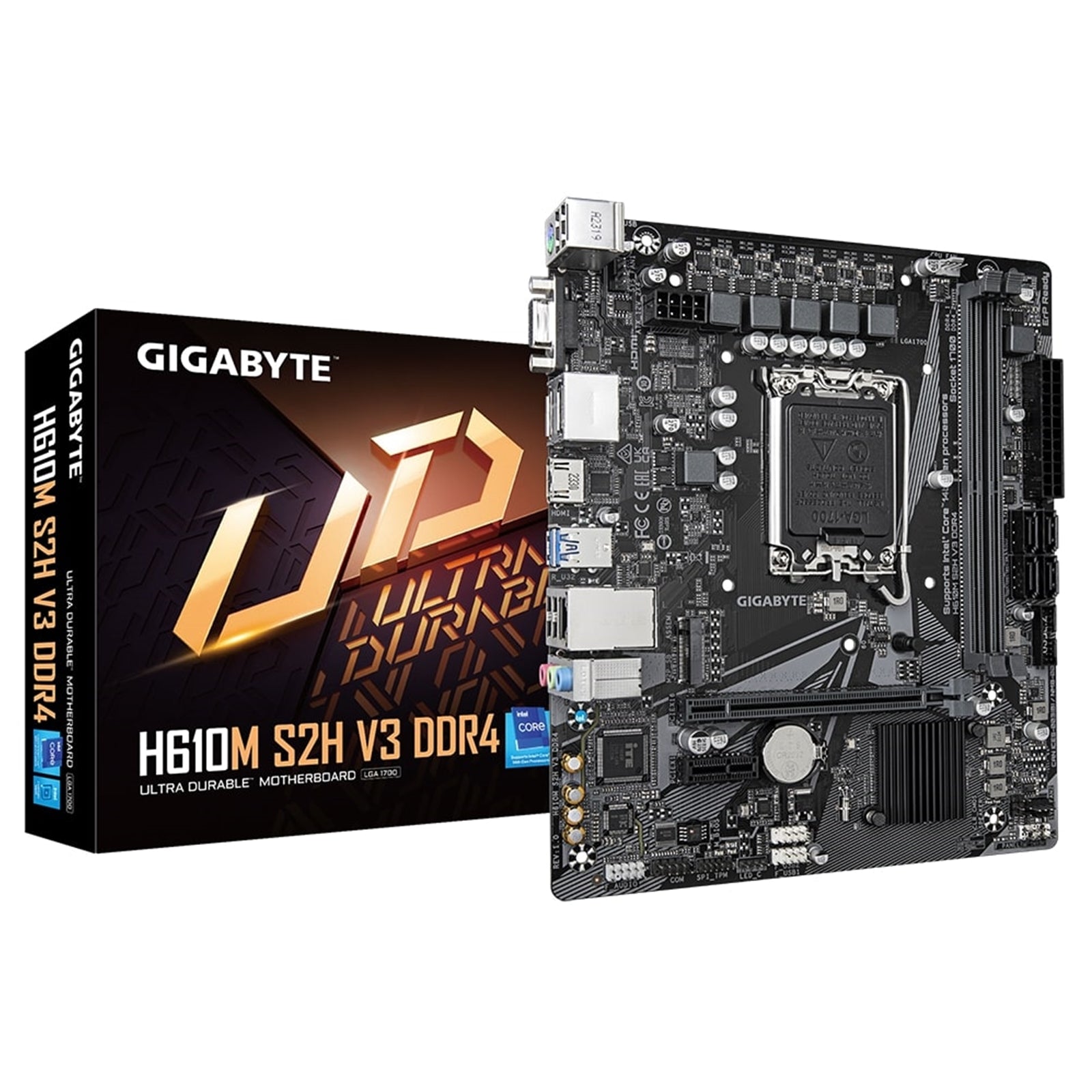

Gigabyte H610M S2H V3 DDR4 Micro-ATX Motherboard

The Gigabyte H610M S2H V3 DDR4 motherboard delivers reliable performance for Intel 12th, 13th, and 14th Generation processors through its LGA1700 socket. This Micro-ATX motherboard combines essential features with Gigabyte's Ultra Durable design philosophy, making it suitable for home and office computing builds.

Power Delivery and Processor Support

Built with a 4+1+1 phases hybrid digital VRM design, this motherboard provides stable power delivery to Intel Core, Pentium Gold, and Celeron processors. The 8-pin solid pin CPU power connector ensures consistent power supply during demanding workloads. Low RDS(on) MOSFETs and solid capacitors improve transient response and minimize oscillation for system stability.

Memory Configuration

The H610M S2H V3 supports up to 64GB of DDR4 memory across 2 DIMM slots, with single DIMM capacity of 32GB. Compatible with DDR4-3200/3000/2933/2666/2400/2133 MT/s memory modules, the dual-channel architecture accommodates both ECC and non-ECC unbuffered memory. XMP profile support enables easy memory overclocking for enhanced performance.

Storage and Expansion

Storage options include one M.2 Socket 3 connector supporting PCIe 3.0 x4 NVMe SSDs in 2280/2260 form factors, plus four SATA 6Gb/s ports for traditional drives. The PCIe 4.0 x16 slot provides bandwidth for modern graphics cards, while an additional PCIe 3.0 x1 slot offers expansion flexibility.

Multi-Display Capability

Integrated graphics support includes three simultaneous display outputs: one D-Sub port (1920x1200@60Hz), one HDMI port (4096x2160@60Hz), and two DisplayPorts (4096x2304@60Hz). This triple-display configuration suits productivity workstations and multi-monitor setups without requiring a dedicated graphics card.

Connectivity and Cooling

Realtek GbE LAN with bandwidth management software ensures network stability. USB connectivity includes four USB 3.2 Gen 1 ports and eight USB 2.0 ports across back panel and internal headers. Smart Fan 6 technology manages three PWM/DC fan headers with individual control curves, supporting up to 24W per header with over-current protection and fan-stop functionality.

Audio and Build Quality

Realtek audio codec with high-end capacitors and audio noise guard delivers clear sound for 2/4/5.1/7.1-channel configurations. Anti-sulfur resistor design extends component lifespan by protecting against atmospheric contamination. The board measures 22.3cm x 19.3cm in standard Micro-ATX format.

BIOS and Software

The 128Mbit AMI UEFI BIOS includes Q-Flash for easy updates. Bundled software includes @BIOS, EasyTune, Smart Backup, and LAN bandwidth management tools. Compatible with Windows 10 and Windows 11 64-bit operating systems.

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel H610
• Form Factor: Micro ATX
• Memory Slots: DDR4 - 2 Slots
• M.2 Compatibility: NVMe
• USB C: No
