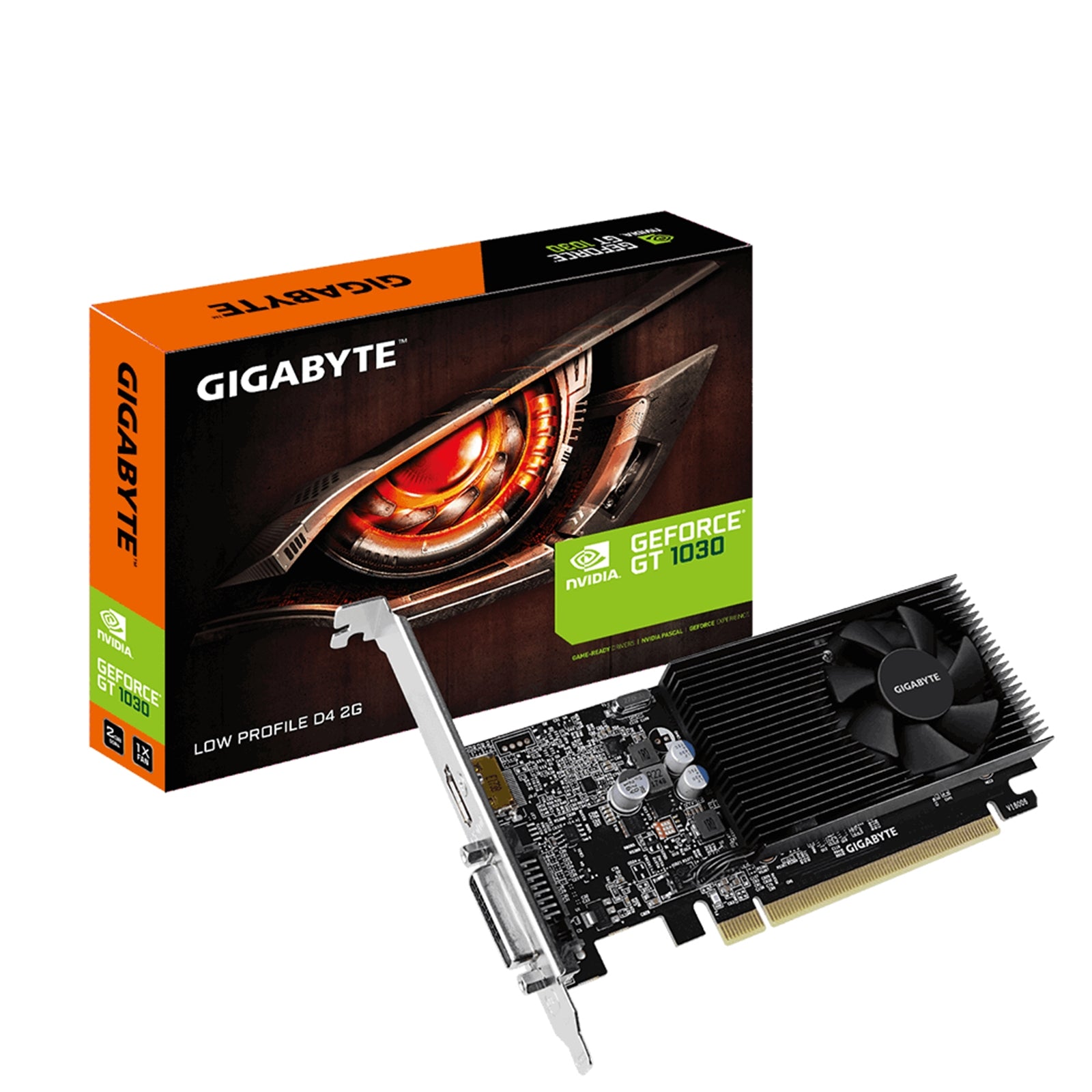

Gigabyte GeForce GT 1030 Low Profile Graphics Card

The Gigabyte GeForce GT 1030 delivers reliable graphics performance in a compact low profile design. With 2GB DDR4 memory and 384 CUDA cores, this graphics card fits small form factor builds without requiring additional power connectors.

Compact Design for Space-Constrained Systems

Measuring just 149.9mm in length with a low profile form factor, this GT 1030 fits into compact cases and HTPCs where full-size graphics cards cannot. The single fan cooling system keeps the card running efficiently while maintaining a quiet operation. No additional power connector is required - the card draws power directly from the PCIe slot, requiring only a 300W power supply.

Performance Specifications

The GeForce GT 1030 chipset features a boost clock of 1417 MHz in OC Mode and 1379 MHz in Gaming Mode. The 2GB DDR4 memory runs at 2100 MHz across a 64-bit interface, providing sufficient bandwidth for everyday computing tasks, light gaming, and media playback. The card supports DirectX 12 and OpenGL 4.5 for modern software compatibility.

Display Connectivity

Equipped with one DVI-D port and one HDMI 2.0b port, the GT 1030 supports digital resolutions up to 4096x2160 at 60Hz. The multi-view capability allows connection of up to two displays simultaneously. A low profile bracket with HDMI and DVI outputs is included for installation in slim cases.

Technical Specifications

• GPU: NVIDIA GeForce GT 1030
• Memory: 2GB DDR4, 64-bit interface, 2100 MHz
• Clock Speeds: 1417 MHz boost (OC Mode), 1177 MHz base (OC Mode)
• CUDA Cores: 384
• Interface: PCI-E 3.0 x16
• Outputs: 1x DVI-D, 1x HDMI 2.0b
• Cooling: Single fan cooling system
• Power: No external connector required, 300W PSU minimum
• Dimensions: 68.9 x 14.7 x 149.9 mm

Additional Features

The AORUS Graphics Engine software enables one-click overclocking for users seeking additional performance. The card supports both OC Mode and Gaming Mode profiles for different performance requirements. The low profile bracket included in the package ensures compatibility with various case configurations.

GT 1030 Low Profile D4 2G

Features

Powered by GeForce GT 1030
Integrated with 2GB DDR4 64bit memory
Low profile design with 150 mm card length
One-click overclocking via AORUS Graphics Engine

GPU
GeForce GT 1030

Interface
PCI-E 3.0 x 16

Processor Technology
N/A

Graphics Core Clock
Boost: 1417 MHz / Base: 1177 MHz in OC Mode
Boost: 1379 MHz / Base: 1151 MHz in Gaming Mode

Memory Clock
2100 MHz

Memory Amount
2GB

Memory Type
DDR4

Memory Interface
64-bit

Max Resolution
Digital: 4096x2160

SLI/CrossFire Ready
No

I/O Connections
1 x DVI-D
1 x HDMI-2.0b (Max Resolution: 4096x2160 @60Hz)

Cooling System
Single Fan Cooling System

Power Connection
None

Minimum Power Requirements
300W

Dimensions (W x H x D)
68.9 x 14.7 x 149.9 mm

Accessories Included
1 x HDMI + DVI low profile bracket

Additional Features
CUDA Cores: 384
Multi-View: 2
Form Factor: Low Profile
DirectX: 12
OpenGL: 4.5

• Chipset Manufacturer: Nvidia
• Chipset Series: GeForce GT
• Chipset: GT1030
• Form Factor: 1x ATX (Low Profile Option)
• Memory: 2GB
• Fans: 1
• RGB: No
