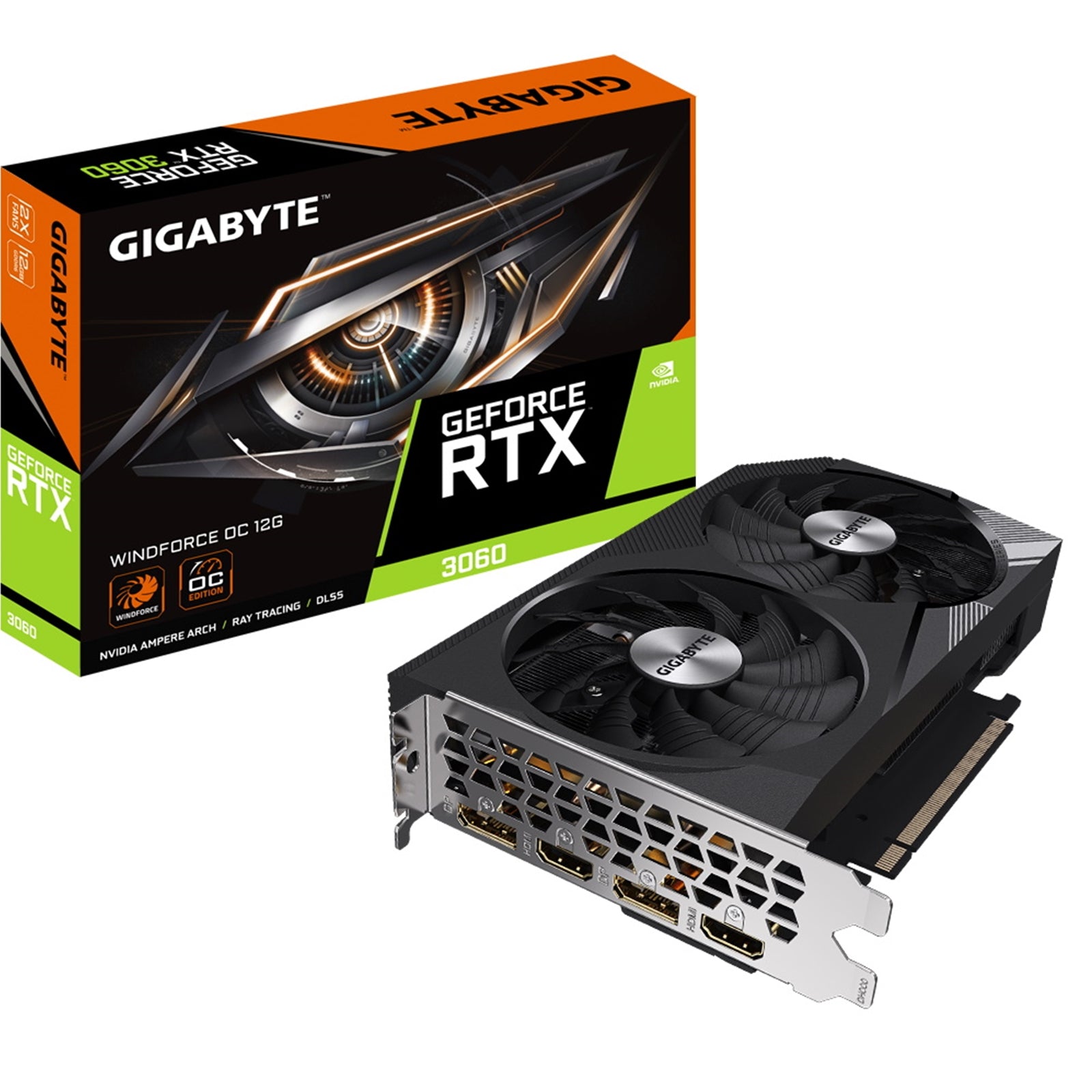

Gigabyte GeForce RTX 3060 WINDFORCE OC 12GB Graphics Card

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.

Factory Overclocked Gaming Performance

The Gigabyte RTX 3060 WINDFORCE OC features a factory overclock to 1792 MHz, delivering 15MHz above reference speeds. Equipped with 12GB GDDR6 memory across a 192-bit interface and 3584 CUDA cores, this graphics card provides 360 GB/s memory bandwidth for smooth 1080p and 1440p gaming. NVIDIA Ampere architecture powers 2nd generation RT cores for real-time ray tracing and 3rd generation Tensor cores for DLSS AI acceleration.

WINDFORCE 2X Dual-Fan Cooling System

Dual 90mm fans utilize alternate spinning technology to minimize turbulent airflow and maximize cooling efficiency. Unique blade fans feature triangular edges and 3D stripe curves for enhanced airflow. Three composite copper heat pipes make direct GPU contact for optimal heat transfer while simultaneously cooling VRAM through an integrated metal plate. The 3D Active Fan system stops fans during low-load scenarios for silent operation. Graphene nano lubricant extends fan lifespan by 2.1 times versus conventional bearings.

Compact 198mm Form Factor

Measuring just 198 x 121 x 39mm, this graphics card fits small form factor cases without compromising performance. The screen cooling design channels airflow through an extended heatsink for improved heat dissipation. A reinforced protection backplate adds structural integrity and a clean aesthetic finish.

Technical Specifications

• GPU: NVIDIA GeForce RTX 3060
• Memory: 12GB GDDR6, 15000 MHz, 192-bit bus
• Core Clock: 1792 MHz boost (Reference: 1777 MHz)
• CUDA Cores: 3584
• Max Resolution: 7680 x 4320
• Interface: PCI-E 4.0 x16
• Power: 8-pin connector, 550W PSU recommended
• Outputs: 2x DisplayPort 1.4a, 2x HDMI 2.1
• Dimensions: 198 x 121 x 39mm
• DirectX: 12 Ultimate | OpenGL: 4.6

Enhanced Power Delivery and Reliability

Advanced power phase design maintains lower MOSFET temperatures with over-temperature protection and load balancing. Ultra Durable certified chokes and capacitors ensure long-term stability. Fully automated PCB production eliminates sharp solder protrusions for safer installation.

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX3060
• Form Factor: 2x ATX
• Memory: 12GB
• Fans: 2
• RGB: No
