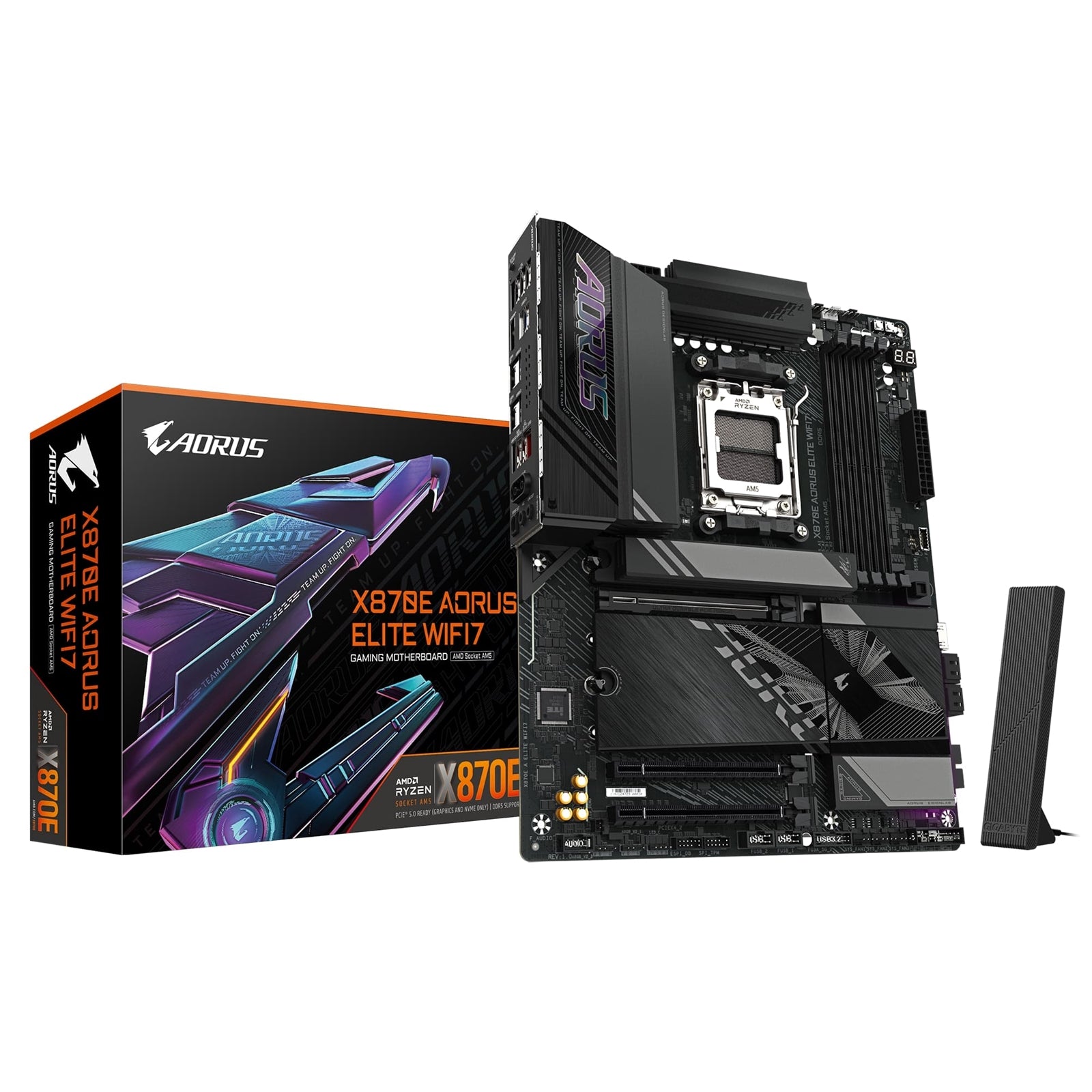

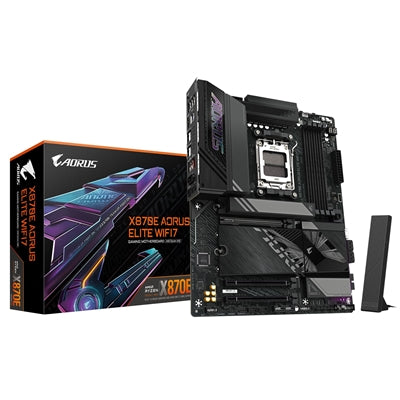

Gigabyte X870E AORUS ELITE WIFI7 AMD AM5 Motherboard

The Gigabyte X870E AORUS ELITE WIFI7 delivers high-performance computing for AMD Ryzen 9000, 8000, and 7000 series processors. This ATX motherboard combines advanced connectivity, robust power delivery, and efficient thermal management in a feature-rich platform designed for gaming and content creation.

Advanced Power Delivery and Memory Support

Equipped with a digital twin 16+2+2 phase VRM solution, this motherboard provides consistent power delivery for demanding workloads and overclocking. The four DDR5 DIMM slots support up to 256GB of memory with speeds reaching 8200 MT/s (OC), featuring AMD EXPO and XMP profile compatibility for simplified memory tuning.

Next-Generation Storage and Expansion

Four M.2 sockets deliver exceptional storage flexibility, with three supporting PCIe 5.0 x4 for maximum bandwidth. The primary PCIe 5.0 x16 slot features Ultra Durable PCIe Armor with 10X strength reinforcement, ensuring secure graphics card installation. Additional PCIe 4.0 x4 and PCIe 3.0 x4 slots provide expansion options for capture cards, sound cards, and other peripherals.

Comprehensive Connectivity

Dual USB4 Type-C ports with DisplayPort Alt Mode support data transfer speeds up to 40Gbps and 4K display output at 240Hz. The Realtek 2.5GbE LAN controller ensures low-latency networking, while WiFi 7 (802.11be) with directional ultra-high gain antenna delivers wireless speeds exceeding previous standards. Bluetooth 5.4 support completes the wireless connectivity suite.

Efficient Thermal Design

VRM Thermal Armor with fins-array heatsinks and M.2 Thermal Guard L with backplate protection maintain optimal operating temperatures under sustained loads. The 6-layer server-grade PCB with 2X copper enhancement improves thermal dissipation and power delivery efficiency, while the 56% lower dissipation factor enhances signal integrity for high-frequency operation.

User-Friendly Features

EZ-Latch Plus provides tool-free installation for PCIe cards and M.2 drives, while the WIFI EZ-Plug simplifies antenna installation. The Sensor Panel Link onboard video port enables direct connection to in-chassis monitoring panels. Q-Flash Plus allows BIOS updates without CPU or memory installation, and the pre-installed I/O shield streamlines system assembly.

Premium Audio and Display Options

The Realtek ALC1220 codec with audiophile-grade capacitors delivers high-definition 7.1-channel audio with S/PDIF optical output. Integrated graphics support includes one HDMI 2.1 port (4K@60Hz) and dual USB4 ports with DisplayPort output (4K@240Hz), enabling quad-display configurations with compatible AMD Ryzen processors featuring Radeon Graphics.

Technical Specifications

Socket: AMD AM5
Chipset: AMD X870E
Form Factor: ATX (30.5cm x 24.4cm)
Memory: 4x DDR5 DIMM, up to 256GB, 8200 MT/s (OC)
Storage: 4x M.2 (3x PCIe 5.0, 1x PCIe 4.0), 4x SATA 6Gb/s
Network: 2.5GbE LAN, WiFi 7, Bluetooth 5.4
USB: 2x USB4 Type-C, USB 3.2 Gen 2x2, multiple USB 3.2/2.0 ports
Audio: Realtek ALC1220, 7.1-channel HD audio

Compatible with Windows 11 64-bit and includes GIGABYTE Control Center software for system monitoring and customization. RAID 0/1/5/10 support available for NVMe storage and RAID 0/1/10 for SATA devices.
