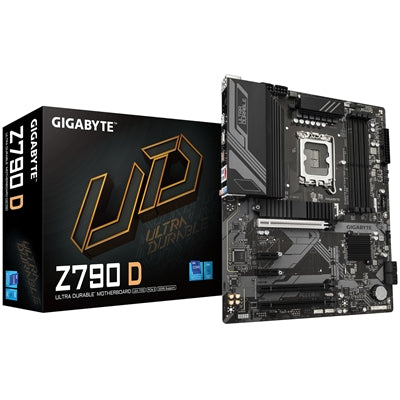

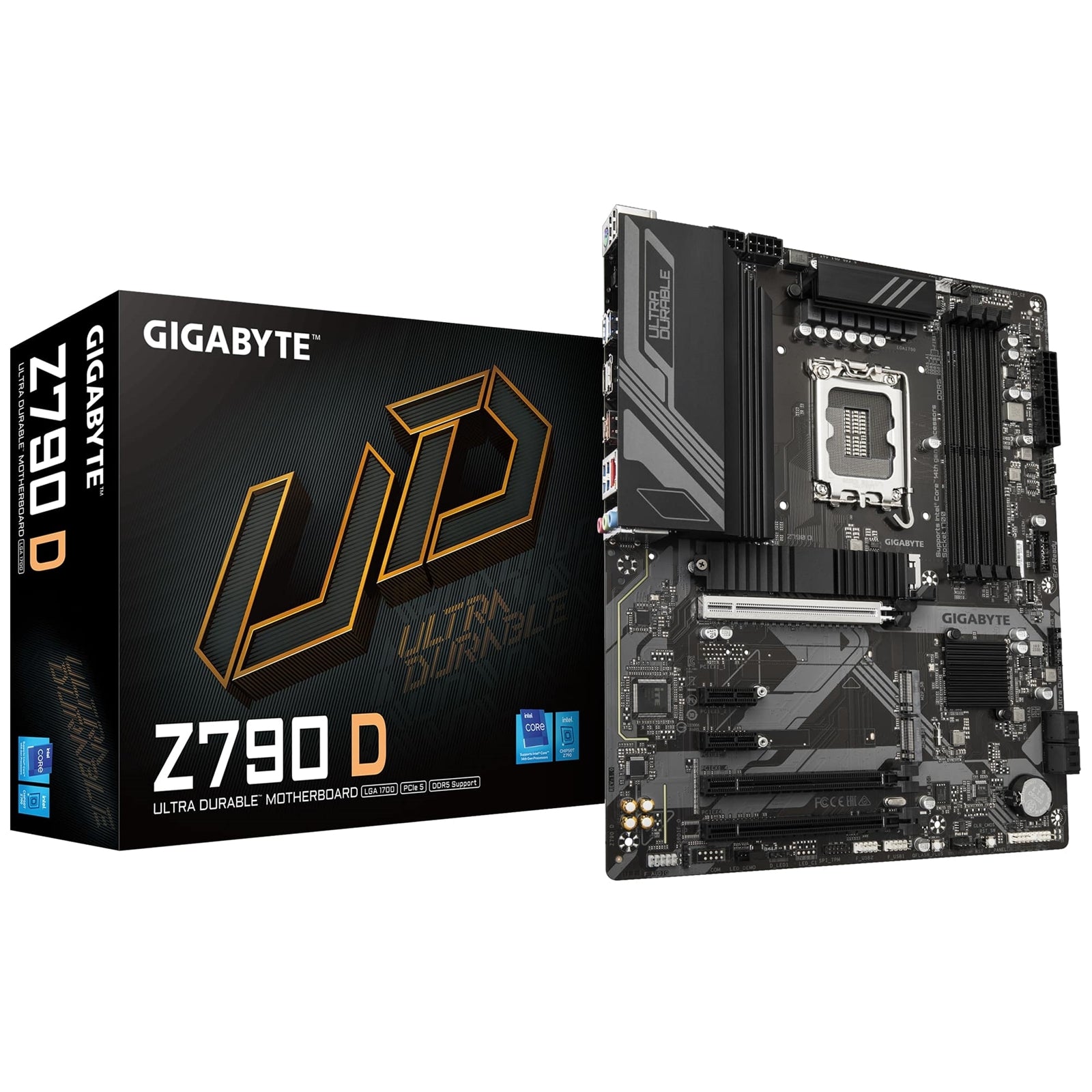

Gigabyte Z790 D Ultra Durable Motherboard - LGA1700 Socket

The Gigabyte Z790 D (rev. 1.0) delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a feature-rich ATX platform. Built with a twin 12+1+1 phase digital VRM solution and enhanced thermal design, this motherboard provides stable power delivery for demanding workloads and gaming sessions.

DDR5 Memory Support and Expansion

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 7600MHz and beyond through XMP 3.0 overclocking. The dual-channel architecture accommodates both ECC and non-ECC unbuffered memory modules, providing flexibility for various build configurations.

Storage and Connectivity Options

Three M.2 sockets deliver PCIe 4.0 x4 connectivity for high-speed NVMe storage, complemented by four SATA 6Gb/s ports. M.2 Thermal Guard technology maintains optimal temperatures during sustained workloads. The PCIe 5.0 x16 slot with EZ-Latch quick-release design simplifies graphics card installation and removal.

Network and Display Capabilities

Realtek 2.5GbE LAN provides enhanced network bandwidth for online gaming and large file transfers. Integrated graphics support includes one HDMI port (4096x2160@60Hz) and one DisplayPort (4096x2304@60Hz) for multi-monitor configurations. Rear USB-C 10Gb/s connectivity joins multiple USB 3.2 Gen 2 and Gen 1 ports for peripheral expansion.

Thermal Management and Smart Fan 6

Enlarged MOSFET heatsinks dissipate heat from the VRM components, while Smart Fan 6 technology offers precise control over cooling performance. Six fan headers support PWM and DC fans with up to 24W output per header. Customizable fan curves with seven control points allow fine-tuning between silent operation and maximum cooling through both slope and stair modes.

BIOS Features and User-Friendly Design

Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card components. The UC BIOS interface provides intuitive navigation with nine customizable quick-access slots in Easy Mode. PerfDrive settings optimize system performance based on your cooling configuration, while fan curve profiles save directly to BIOS ROM.

Audio and Additional Features

Realtek audio codec with high-end capacitors and Audio Noise Guard delivers 7.1-channel sound with reduced interference. Internal headers include addressable LED strip connectors, Thunderbolt add-in card support, and a Trusted Platform Module header. RAID support spans levels 0, 1, 5, and 10 for both NVMe and SATA storage devices.

ATX form factor measures 30.5cm x 24.4cm, compatible with Windows 11 and Windows 10 64-bit operating systems.
