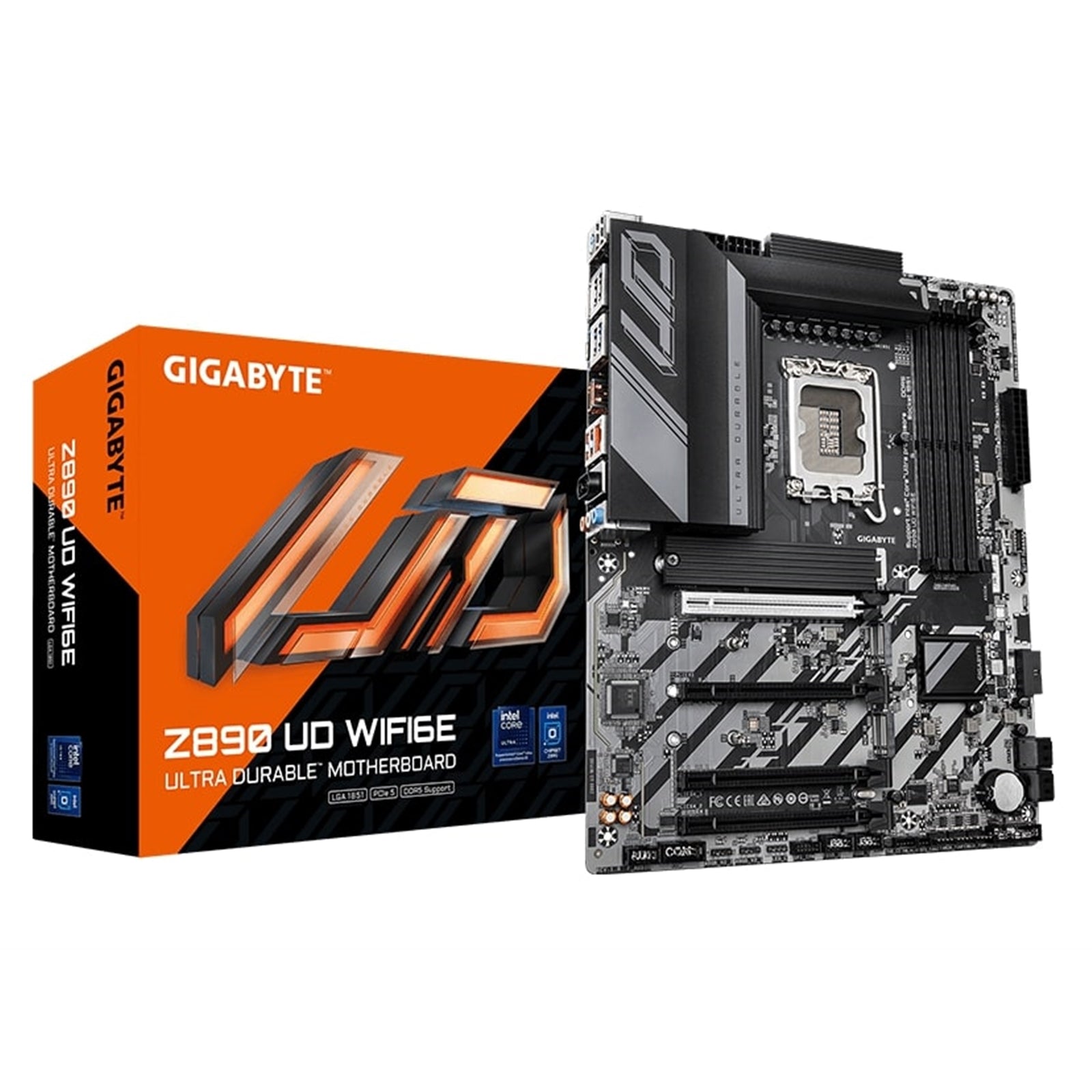

Gigabyte Z890 UD WiFi 6E Motherboard - Intel LGA1851 Platform

The Gigabyte Z890 UD motherboard delivers advanced performance for Intel Core Ultra Series 2 processors with the LGA1851 socket. Built on the Intel Z890 chipset, this ATX motherboard combines robust power delivery, high-speed connectivity, and AI-enhanced features for gaming and productivity builds.

DDR5 Memory Performance

Four DDR5 DIMM slots support up to 256GB of system memory with overclocking speeds reaching 8800MT/s. The D5 Bionic Corsa technology optimizes memory performance through AI-driven tuning, while XMP and CUDIMM module support ensures broad compatibility with high-performance memory kits. Dual-channel architecture maximizes bandwidth for demanding applications.

Digital Twin VRM & Thermal Management

The digital twin 12+1+2 phase VRM solution provides stable power delivery for Intel Core Ultra processors. VRM Thermal Armor Advanced features three times larger surface area for enhanced heat dissipation. Three M.2 slots include dedicated thermal guards, with the primary M.2A_CPU slot supporting PCIe 5.0 x4 for next-generation NVMe SSDs.

High-Speed Connectivity

USB4 Type-C port delivers 40Gbps transfer speeds with DisplayPort Alt Mode support for 4K@144Hz displays. Additional connectivity includes USB 3.2 Gen 2, multiple USB 3.2 Gen 1 ports, and legacy USB 2.0 headers. Dual video outputs via DisplayPort and USB-C support integrated graphics with DisplayPort 2.1 compatibility.

Networking & Wireless

Realtek 2.5GbE LAN provides wired network speeds up to 2.5Gbps, while WiFi 6E (802.11ax) with dedicated 6GHz band support enables wireless speeds up to 2.4Gbps. Bluetooth 5.3 extends range four times over previous generations. Dual SMA antenna connectors ensure reliable wireless performance.

Expansion & Storage

PCIe 5.0 x16 slot accommodates the latest graphics cards, complemented by three additional PCIe 4.0 slots. Storage options include three M.2 sockets (one PCIe 5.0, two PCIe 4.0) and four SATA 6Gb/s ports with RAID 0/1/5/10 support. EZ-Latch design simplifies graphics card installation and removal.

AI-Enhanced Features

AORUS AI SNATCH provides automatic overclocking through AI models, while AI Perfdrive delivers customized BIOS profiles. HyperTune BIOS uses AI-driven optimization for system tuning. The WIFI EZ-Plug adapter simplifies antenna installation with integrated connectors.

User-Friendly Design

UC BIOS features multi-theme support, AIO fan control, and Q-Flash Auto Scan for simplified BIOS updates. EZ Debug Zone centralizes diagnostic LEDs and control buttons. Q-Flash Plus enables BIOS updates without CPU installation. GIGABYTE Control Center unifies system management, RGB Fusion controls, and hardware monitoring through HWiNFO integration.

• Socket: 1851
• CPU Compatibility: Intel Ultra
• Chipset: Intel Z890
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4
• USB C: Yes
