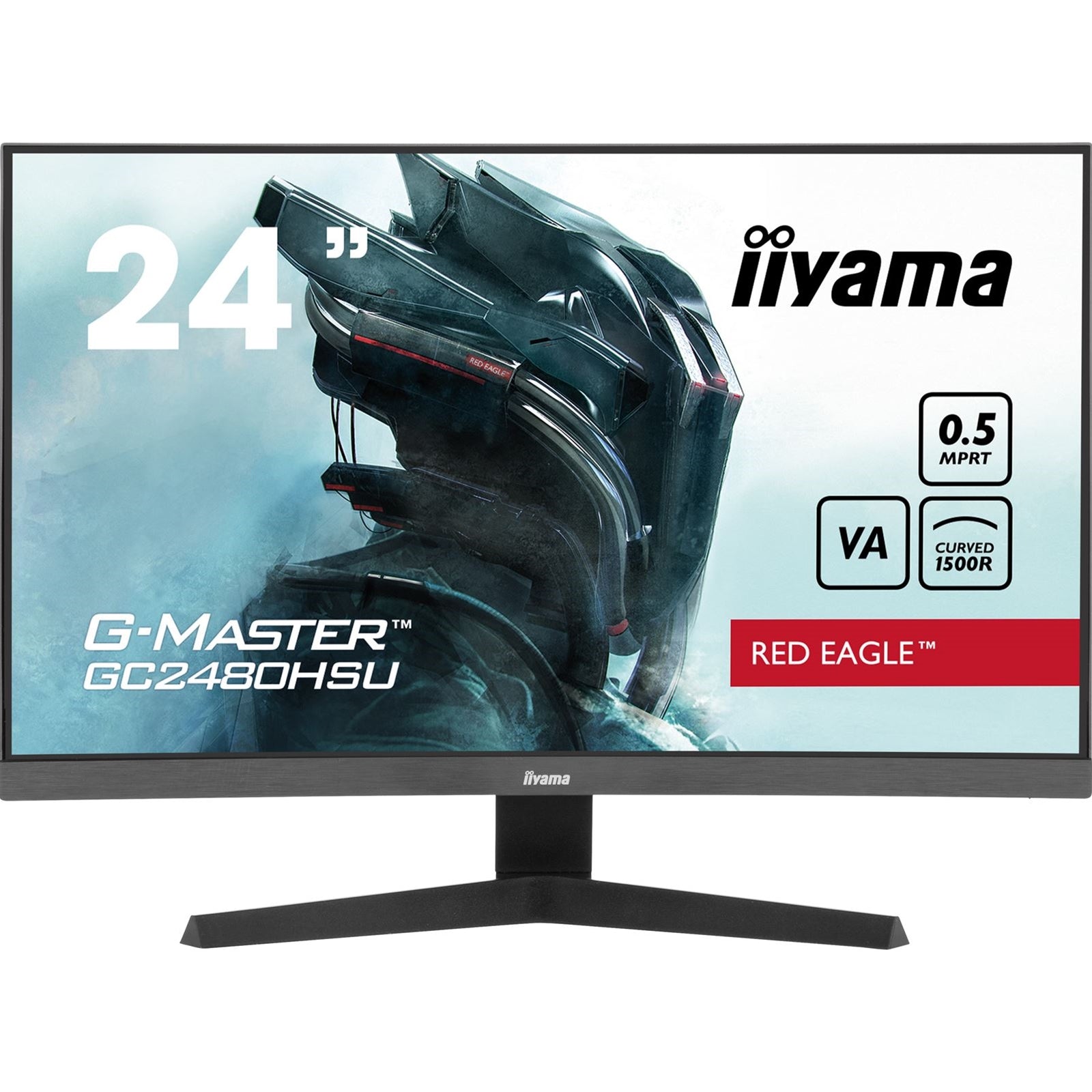

iiyama G-Master GC2480HSU-B1 Red Eagle Curved Gaming Monitor

The iiyama G-Master GC2480HSU-B1 Red Eagle delivers immersive gaming with its 23.6-inch curved VA panel. The 1500R curvature matches the natural curve of the human eye, providing a more realistic viewing experience that draws you into the action.

High-Performance Display Specifications

This monitor features a 180Hz refresh rate combined with 0.5ms MPRT response time, ensuring smooth, fluid gameplay with minimal motion blur. The Full HD 1920x1080 resolution on a VA panel delivers superior image quality with 3000:1 static contrast ratio and 96% sRGB color coverage. With 300 cd/m² brightness and 178°/178° viewing angles, the display maintains consistent color accuracy from any position.

AMD FreeSync Technology

AMD FreeSync eliminates screen tearing and stuttering by synchronizing the monitor's refresh rate with your graphics card. This adaptive sync technology ensures artifact-free performance across varying framerates, giving you a competitive edge in fast-paced gaming scenarios.

Black Tuner Function

The Black Tuner feature adjusts brightness levels in dark scenes, revealing details that would otherwise remain hidden in shadows. This gives you a tactical advantage by helping you spot enemies earlier in low-light gaming environments.

Eye Comfort Features

Extended gaming sessions are supported by flicker-free technology and a blue light reducer function. These features substantially reduce eye strain and fatigue during prolonged use, protecting your vision without compromising image quality.

Connectivity and Audio

The monitor includes 2x HDMI 2.0 ports, 1x DisplayPort 1.4, and a 2-port USB 2.0 hub for peripheral connectivity. Built-in 2x2W speakers provide audio output, while the headphone jack allows for private listening. HDCP support ensures compatibility with protected content.

Gaming Modes and Customization

Choose from predefined gaming modes optimized for FPS and strategy games, or create and save your own custom settings. The OSD menu offers extensive control over picture adjustment, color settings, and display preferences in 11 languages.

Design and Mounting

The matte black finish complements any gaming setup. The stand offers tilt adjustment (22° up, 4° down), while 100x100mm VESA compatibility enables wall or arm mounting. The monitor measures 535.5 x 394.5 x 202mm and weighs 3.8kg without the stand.

Energy Efficiency

Rated at Energy Class E under EU 2017/1369 regulations, the monitor consumes just 21W during typical operation, 0.5W in standby, and 0.3W when off. It meets CE, TUV-Bauart, RoHS, ErP, and REACH compliance standards.

Technical Specifications

DISPLAY CHARACTERISTICS

Diagonal
23.6", 59.8cm

Panel
VA

Curved
1500R

Native resolution
1920 x 1080 @180Hz (2.1 megapixel)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
3000:1

Advanced contrast
80M:1

Response time (MPRT)
0.5ms

Viewing zonehorizontal/vertical
178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln (sRGB: 96%, NTSC: 72%)

Horizontal Sync
30 - 200kHz

Viewable area W x H
521.4 x 293.3mm, 20.5 x 11.5"

Pixel pitch
0.271mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal input
HDMI x2 (v. 2.0)

DisplayPort
x1 (v. 1.4)

USB HUB
x2 (v.2.0 (DC5V, 500mA))

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
yes

HDR
yes

OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu (Up / Submenu, Down / Input Select, Left / ECO, Right / Volume)

User controls
picture adjust (contrast, brightness, OD, ACR, ECO, black tuner, colour saturation, motion blur red., AMD FreeSync), input source, audio settings (volume, mute audio), store user settings (user modes), colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, x-res technology, sharpness, RGB range, video mode adjust), language, setup menu (OSD horizontal position, OSD vertical position, OSD time, opening logo, power LED), information, recall

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tilt

Tilt angle
22 Degrees up; 4 Degrees down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power (1.5m), USB (1.5m), HDMI (1.5m)

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
21W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHCabove 0.1%
Lead

DIMENSIONS / WEIGHT

Product dimensions
W x H x D535.5 x 394.5 x 202mm

Box dimensions
W x H x D622 x 408 x 171mm

Weight
(without box)3.8kg
(with box)6kg

• Screen Size (in): 23.6
• Max Resolution: 1920x1080
• Refresh Rate: 180Hz
• Response Time: 0.5ms
• Display Port: Yes
• Height Adjustable: No
• Curved Screen: Yes
