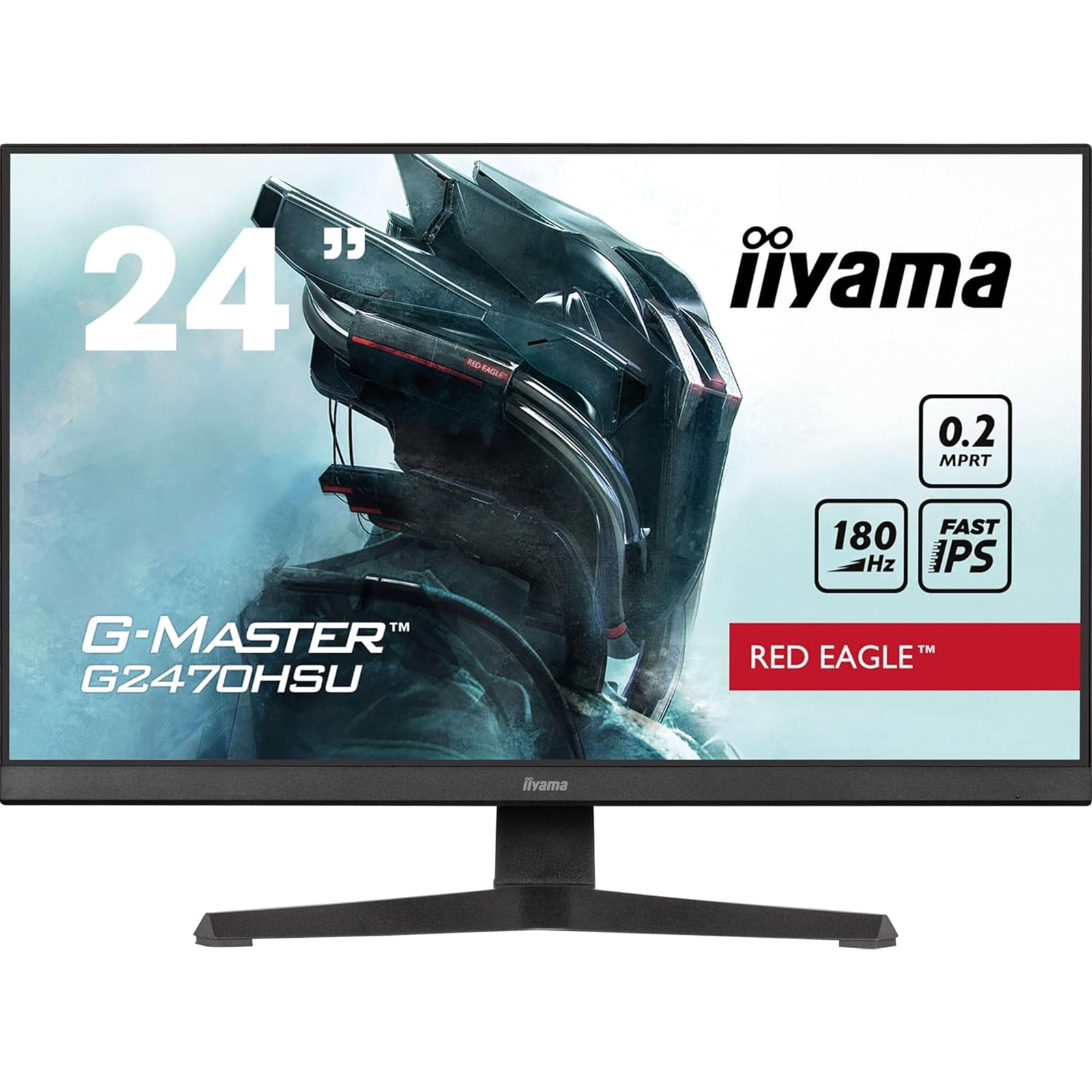

iiyama G-Master GB2470HSU-B6 Red Eagle Gaming Monitor

The iiyama G-Master GB2470HSU-B6 delivers competitive gaming performance with its 23.8-inch Fast IPS panel. This Full HD monitor combines a 180Hz refresh rate with 0.2ms MPRT response time, ensuring smooth, responsive gameplay for fast-paced titles and competitive gaming scenarios.

Fast IPS Panel Technology

The Fast IPS panel provides accurate colour reproduction with 16.7 million colours (8-bit) and 178° viewing angles in all directions. With 300 cd/m² brightness and 1000:1 static contrast, the display maintains image clarity across various lighting conditions. The 0.2ms Moving Picture Response Time eliminates motion blur and ghosting during rapid on-screen movements.

Adaptive Sync and High Refresh Rate

Adaptive Sync technology synchronizes the monitor's refresh rate with your GPU output, eliminating screen tearing and stuttering. The 180Hz refresh rate operates through both HDMI 1.4 and DisplayPort 1.2 connections at the native 1920 x 1080 resolution, providing fluid motion in games and general use.

Gaming-Focused Features

The Black Tuner function adjusts brightness levels in dark areas, improving visibility in shadowed scenes without overexposing brighter portions of the image. This feature proves particularly useful in competitive gaming where spotting opponents in darker environments provides a tactical advantage. Blue Light Reducer and Flicker Free technology reduce eye strain during extended gaming sessions.

Ergonomic Stand and Connectivity

The ergonomic stand offers 150mm height adjustment, 90° pivot rotation (both directions), 23° upward and 5° downward tilt, plus 90° swivel (45° left and right). This flexibility allows optimal positioning for comfort during long gaming sessions. The monitor is also VESA 100 x 100mm compatible for mounting solutions.

Connectivity includes HDMI 1.4, DisplayPort 1.2, and a 4-port USB 3.2 Gen 1 hub (5Gbps, 900mA) for peripherals. Built-in 2 x 2W speakers provide audio output, with a headphone jack available for private listening. A cable management system keeps your setup organized.

Technical Specifications

The monitor measures 539.5 x 505 x 171mm with stand and weighs 4.5kg without packaging. Power consumption averages 18W during typical use, with 0.5W standby and 0.3W in off mode. The unit is certified with CE, TUV-Bauart, RoHS, ErP, WEEE, REACH, UKCA, and Eyesafe 2.0, meeting Energy Efficiency Class E standards.

All necessary cables are included: power, USB, HDMI, and DisplayPort, along with quick start and safety guides. The package dimensions are 610 x 398 x 157mm with a total weight of 6.3kg.

G-MASTER GB2470HSU-B6
Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle
Gain the competitive edge you need to unlock your full gaming potential with the 24'' GB2470HSU monitor. Featuring an ultra-fast 0.2ms MPRT and a 180Hz refresh rate, this monitor ensures smooth gameplay. Armed with Adaptive Sync you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Additionally, the monitor is equipped with an ergonomic 150mm height adjustable stand, allowing you to customize the monitor to your preferences.

Fast IPS
The Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.2ms Moving Picture Response Time (MPRT).

180Hz & 0.2ms MPRT
With 180Hz refresh rate and 0.2ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

Specifications

Display Characteristics

Diagonal
23.8", 60.5cm

Panel
Fast IPS

Native Resolution
1920 x 1080 @180Hz (2.1 megapixel Full HD, DisplayPort)

Aspect Ratio
16:9

Panel Brightness
300 cd/m²

Static Contrast
1000:1

Advanced Contrast
80M:1

Response Time (MPRT)
0.2ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln 8bit

Horizontal Sync
30 - 225kHz

Viewable Area W x H
527 x 296.5mm

Pixel Pitch
0.275mm

Colour
matte, black

Interfaces / Connectors / Controls

Signal Input
HDMI x1 (v.1.4, max. 1920 x 1080 @180Hz)
DisplayPort x1 (v.1.2, max. 1920 x 1080 @180Hz)

USB HUB
x4 (v.3.2 Gen 1 (5Gbps, DC5V, 900mA))

HDCP
yes

Headphone Connector
yes

Features

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
HDMI: 1920 x 1080 @48-180Hz, DP: 1920 x 1080 @48-180Hz

Extra
i-Style colour

OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control Buttons
Signal select/ Exit, + / Volume, - / i-Style Colour, Menu, Power

User Controls
picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute)

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

Mechanical

Display Position Adjustments
height, swivel, tilt, pivot (rotation both sides)

Height Adjustment
/

Rotation (PIVOT function)
90°

Swivel Stand
90°; 45 ° left; 45° right

Tilt Angle
23° up; 5° down

VESA Mounting
100 x 100mm

Cable Management System
yes

Accessories Included

Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide

Power Management

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
18W typical, 0.5W stand by, 03W off mode

Sustainability

Regulations
CE, TUV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA, Eyesafe 2.0

Energy Efficiency Class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

Weight & Dimensions
Product dimensions W x H x D539.5 x 505 x 171mm
Box dimensions W x H x D610 x 398 x 157mm
Weight (without box)4.5kg
Weight (with box)6.3kg

• Screen Size (in): 24
• Max Resolution: 1920x1080
• Refresh Rate: 180Hz
• Response Time: 0.2ms
• Display Port: Yes
• Height Adjustable: No
• Curved Screen: No
