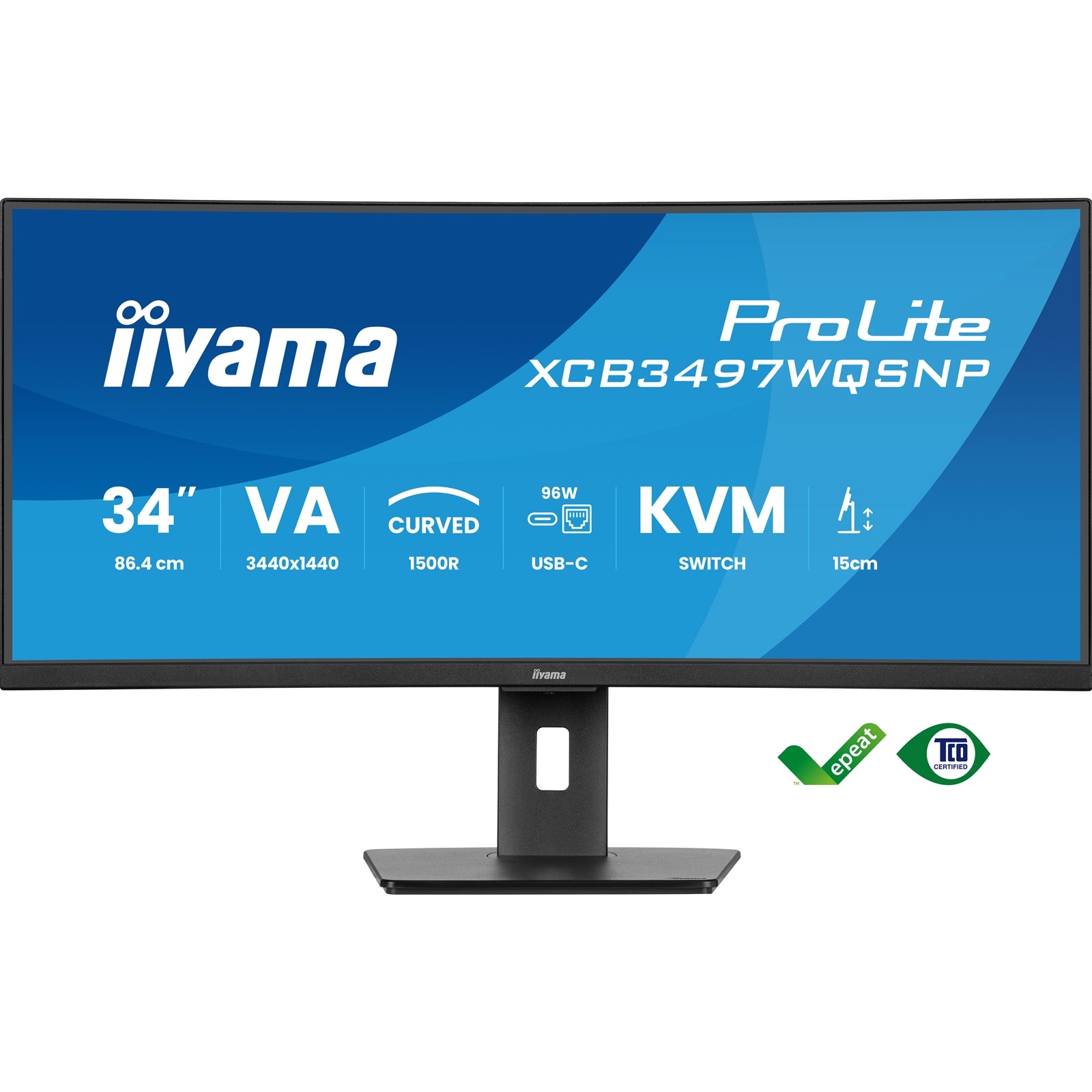

iiyama ProLite XCB3497WQSNP-B1 34" UWQHD Curved Monitor with USB-C Dock and KVM Switch

The iiyama ProLite XCB3497WQSNP-B1 delivers a comprehensive workspace solution with its 34-inch curved VA panel, combining advanced connectivity with practical multi-device control. The 3440x1440 UWQHD resolution provides 4.9 megapixels across a 21:9 aspect ratio, offering substantial screen real estate for multitasking and content creation.

KVM Switch and USB-C Dock Integration

The integrated KVM switch enables control of multiple computers through a single monitor, keyboard, and mouse setup. The USB-C dock functionality consolidates video, data, and power delivery (95W) through one cable connection, reducing desk clutter while charging your notebook. When connected to a LAN network, the monitor provides automatic network access to your connected notebook.

Display Performance and Specifications

The 1500R curved VA panel delivers 3000:1 static contrast with 80M:1 advanced contrast ratio, producing deep black levels and accurate color reproduction across 16.7 million colors (99% sRGB, 93% NTSC). The 0.4ms MPRT response time and 120Hz refresh rate via DisplayPort and USB-C ensure smooth motion handling. FreeSync Premium support provides adaptive synchronization across 48-120Hz on DisplayPort and USB-C connections.

Connectivity Options

Input options include dual HDMI ports (v.2.0 and v.1.4), DisplayPort 1.4, and USB-C with 95W power delivery. The USB hub features four ports: two Type-A USB 3.2 Gen 1 (5Gbps, 4.5W) and two Type-C (5Gbps, 7.5W). An RJ45 LAN port enables network connectivity through the monitor, while the headphone jack and dual 5W speakers provide audio output.

Ergonomic Design and Eye Care

The monitor stand offers 150mm height adjustment, 90° swivel (45° left/right), and 23° upward/5° downward tilt for optimal viewing position. VESA 100x100mm mounting compatibility provides alternative installation options. Flicker-Free technology and Blue Light Reducer function minimize eye strain during extended use sessions.

Technical Controls and Features

Joystick controls provide access to comprehensive OSD settings including picture adjustment (brightness, contrast, ACR, overdrive, motion blur reduction), color settings (6-axis control, gamma, color temperature), and KVM source selection. The i-Style Colour feature offers preset color modes, while X-Res technology enhances image clarity.

iiyama ProLite XCB3497WQSNP-B1 34'' UWQHD curved monitor with USB-C dock, LAN, KVM switch and 15cm height adjustable stand

The XCB3497WQSNP is a 34-inch curved monitor that incorporates a KVM switch and a USB-C dock to simplify your workspace. The KVM switch enhances multitasking by allowing you to control multiple computers from a single monitor, keyboard, and mouse. The USB-C dock reduces cable clutter and simplifies connectivity even further, allowing a single cable to carry video, data, and power to charge your notebook. Additionally, when the monitor is connected to a LAN network, your notebook automatically gains network access. The VA panel technology delivers high contrast and deep black levels and wide viewing angles for consistent image quality regardless of your position for a richer and more vivid viewing experience.

For optimal comfort, the 15cm height-adjustable stand allows you to customize the screen position, while the Flicker-Free panel and Blue Light reduction function help minimize eye strain.

Easy multi-device control with KVM
Easily switch between multiple computers using one monitor, keyboard, and mouse, making multitasking smooth and efficient.

USB-C dock for tidy desk & easy connectivity
Connect everything with just one cable — handle video, data, and power while keeping your desk clean and organized.

Curved for immersive viewing
Step into an immersive, natural viewing setup that minimizes distortion and reduces eye strain during long work or entertainment sessions.

Multitasking with ultra-wide QHD
Get more space to multitask, compare documents side by side, or fully immerse in your content without switching windows.

Technical Specification

DISPLAY CHARACTERISTICS

Design
curved

Diagonal
34", 86.7cm

Panel
VA panel, matte finish

Curved
1500R

Native resolution
3440 x 1440 @120Hz (4.9 megapixel UWQHD, DisplayPort & USB-C)

Aspect ratio
21:9

Panel brightness
350 cd/m²

Static contrast
3000:1

Advanced contrast
80M:1

Response time (MPRT)
0.4ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln (sRGB: 99%; NTSC: 93%)

Horizontal Sync
30 - 180kHz

Viewable area W x H
797.2 x 333.7mm, 31.3 x 13.1"

Pixel pitch
0.232mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal input
HDMI x2 (1x v.2.0 and 1x v. 1.4, 3440x1440 @100Hz, 2560x1440 @120Hz)
DisplayPort x1 (v.1.4, 3440? x ?1440?@ 120Hz)
USB-C x1 (3440? x ?1440?@ 120Hz, PD 95W)

USBHUB
x4 (2x Type A v.3.2 Gen 1 (5Gbps, 4.5W) 2x Type C (5Gbps, 7.5W))

USB-C DOCK
x1 (Power delivery 95W, LAN, USB v. 3.2 (Gen 1, 5Gbit))

HDCP
yes

Headphone connector
yes

RJ45 (LAN)
x1

FEATURES

KVM switch
yes

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
FreeSync Premium, HDMI: 2560 x 1440 @48-100Hz, DP / USB-C: 3440 x 1440 @48-120Hz
E
Extra
i-Style Colour

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Joystick: Power/Menu (Centre), Forward/Signal Select, Backward, Left/i-Style colour/ECO/BlueLight Reducer, Right/Volume

User controls
picture adjust (brightness, contrast, Eco, ACR, OD, AdaptiveSync, motion blur reduction, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.,), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, Mac address, USB charge, USB C speed), KVM (HDMI1, HDMI2, DisplayPort, USB C), input select, audio settings (volume, mute audio), recall

Speakers
2 x 5W

Convenience
Kensington-lock prepared, DDC2B

MECHANICAL

Display position adjustments
swivel, tilt

Height adjustment
150mm

Swivel stand
90°; 45° left; 45° right

Tilt angle
23° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, DP, USB-C

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
55W typical, 0.5W stand by, 0.3W off mode

DIMENSIONS / WEIGHT

Product dimensions
W x H x D807 x 426 (576) x 245.5mm
Box dimensions W x H x D928 x 480 x 186mm
Weight (without box)9.7kg
Weight (with box)14.1kg

• Screen Size (in): 34
• Max Resolution: 3440x1440
• Refresh Rate: 120Hz
• Response Time: 0.4ms
• Display Port: Yes
• Height Adjustable: Yes
• Curved Screen: Yes
