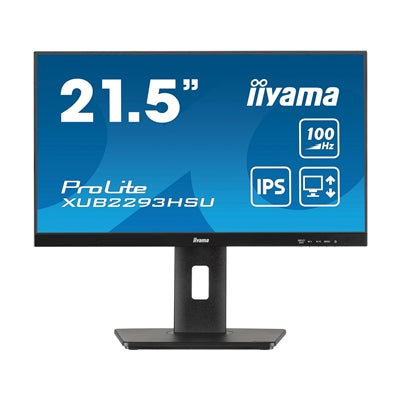

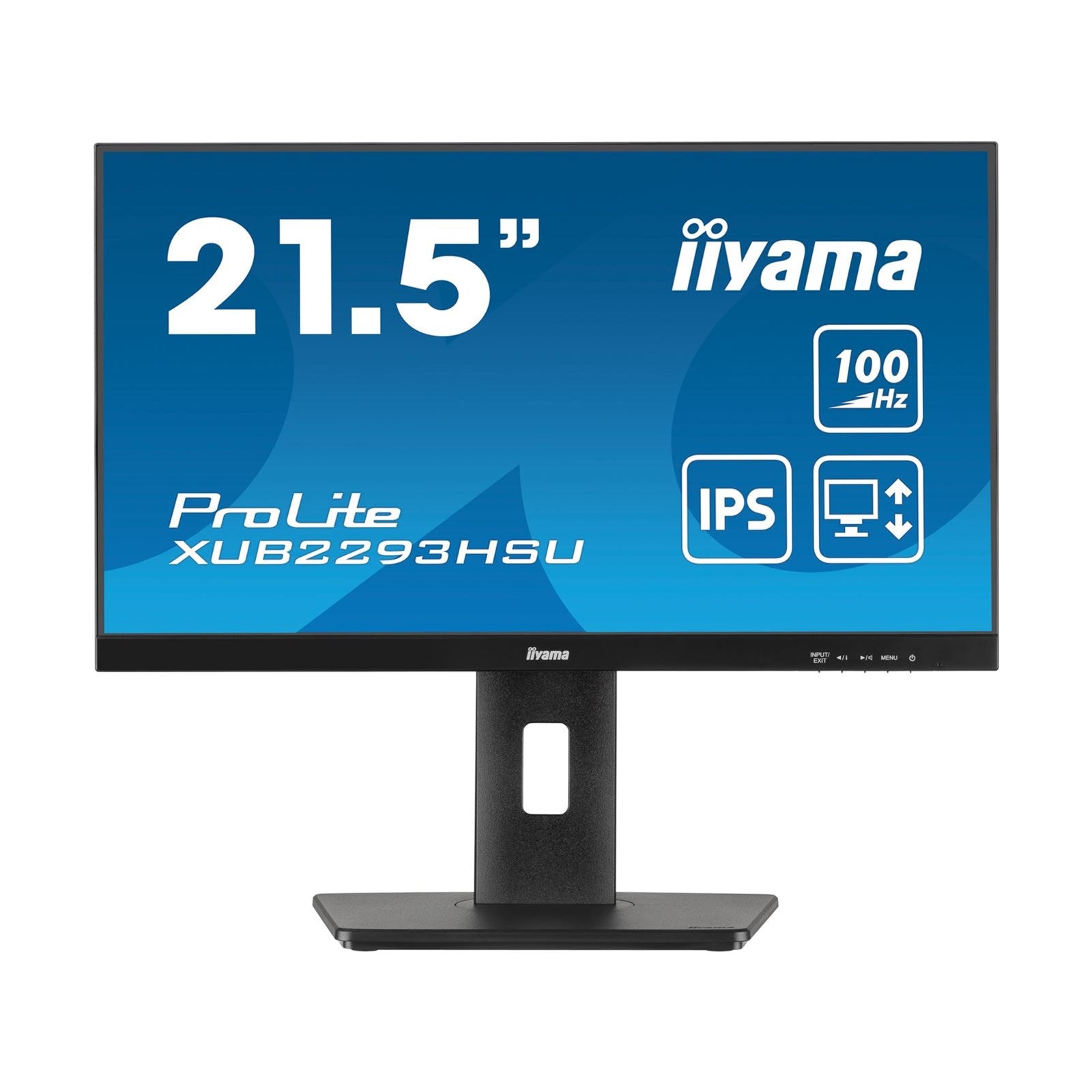

iiyama ProLite XUB2293HSU-B7 22-Inch Full HD IPS Monitor

The iiyama ProLite XUB2293HSU-B7 delivers professional-grade performance in a compact 21.5-inch form factor. Featuring IPS panel technology with Full HD 1920x1080 resolution, this monitor provides accurate color reproduction and 178° wide viewing angles from all directions, making it ideal for multi-monitor setups, web design, and photographic work.

Performance Specifications

This monitor combines a 100Hz refresh rate with 1ms MPRT response time and AMD FreeSync support, reducing motion blur and screen tearing during fast-paced content. The IPS panel delivers 300 cd/m² brightness, 1000:1 static contrast ratio, and 16.7 million colors for crisp, vibrant visuals. The 30-110kHz horizontal sync range ensures compatibility with various input sources.

Ergonomic Design & Connectivity

The 150mm height adjustable stand offers complete flexibility with tilt (23° up, 5° down), 120° swivel (60° left/right), and 90° pivot rotation for portrait mode. The edge-to-edge design with slim bezels maximizes screen real estate for seamless multi-display configurations. VESA 100x100mm mounting compatibility provides additional placement options.

Connectivity includes HDMI 1.4 and DisplayPort 1.2 inputs with HDCP support, plus a 2-port USB 2.0 hub (DC5V, 500mA) for peripheral connections. Integrated 2x2W speakers and a headphone jack deliver convenient audio solutions without external speakers.

Eye Comfort Technology

The flicker-free backlight combined with blue light reducer function minimizes eye strain during extended viewing sessions. These features substantially reduce fatigue caused by flickering and blue light emission, making this monitor suitable for all-day office work and home office environments.

Energy Efficiency & Build Quality

The internal power supply unit operates on AC 100-240V at 50-60Hz, consuming just 17W typical power with 0.5W standby and 0.3W in off mode. The monitor meets CE, TUV-Bauart, EAC, RoHS, ErP, WEEE, REACH, and UKCA certifications with Energy Efficiency Class E rating. The matte black finish resists glare and fingerprints.

Weighing 3.9kg without packaging, the monitor measures 492 x 328.5 x 209.5mm and includes a cable management system. The package contains power, USB, and HDMI cables along with quick start and safety guides. Kensington lock preparation provides security options for office deployments.

ProLite XUB2293HSU-B7
Stylish edge-to-edge design makes the ProLite XUB2293HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, 2 port USB hub, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue and an ergonomic 150mm height adjustable stand for optimal user comfort, this 21.5'' display is a great choice for both multi-monitor configuration and office applications.

Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

1MS
Fast response time is key to ultra-smooth gaming. It reduces ghosting and blurring providing the user with an improved graphic performance.

IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

HAS (150mm) + Pivot (rotation both sides)
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.


Specifications

Display

Diagonal
21.5", 54.5cm

Panel
IPS panel technology LED, matte finish

Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
1000:1

Advanced contrast
80M:1

Response time (MPRT)
1ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 110kHz

Viewable area W x H
478.7 x 260.3mm, 18.8 x 10.3"

Pixel pitch
0.249mm

Colour
matte, black

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

USB HUB
x2 (v.2.0 DC5V, 500mA)

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
Yes

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit

User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
height, swivel, tilt, pivot (rotation both sides)

Height Adjustment
150mm

Rotation (PIVOT function)
90

Swivel Stand
120°; 60° left; 60° right

Tilt angle
23° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unitinternal

Power supply
AC 50 - 60V, 100/240Hz

Power usage
17W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D492 x 328.5 (478.5) x 209.5mm
Box dimensions W x H x D620 x 395 x 126mm
Weight (without box)3.9kg
Weight (with box)5.3kg
EAN code4948570124572

• Screen Size (in): 22
• Max Resolution: 1920x1080
• Refresh Rate: 100Hz
• Response Time: 1ms
• Display Port: Yes
• Height Adjustable: Yes
• Curved Screen: No
