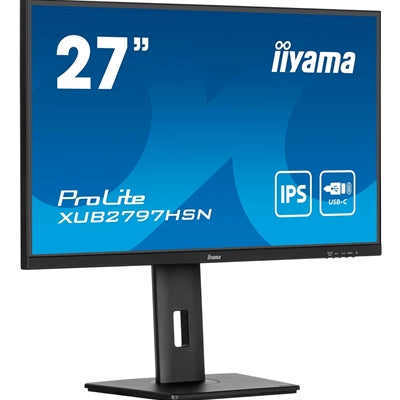

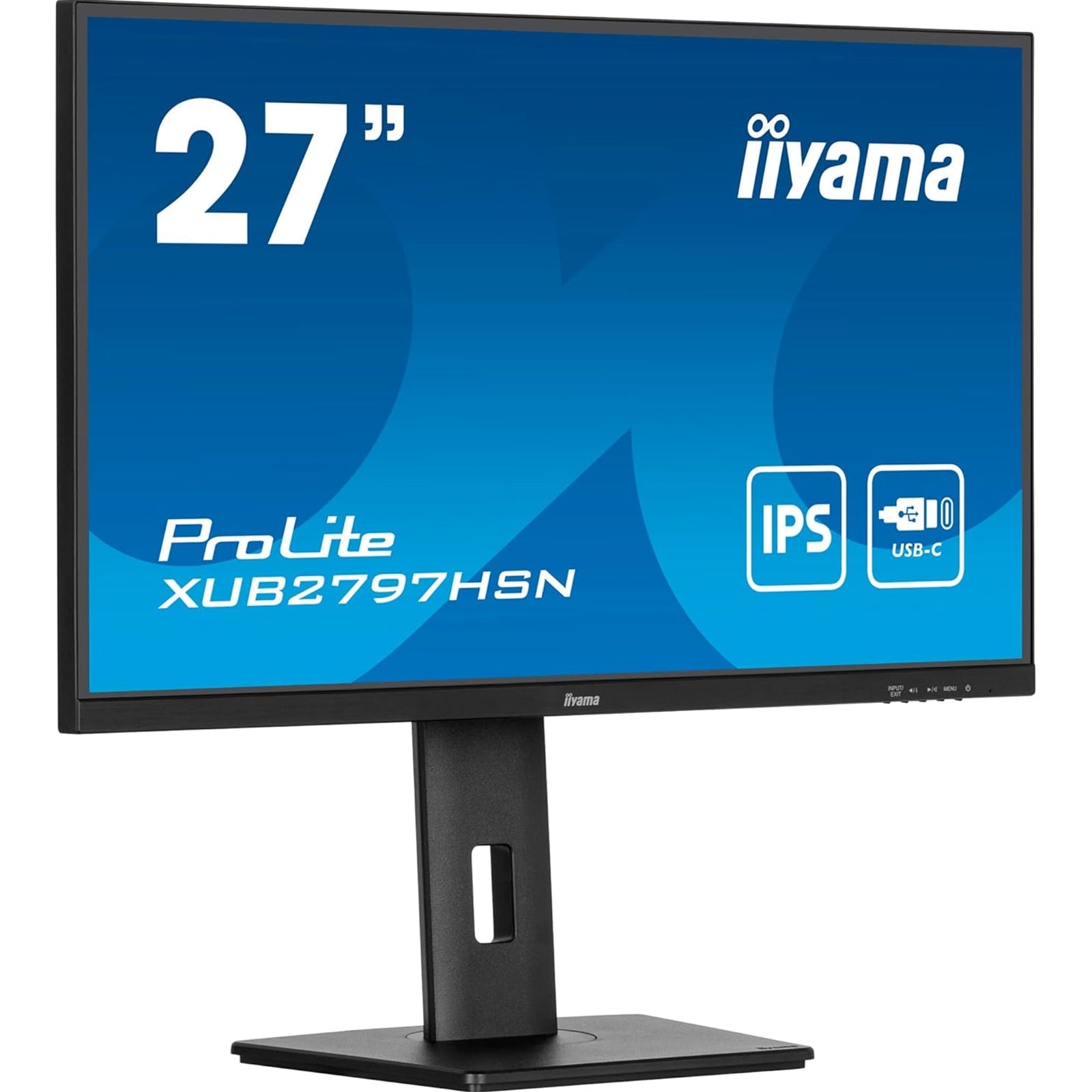

iiyama ProLite XUB2797HSN-B2 27" Full HD IPS Monitor with USB-C Docking Station

The iiyama ProLite XUB2797HSN-B2 delivers a comprehensive docking solution for modern workspaces. This 27-inch Full HD IPS monitor combines display excellence with practical connectivity through its integrated USB-C dock, making it an efficient choice for professionals seeking simplified desk setups.

USB-C Docking Station with 65W Power Delivery

Connect your laptop using a single USB-C cable to simultaneously transmit video signal, charge your device with 65W power delivery, and access network connectivity through the built-in RJ45 LAN port. The monitor's USB-C dock eliminates cable clutter while providing DisplayPort output for multi-monitor setups via MST (Multi-Stream Transport). Four additional USB ports (3x USB 3.2 Gen 1 and 1x USB-C) allow you to connect peripherals directly to the monitor.

IPS Panel Technology with 100Hz Refresh Rate

The 27-inch IPS panel delivers 1920x1080 Full HD resolution with 178° viewing angles, ensuring consistent color accuracy from any position. With 300 cd/m² brightness, 1000:1 static contrast, and 99% sRGB coverage, the display produces accurate colors for professional work. The 100Hz refresh rate and 1ms MPRT response time provide smooth visuals, while the 3-side borderless design maximizes screen real estate.

Ergonomic Stand with Full Adjustability

The height-adjustable stand offers 150mm of vertical adjustment, complemented by pivot functionality for portrait orientation, 120° swivel range, and tilt adjustments (23° up, 5° down). This flexibility allows you to create an ergonomic workspace that meets health and safety standards. VESA 100x100mm mounting compatibility provides alternative installation options.

Eye Comfort and Connectivity

Flicker-free technology and blue light reduction minimize eye strain during extended work sessions. The monitor includes 2x2W integrated speakers and a headphone jack for audio flexibility. Connectivity options include HDMI 1.4, DisplayPort 1.2, and the USB-C dock port, with DisplayPort output for daisy-chaining additional displays. Adaptive Sync support ensures smooth performance without screen tearing.

ProLite XUB2797HSN-B2

27 Inch IPS technology panel with USB-C dock and RJ45 (LAN)
Equipped with a USB-C dock connector, the XUB2797HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. Supplied with a 150mm height-adjustable stand featuring pivot and swivel functions, the XUB2797HSN allows you to easily adjust the screen position to your preferences.

USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.

IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

HAS (150MM) + PIVOT (ROTATION BOTH SIDES)
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

DISPLAY CHARACHTERISTICS

Design
3-side borderless

Diagonal
27", 68.5cm

Panel
IPS Panel Technology LED, matte finish

Native Resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect Ratio
16:9

Panel Brightness
300 cd/m²

Static Contrast
1000:1

Advanced Contrast
80M:1

Response Time (MPRT)
1ms

Viewing Zone
horizontal/vertical: 178°/ 178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln (sRGB: 99%; NTSC: 72%)

Horizontal Sync
30 - 110kHz

Viewable Area W x H
597.8 x 336.3 mm, 23.5 x 13.2"

Pixel Pitch
0.311mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal Input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)
USB-C x1 (PD 65W)

Signal Output
DisplayPort x1 (Daisy Chain MST max. 1920x1880)

USB HUB
x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 7.5W))

USB-C DOCK
x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit))

HDCP
yes

Headphone Connector
yes

RJ45 (LAN)
x1

FEATURES

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
yes

Extra
i-Style colour

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control Buttons
Power, Menu, Up / Right / Volume, Down /Left / Shortcut, Input / Exit

User Controls
picture adjust (brightness, contrast, Eco, ACR, OD, MBR, AdaptiveSync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute)

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL

Display Position Adjustments
height, swivel, tilt, pivot (rotation both sides)

Height Adjustment
150mm

Rotation (PIVOT Function)
90°

Swivel Stand
120°; 60° left; 60° right

Tilt Angle
23° up; 5° down

VESA Mounting
100 x 100 mm

Cable Management System
yes

ACCESSORIES INCLUDED

Cables
power, HDMI, USB-C

Other
quick start guide, safety guide

POWER MANAGEMENT

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
22W typical, 0.5W stand by, 03W off mode

SUSTAINABILITY

Regulations
TCO Certified, CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy Efficiency Class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D611.5 x 400.5 (550.5) x 209.5mm
Box dimensions W x H x D679 x 427 x 130mm
Weight (without box)6kg
Weight (with box)8.7kg

• Screen Size (in): 27
• Max Resolution: 1920x1080
• Refresh Rate: 100Hz
• Response Time: 1ms
• Display Port: Yes
• Height Adjustable: Yes
• Curved Screen: No
