Intel Core i5-12400 Desktop Processor - 12th Gen Alder Lake

The Intel Core i5-12400 delivers exceptional performance for gaming, content creation, and multitasking workloads. Built on the Alder Lake architecture, this 12th generation processor features 6 performance cores and 12 threads, providing the processing power needed for demanding applications without compromising efficiency.

Performance Specifications

Operating at a base frequency of 2.5GHz and boosting up to 4.4GHz, the i5-12400 adapts to your workload demands. The 18MB Intel Smart Cache (with 7.5MB L2 cache) ensures quick data access and improved application responsiveness. With a processor base power of 65W and maximum turbo power of 117W, this CPU balances performance with thermal efficiency, making it suitable for compact builds and standard ATX cases alike.

Integrated Graphics and Display Support

The integrated Intel UHD Graphics 730 features 24 execution units with a base frequency of 300MHz and dynamic frequency up to 1.45GHz. Support for up to 4 displays simultaneously, with maximum resolutions of 7680x4320 at 60Hz via DisplayPort and 4096x2160 at 60Hz via HDMI 2.1. DirectX 12, OpenGL 4.5, and OpenCL 2.1 support ensures compatibility with modern applications and games. Intel Quick Sync Video and Clear Video HD Technology provide hardware-accelerated media encoding and playback.

Platform and Connectivity

The LGA1700 socket brings PCIe 5.0 and PCIe 4.0 support with 20 lanes total, enabling next-generation storage and graphics card compatibility. DMI 4.0 interface ensures high-speed communication with the chipset. Memory support extends up to 128GB, accommodating both DDR4 and DDR5 configurations depending on motherboard choice.

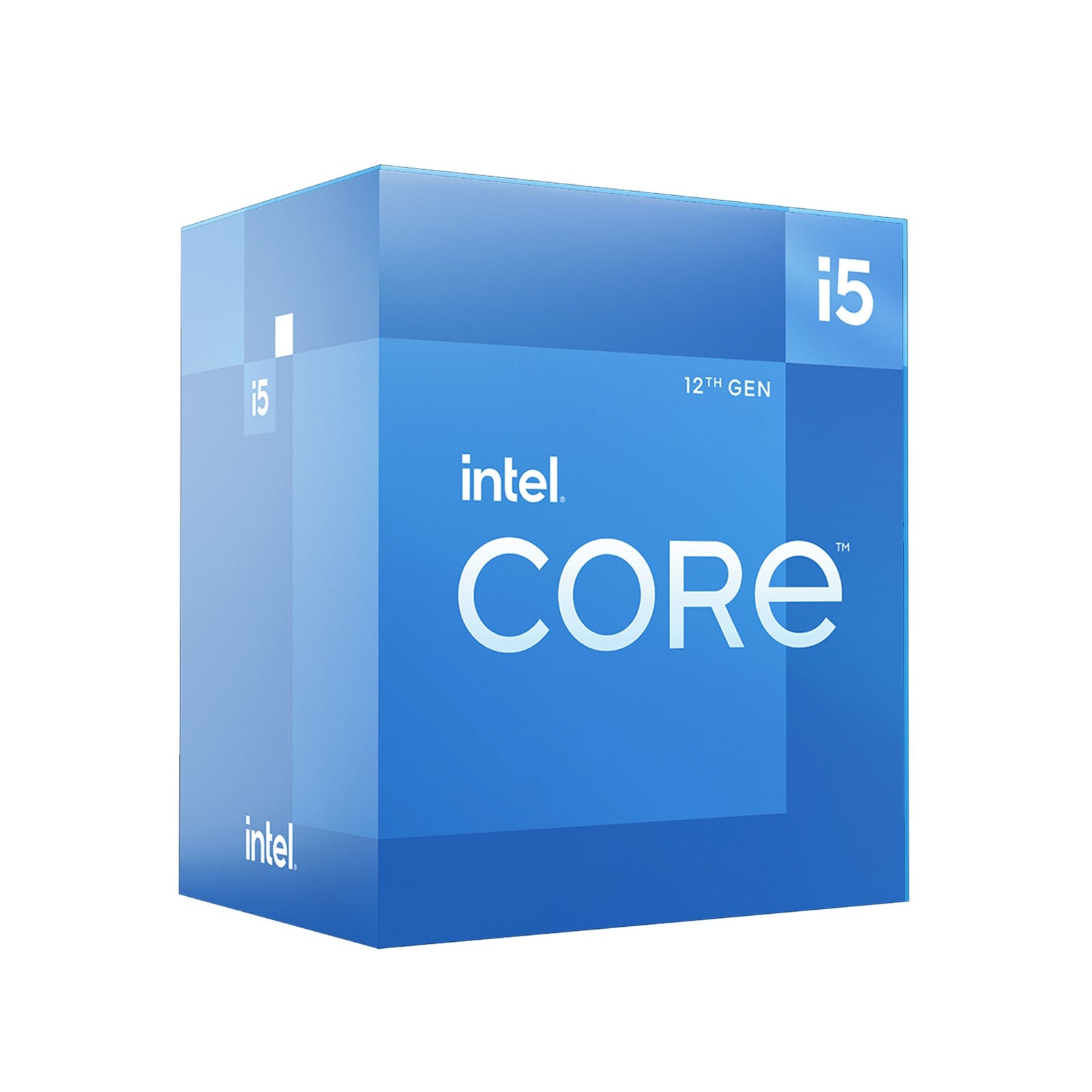

Package Contents

This retail package (BX8071512400) includes the processor and heatsink, providing everything needed for installation. The included cooling solution is designed to handle the 65W TDP efficiently under typical workloads.

Technical Specifications

Chip Name
BX8071512400 Alder Lake

Socket
LGA1700

Total Cores
4

Number of Performance Cores
6

Number of Efficient Cores
0

Total Threads
12

Max Turbo Frequency
4.40Ghz

Intel Turbo Boost Max Technology 3.0 Frequency
N/A

Performance-core Max Turbo Frequency
4.40Ghz

Efficient-core Max Turbo Frequency
N/A

Performance-core Base Frequency
2.50Ghz

Efficient-core Base Frequency
N/A

Cache
18MB

Total L2 Cache
7.5MB

Processor Base Power
65W

Maximum Turbo Power
117W

Max Memory Size (dependent on memory type)
128GB

Processor Graphics
Intel UHD Graphics 730

Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.45 GHz

Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units
24

Max Resolution (HDMI)
4096 x 2160 @ 60Hz

Max Resolution (DP)
7680 x 4320 @ 60Hz

DirectX Support
12

OpenGL Support
4.5

Intel Quick Sync Video
Yes

Intel Clear Video HD Technology
Yes

Number of Displays Supported
4

OpenCL Support
2.1

Direct Media Interface (DMI) Revision
4.0

PCI Express Revision
5.0 and 4.0

Max Number of PCI Express Lanes
20

Heatsink
Y

Packaging
Retail

• Socket: 1700
• On-Chip Graphics: Yes
• Speed: 2.5GHz
• Core Quantity: 6
• Prefix: Core i5
