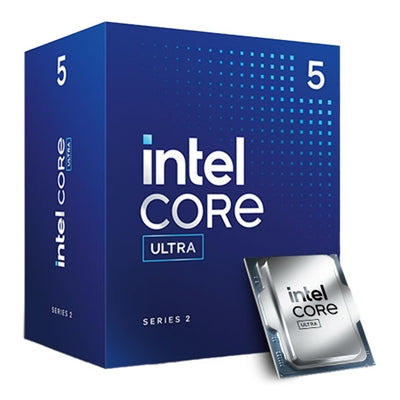

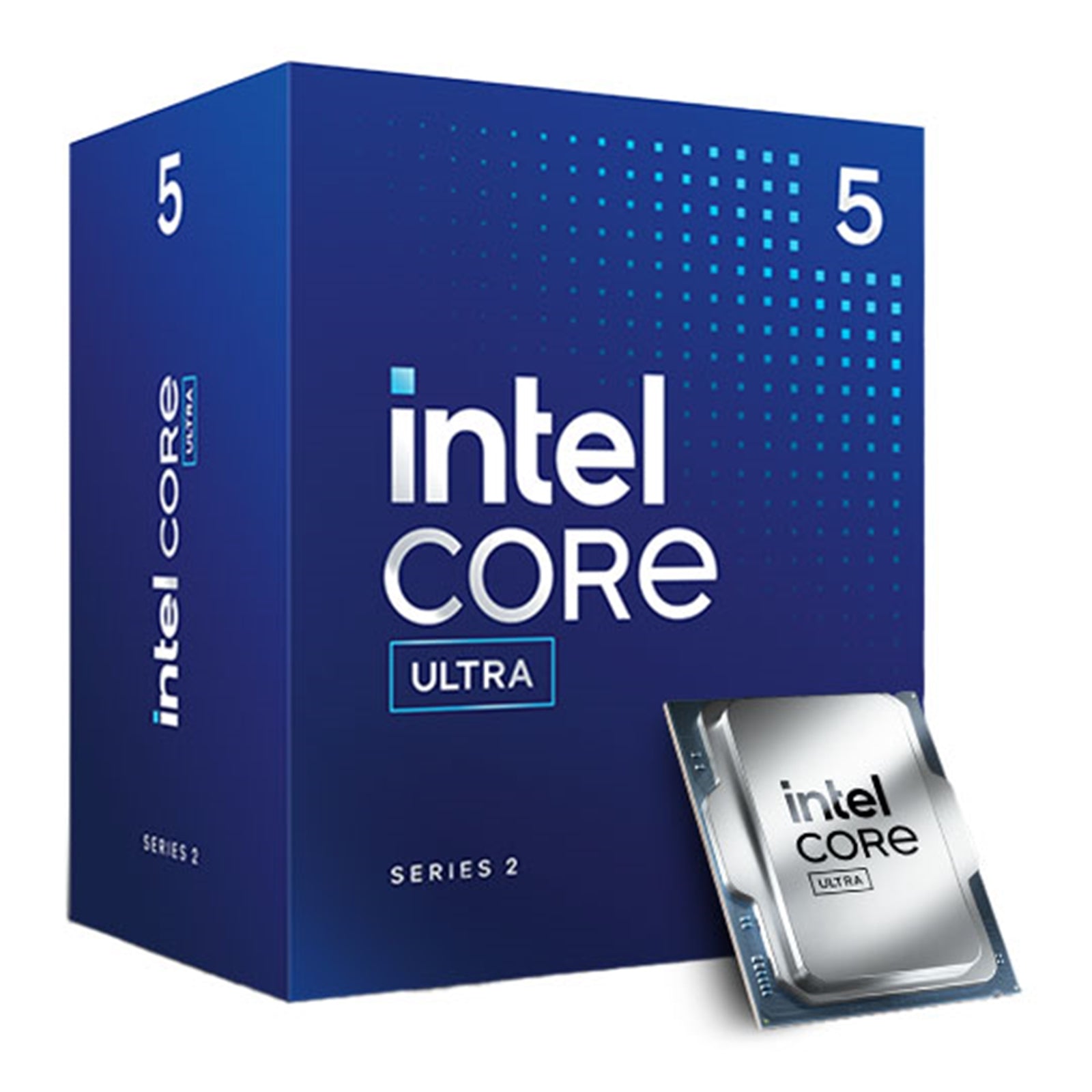

Intel Core Ultra 5 225 Arrow Lake Desktop Processor

The Intel Core Ultra 5 225 brings Arrow Lake architecture to the LGA 1851 platform, delivering 10 cores with a hybrid design of 6 Performance-cores and 4 Efficient-cores. With boost speeds reaching 4.9GHz on P-cores and a base frequency of 2.7GHz, this processor handles gaming, content creation, and multitasking workloads efficiently.

Hybrid Core Architecture

The 6 Performance-cores operate at up to 4.9GHz for demanding applications and gaming, while 4 Efficient-cores running at up to 4.4GHz manage background tasks and multi-threaded workloads. This 10-core, 10-thread configuration with 20MB Intel Smart Cache and 22MB L2 cache ensures responsive performance across diverse computing scenarios.

Integrated Arc Xe2 Graphics

Built-in Intel Arc Xe2 graphics with 64 execution units operate from 300MHz base to 1.8GHz dynamic frequency. Support for DisplayPort 2.1 UHBR20 and HDMI 2.1 FRL enables 8K output at 60Hz via DP and 4K at 60Hz via HDMI. DirectX 12, OpenGL 4.5, and OpenCL 3 compatibility covers modern graphics APIs.

AI Processing Capabilities

The dedicated NPU delivers 36 TOPS of AI performance for tasks like background removal, audio optimization, and auto-framing. Offloading AI workloads from the CPU and GPU maintains smooth gaming and streaming performance while running AI-enhanced applications.

Power Efficiency

Operating at 65W processor base power with 121W maximum turbo power, the Core Ultra 5 225 balances performance with thermal efficiency. This power profile suits compact builds and standard cooling solutions while maintaining competitive boost frequencies.

Memory and Connectivity

Dual-channel DDR5 support up to 6400 MT/s with 89.6GB/s bandwidth and 192GB maximum capacity provides headroom for memory-intensive applications. ECC memory support adds reliability for professional workloads. Native Thunderbolt 4 and USB 4.0 support simplifies peripheral connectivity, while PCIe 5.0 lanes enable fast storage and expansion cards. WiFi 7 and WiFi 6E readiness ensures modern wireless standards compatibility.

Specifications:

Total Cores
10

No of Performance-cores
6

No of Efficient-cores
4

Total Threads
10

Max Turbo Frequency
4.9GHz

Performance-core Max Turbo Frequency
4.9GHz

Efficient-core Max Turbo Frequency
4.4GHz

Performance-core Base Frequency
3.3GHz

Efficient-core Base Frequency
2.7GHz

Cache
20MB Intel Smart Cache

Total L2 Cache
22MB

Processor Base Power
65W

Maximum Turbo Power
121W

Max Memory Size (dependent on memory type)
192GB

Memory Types
Up to DDR5 6400 MT/s

Max No of Memory Channels
2

Max Memory Bandwidth
89.6GB/s

ECC Memory Supported
Yes

Processor Graphics
Intel Graphics

Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.8 GHz

Graphics Output
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Max Resolution (HDMI)
4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

Max Resolution (DP)
8K @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)
4K @ 60Hz

DirectX Support
12

OpenGL Support
4.5

OpenCL Support
3

• Socket: 1851
• On-Chip Graphics: Yes
• Speed: 2.7GHz
• Core Quantity: 10
• Prefix: Ultra 5
