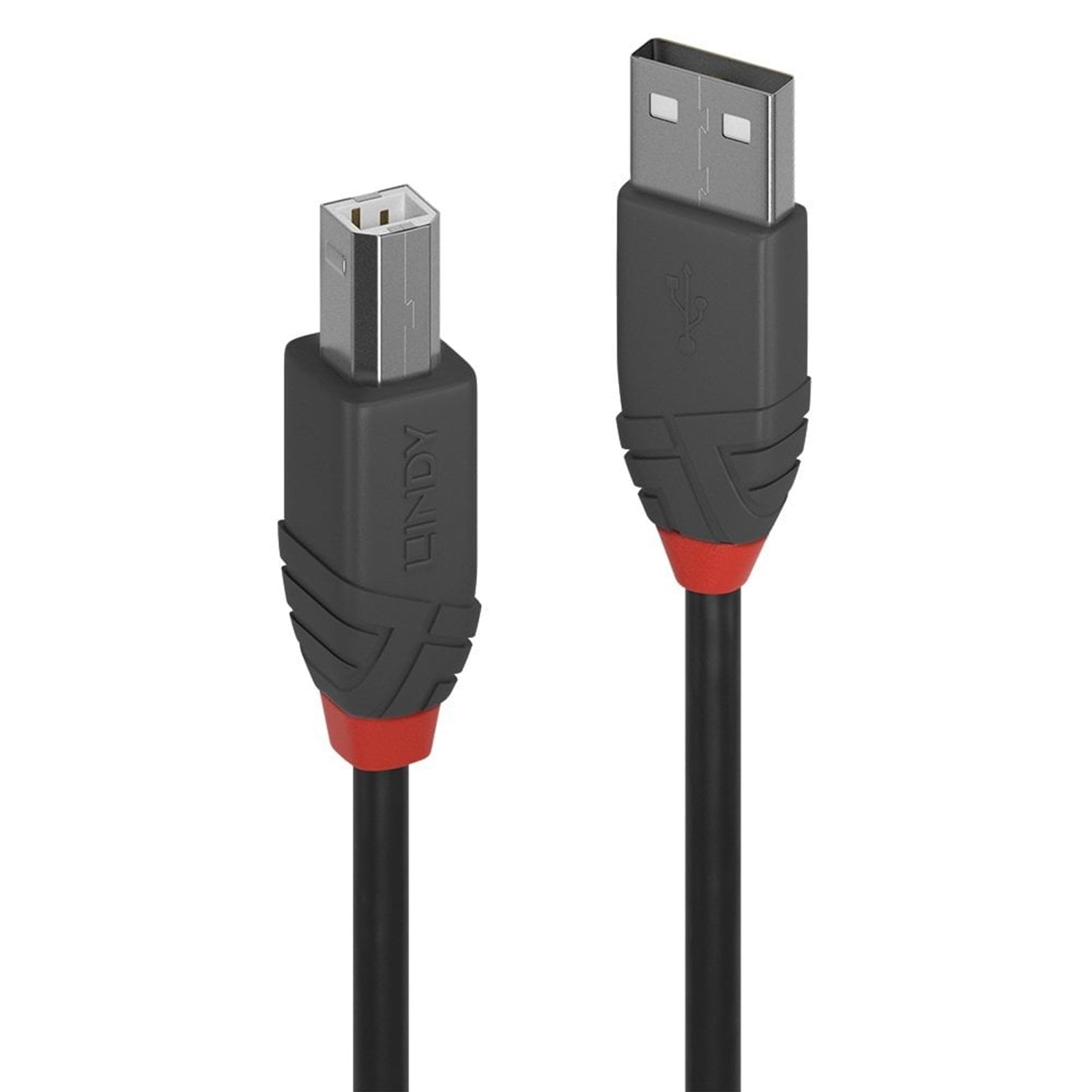

Professional USB 2.0 Type A to B Cable - Lindy Anthra Line

The Lindy 36672 Anthra Line USB 2.0 Type A to B cable delivers professional-grade connectivity for commercial AV and IT installations. This 1m cable combines robust construction with reliable performance for printers, scanners, and peripheral devices requiring USB 2.0 connectivity.

Double Shielded Construction for Reliable Performance

Built with double shielded construction featuring aluminium magnesium braid and tinned copper conductors, this cable provides corrosion resistance and optimal signal integrity. The 26/28AWG conductor gauge ensures stable data transmission up to 480Mbps, suitable for transferring large data volumes quickly and efficiently.

Premium Quality Components

Gold plated contacts maintain maximum reliability and signal quality over extended use. Nickel-plated connectors with robust PVC housing provide durability in demanding commercial environments. The 4.4mm round cable jacket offers flexibility while maintaining protection, with a minimum bend radius of 16mm.

Technical Specifications

Connectors:

• Connection A: USB-A (M)
• Connection B: USB-B (M)
• Length: 1m
• Colour: Black & Red

Connector Details:
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type B Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold
Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
Dimensions, USB B (approx.) WxDxH: 11.8x35x10.2mm (0.47x1.38x0.40in)

Cable Construction:
Length: 1m (3.28ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid

Specifications:
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous:
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Commercial Installation Ready

Part of Lindy's Lines cable connectivity concept, the Anthra Line series is engineered specifically for high performance AV and IT installations. The cable operates reliably within 0°C to 60°C temperature range and complies with RoHS, REACH, and UL certifications. Backed by a comprehensive 10-year warranty, this cable provides long-term value for professional applications.
