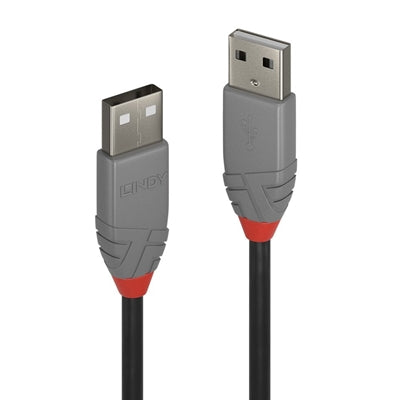

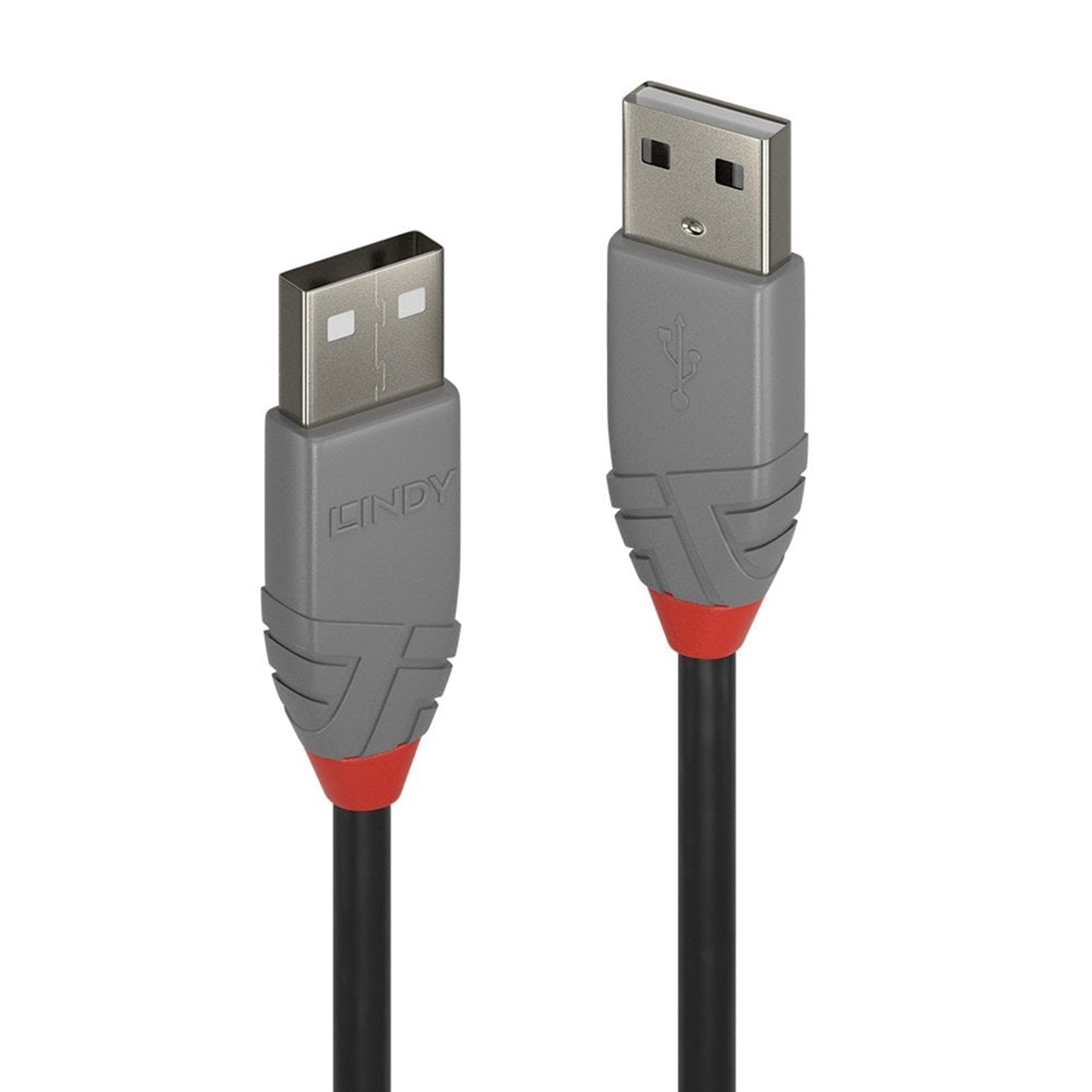

Lindy Anthra Line USB 2.0 Type A to A Cable - 2m

The Lindy 36693 Anthra Line USB 2.0 Type A to A cable delivers professional-grade connectivity for commercial AV and IT installations. This 2-meter cable features double shielded construction with tinned copper conductors, ensuring reliable performance and corrosion resistance in demanding environments.

Professional Grade Construction

Built for high-performance applications, this USB 2.0 cable incorporates robust PVC housing with nickel connectors and gold plated contacts to maintain signal integrity. The aluminium magnesium braid shielding protects against electromagnetic interference, while the 26/28AWG tinned copper conductors ensure consistent data transmission at speeds up to 480Mbps.

Technical Specifications

The cable supports USB 2.0 standard with 480Mbps bandwidth, enabling quick transfer of large data volumes. With a nominal attenuation of 5.8db/km and a 4.4mm jacket diameter, this cable maintains performance across its 2-meter length. The minimum bend radius of 16mm allows for flexible installation in tight spaces.

Reliable Performance

Designed for continuous operation in temperatures ranging from 0°C to 60°C, the Anthra Line cable meets RoHS, REACH, and UL certification standards. The double shielded construction with copper conductors provides durability for commercial installations, backed by Lindy's 10-year warranty.

Key Features

• USB 2.0 Type A Male to Type A Male configuration
• 480Mbps data transfer speed
• Double shielded cable with aluminium magnesium braid
• Gold plated contacts and nickel connectors
• Tinned copper conductors for corrosion resistance
• 2m (6.56ft) cable length
• Professional grade PVC housing
• 10-year warranty coverage

Detailed Specifications

Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type A Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) W x D x H: 15.5 x 35 x 7.8mm

Cable Construction
Length: 2m (6.56ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4 mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid

Performance
Supported Bandwidth: 480Mbps
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16 mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

• Connection A: USB-A
• Connection B: USB-A
• Length: 2m
• Colour: Black
