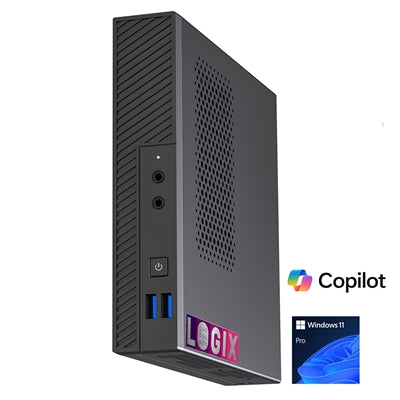

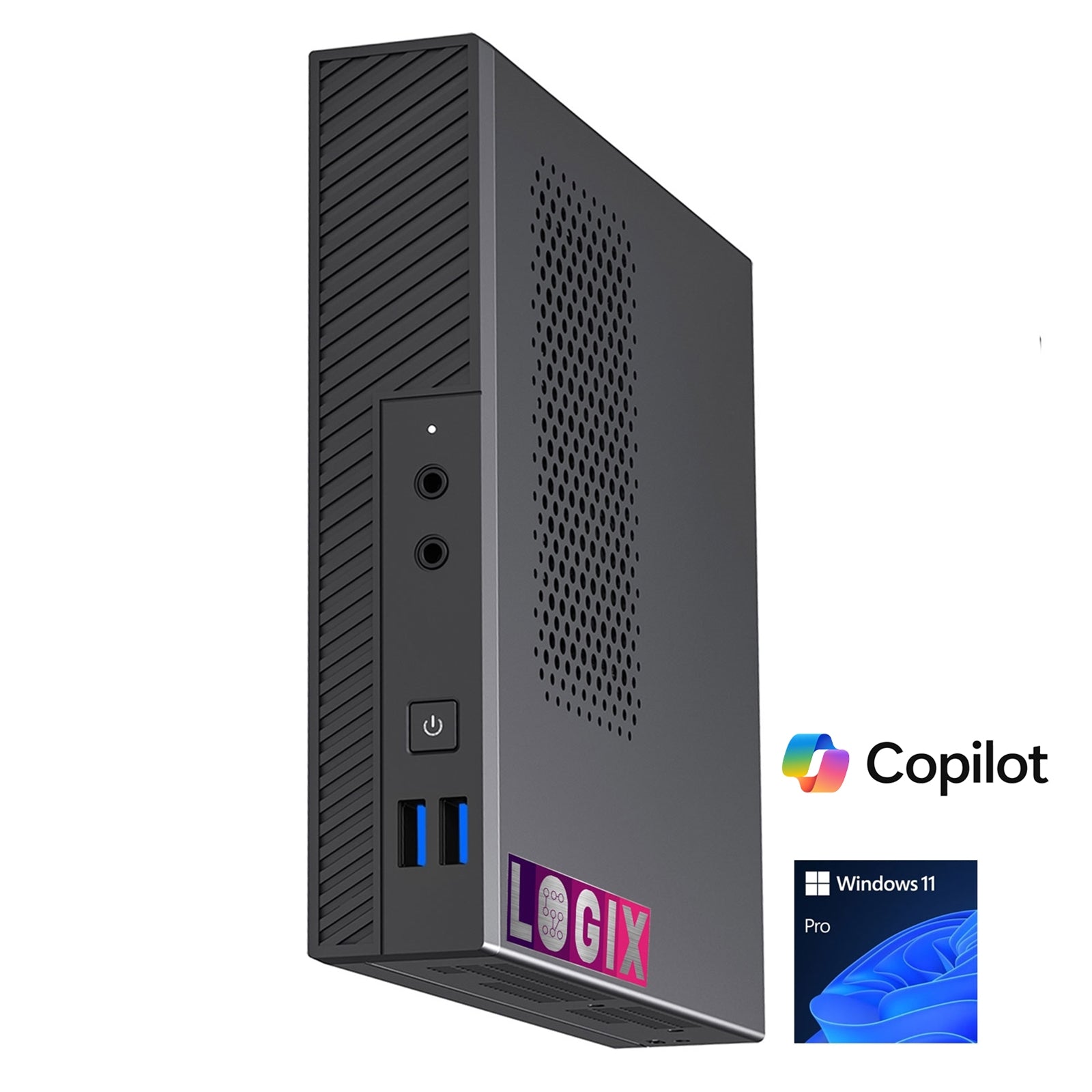

LOGIX LT-528P 1-Litre Mini PC - Intel i5 12th Gen

The LOGIX LT-528P delivers professional-grade performance in an ultra-compact 1-litre chassis. Powered by a 12th Gen Intel Core i5-12400 processor with 6 cores and 12 threads, this mini PC reaches speeds up to 4.40GHz for responsive multitasking and reliable operation.

Performance Specifications

Equipped with 8GB Kingston DDR4 RAM and a 250GB Kingston NVMe M.2 SSD offering read speeds up to 3000MB/s, this system boots quickly and handles multiple applications simultaneously. The Intel UHD Graphics 730 supports dual 4K displays via HDMI and DisplayPort, making it suitable for business environments, security monitoring, and alarm system management.

Compact Design & Connectivity

Measuring just 182mm x 36mm x 186mm, the VESA-mountable chassis attaches directly to monitor backs, maximizing desk space. The wired-only network configuration provides stable, secure connectivity through Gigabit Ethernet with ASUS LANGuard protection.

Connection Ports:

• 1x DisplayPort (up to 7680x4320 @ 60Hz)
• 1x HDMI (up to 4096x2160 @ 60Hz)
• 2x USB 3.2 Gen2
• 2x USB 3.0
• 2x USB 2.0
• 1x Gigabit Ethernet
• Audio in/out

Pre-Configured & Ready to Deploy

Pre-installed with Windows 11 Pro (bloatware-free), the system includes a Logitech MK120 wired keyboard with waterproof silicone cover and mouse. Built in the UK on an ASUS PRO H610T D4-CSM motherboard, this Corporate Stable Model ensures long-term component availability and support.

Ideal Applications

Designed for home offices, remote work stations, educational environments, alarm systems, door entry management, and security monitoring setups requiring reliable, space-efficient computing. The external 120W power supply and fanless design options ensure quiet operation.

Backed by a 3-year UK mainland warranty covering parts and collection, with expandability options including 2x SATA III ports and additional M.2 slots for future storage upgrades.

Specification:

Operating System: Windows 11 Pro
Processor: Intel i5 12th Gen 6 Core
Memory (RAM): Kingston Technologies 8GB DDR4
Storage:Kingston Technologies 250GB NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 with 4K & DirectX support
Sound: 7.1 Surround Sound
Case: Small Form 1 Liter VESA Mountable
Connections:
1 x DisplayPort
1 x HDMI
2 x USB-A 3.0
2 x USB-A 2.0
2 x USB-A 3.2
1 x Ethernet
1 x Mic In/ Headphone Out
Networking:
Wired: 1Gb Realtek Ethernet
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years - parts and collection included

Product Description
Small Form Factor - Intel i5 12400 6 Core 12 Threads 2.50GHz (4.40GHz Boost), 8GB RAM, 250GB NVMe M.2, Windows 11 Pro - 1L VESA Mountable Small Foot Print for Home or Office Use - Pre-Built PC

Processor
Intel Core i5 12400 2.5GHz 6 Core LGA 1700 Alder Lake Processor, 12 Threads, 4.4GHz Boost, Intel UHD 730 Graphics

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.40GHz

Memory
Kingston ValueRAM 8GB No Heatsink (1 x 8GB) DDR4 2666MHz SODIMM System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV2 (SNV2S/250G) 250GB NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 3000 MB/s, Write 1300 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Sequential Read : 3000MB/s
Sequential Write : 1300 MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Execution Units
24
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
N/A

Operating System
Microsoft Windows 11 Professional 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
1Gb Realtek Ethernet
ASUS LANGuard

Power Supply
External 120w (provided)

Motherboard
Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS

Storage
2 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe

Rear I/O
2 x USB 3.2 Gen2
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x DC Power (Support 19V)

Internal I/O
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC 1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x COM debug
1 x Front Panel Audio
1 x LVDS 1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Chassis
LT100 1 Litre USB3.0 Ultra-Thin Mini-ITX Computer Case

IO Ports
2 x USB 3.0
1 x HD Audio
1 x Microphone

Dimensions
182mm x 36mm x 186mm (W x H x D)

Package Weight
2.55 kg

Warranty
3 Years collect & Return UK Main Land

• Case Style: Mini
• Processor: Intel Core i5
• Processor Cores: 6
• Storage: 250GB
• Memory: 8GB
• Graphics: Intel UHD Graphics 730
• Operating Software: Windows 11 Pro
