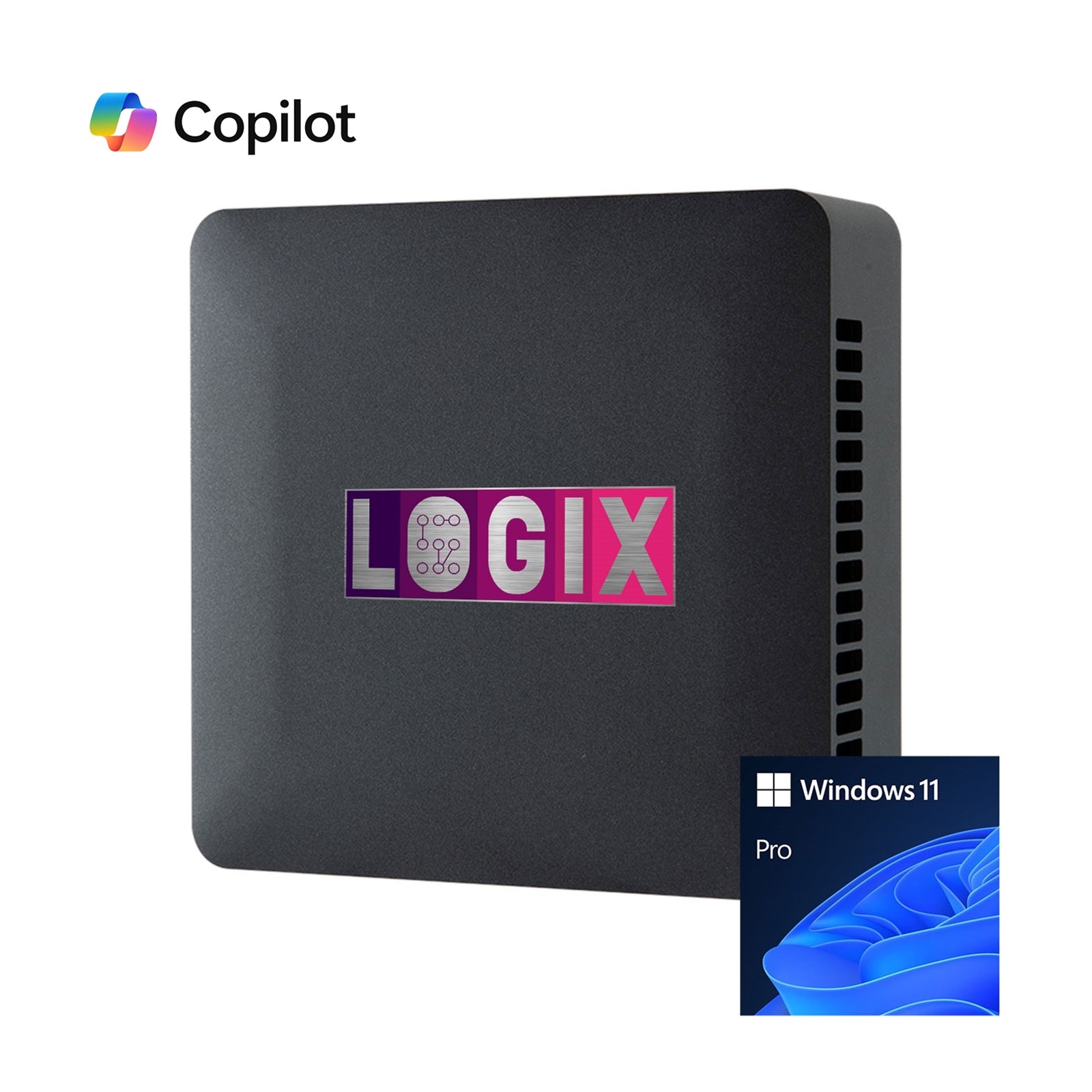

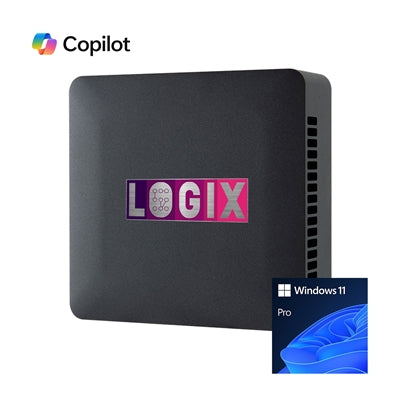

LOGIX Powered by GIGABYTE BRIX - Compact Mini PC for Home Office

The LOGIX mini PC powered by GIGABYTE BRIX delivers professional-grade performance in an ultra-compact 124 x 120 x 49.7mm chassis. Built with the 13th Gen Intel Core i5-1335U processor featuring 10 cores (2 Performance + 8 Efficiency cores) and 12 threads, this system handles demanding workloads with a maximum turbo frequency of 4.6GHz.

Performance Specifications

Equipped with 16GB Kingston DDR4 SO-DIMM memory running at 3200MHz, expandable to 64GB across two slots. The 500GB Kingston NVMe NV3 storage drive provides fast boot times and application loading. Intel Iris Xe Graphics with 96 execution units at 1.25GHz delivers smooth visuals for video conferencing and multimedia tasks.

Professional Connectivity

Multiple display outputs support up to four monitors simultaneously: 2x HDMI 2.1 ports and 2x USB Type-C with DisplayPort 1.4a, each supporting 4K resolution at 60Hz. The Intel i226V 2.5 Gigabit Ethernet port ensures stable wired connections, while Intel AX203 WiFi 6 (802.11ax) and Bluetooth 5.2 provide wireless flexibility across 2.4GHz and 5GHz bands.

Expandability and I/O

Front panel access includes dual USB 3.2 Gen2 Type-A ports, dual USB 2.0 Type-A ports, and a combined headphone/microphone jack. The rear panel features the 2.5GbE RJ45 port, dual HDMI 2.1 outputs, dual USB 3.2 Gen2 Type-C ports with DP alt mode, and a Kensington lock slot. Internal expansion includes an additional 2.5-inch SATA3 bay supporting drives up to 9.0mm thick.

System Details

Pre-installed with Windows 11 Pro 64-bit and powered by a 135W adapter (19.5V / 6.92A). VESA mounting support accommodates both 75x75mm and 100x100mm patterns (bracket sold separately). Realtek ALC269 HD audio chipset provides clear sound output. Operating temperature range: 0°C to +35°C.

Dimension
124 x 120 x 49.7 mm

CPU
13th Gen Intel Core i5-1335U Processor
10 Cores (2P+8E), 12 Threads, 12MB Cache
Frequency up to 4.6GHz(P Core Turbo), 15W

Memory
1 x Kingston 16GB SODIMM 3200MHz
2 Lanes (1 occupied)
Max. 64GB

LAN
2.5 GbE LAN (Intel i226V)

Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics
Intel Iris Xe Graphics, 96EU, 1.25GHz

Audio
Realtek ALC269 HD audio

Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz

Storage
1 x Kingston NVMe NV3 500GB Storage Drive
1 x 2.5 slot for HDD/SSD (9.0mm thick; SATA3) empty slot

Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button

Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In

Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased separately.

Support OS
Microsoft Windows 11 Pro 64bit Pre-installed

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

• Case Style: NUC
• Processor: Intel Core i5
• Processor Cores: 10
• Storage: 500GB
• Memory: 16GB
• Graphics: On-Chip
• Operating Software: Windows 11 Pro
