Nanoleaf 4D Screen Mirror + Lightstrip Kit

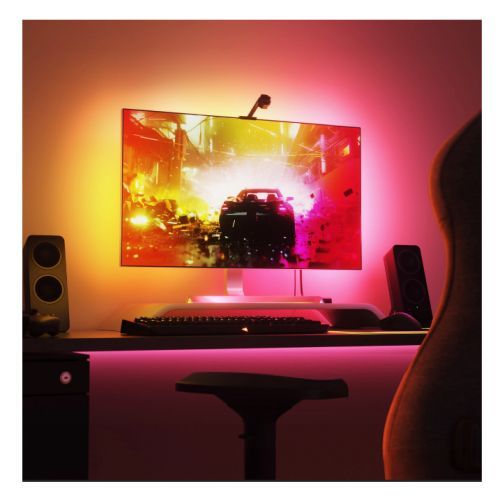

The Nanoleaf 4D transforms your entertainment setup with real-time screen mirroring technology. This kit includes a screen mirror camera, 4-metre addressable gradient lightstrip, and controller that syncs on-screen colors to create an immersive backlighting experience for monitors and TVs up to 65 inches.

Screen Mirroring Technology

The included camera captures on-screen colors and instantly mirrors them to the addressable RGB lightstrip mounted behind your display. With 10 color zones per metre and 30 LEDs per metre, the system delivers precise color matching across 4 immersion levels - from subtle 1D ambient lighting to full 4D direct matching. The camera features flexible positioning above or below your screen, with a magnetic privacy cover for when not in use.

Addressable Gradient Lightstrip

The 4-metre lightstrip features 40 individual color zones with access to over 16 million colors. The trimmable design automatically remaps lighting effects to fit your exact screen dimensions. Corner brackets included for clean installation around rectangular displays. Output: 075 lumens at full 4-metre length, with 7.2W power consumption per metre.

Multiple Control Options

Control via the Nanoleaf mobile app (iOS/Android) or desktop app (Windows/Mac). Compatible with Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, and Razer Chroma for voice and smart home integration. The included controller provides manual operation with adjustable vibrancy settings.

Sync+ Multi-Device Integration

Extend screen mirroring effects across 50+ compatible Nanoleaf RGB devices including Shapes, Lines, Canvas, and Light Panels. Sync+ creates a coordinated lighting experience throughout your entire space based on relative device positioning.

Rhythm Music Visualizer

Activate Rhythm mode to transform any immersion level into a sound-reactive experience. Lights pulse and respond to audio frequencies from music, movies, and games, creating a synchronized audio-visual display.

Technical Specifications

WiFi connectivity via 2.4 GHz b/g/n networks. Three-step calibration process through the Nanoleaf app. Smart remapping automatically adjusts effects when lightstrip is trimmed. IP20 rated for indoor use. 25,000-hour lifetime. Power supply: 200V-240V input, 12V2A output, 24W maximum.

Package Contents

Screen mirror camera with 1.5m cable, camera mount, magnetic privacy cover, Nanoleaf 4D controller, 4-metre addressable gradient lightstrip with 1m cable, power supply with 2m cable, and 4 corner brackets. Controller dimensions: 93.3 x 57.1 x 17mm. Camera dimensions: 31 x 28 x 34mm. Lightstrip dimensions: 12 x 4.8mm.

Description

Specification

• Type: Mirror Lightstrip
• LED Colour: RGB
• Connectivity: WiFi (2.4 GHz b/g/n)
  NOTE: 5GHz networks are not compatible with Nanoleaf products.
• Features: "Screen Mirror Camera Kit
  Backlighting the colours from movies, video games, music etc.
  Colour Channel Configuration: Multicolor RGB
  Resolution: 30 LEDs per metre
  Max Colours: More than 16 million
  Colour Zones: 10 zones per metre
  Luminous Flux per Metre: 075 lumens @ 4 metre
  Dimmability: Yes (via Nanoleaf App, Voice, Controller)
  Trimmable Lightstrip
  Privacy Cover for Camera"
• Compatibility: "For Monitors and TVs up to 65""

  Nanoleaf App:
  Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac)

  Compatibility:
  Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer Chroma

  Click here for user manual"
• Weight: Controller: 66g
  Lightstrip: 50g
  Camera: 60g
• Dimensions: Controller: 93.3 x 57.1 x 17 mm
  Lightstrip: 12 x 4.8 mm @4m
  Camera: 31 x 28 x 34 mm
  Mount: 181.2 x 56.3 x 50 mm
  Corner Brackets: 148.5 x 18 x 17.9 mm
  Camera Cap: 29.9 x 27 x 4.6 mm
  Camera Cable Length: 1.5m
  Lightstrip Cable Length: 1m
  PSU Cable Length: 2m
• Mounting: Camera: Tape at the bottom of the camera OR via TV mount
  Controller: Tape at the bottom of the controller
  Lightstrip: Tape at the back of the Lightstrip
• Power: Input Voltage: 200V-240V
  PSU Output Voltage: 12V2A
  Max Power Supply Power: 24W
  Max Energy Consumption Per metre of LS: 7.2W
• Suitable for Outdoor: No
• Environment: Usage: Indoor
  IP Rating: IP20
• Lifetime: "25,000 hours"
• Package Contents: 1 x Screen Mirror Camera
  Camera Mount
  Magnetic Privacy Cover
  Nanoleaf 4D Controller
  Addressable Gradient Lightstrip
  Power Supply
  4 x Lightstrip Corner Brackets
• Package Type: Retail
• Package Weight: 1.2100 kg
• Warranty: 2 Years
