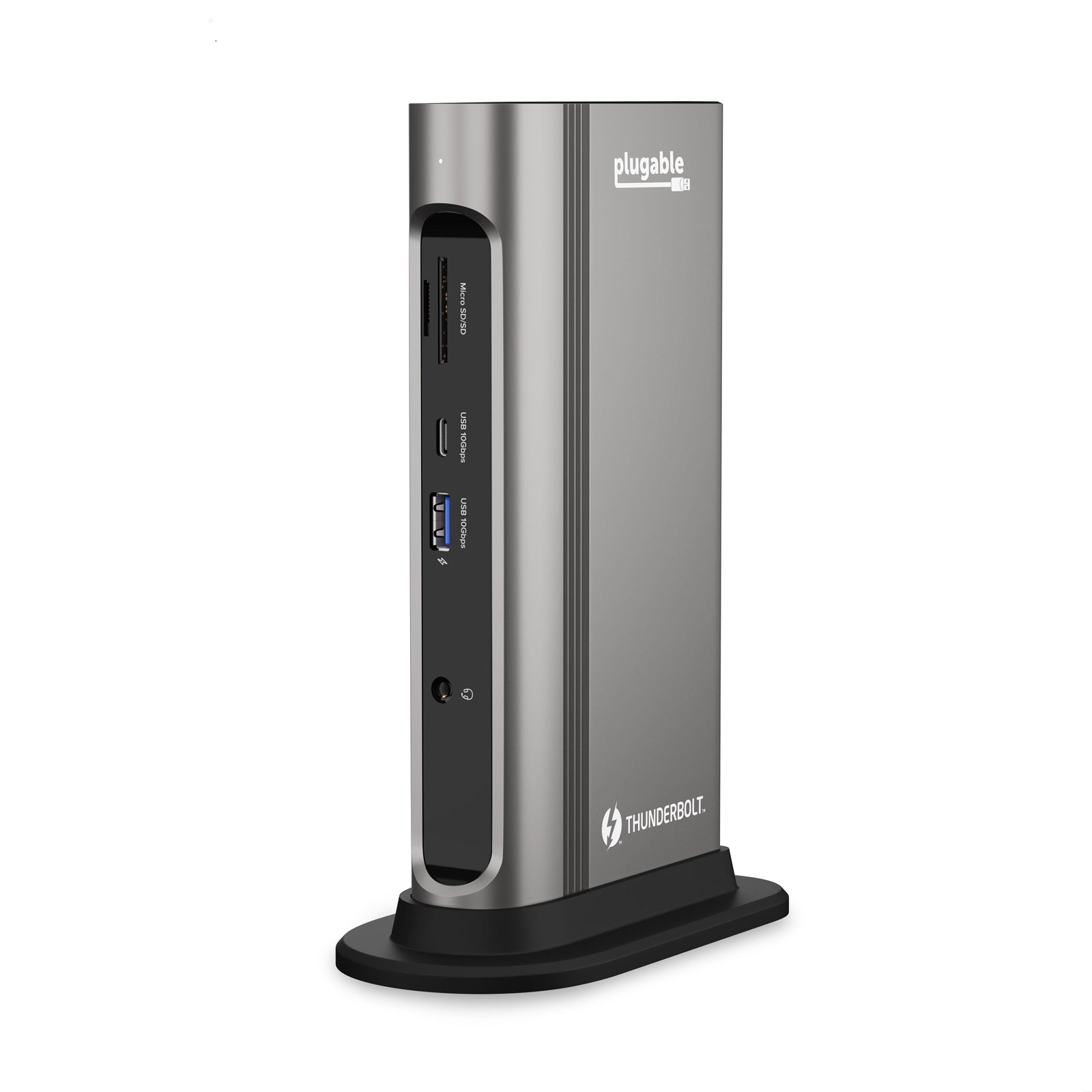

Plugable TBT3-UDZ Thunderbolt 3 and USB-C Docking Station

The TBT3-UDZ delivers professional-grade connectivity through a single Thunderbolt 3 cable. Built on Intel's Titan Ridge chipset, this 14-in-1 docking station provides 40Gbps bandwidth to support dual 4K displays, multiple USB peripherals, and up to 100W Power Delivery for laptop charging.

Dual 4K Display Flexibility

Connect two 4K monitors at 60Hz using any combination of HDMI or DisplayPort connections—no adapters required. This is the first Thunderbolt 3 dock offering both dual HDMI and dual DisplayPort outputs. Thunderbolt 3, Thunderbolt 4, and USB4 systems support dual 4K 60Hz displays. USB-C systems support dual 1080p 60Hz or single 4K 30Hz displays. Note: Base model M1/M2/M3 Macs support only one extended display; M1/M2/M3 Pro/Max models support dual displays.

100W Power Delivery

Delivers up to 100W Power Delivery (96W certified) to charge demanding laptops like the 16" MacBook Pro while powering all connected peripherals. The dock safely adjusts charging rates for laptops with lower power requirements, eliminating the need for separate power adapters.

Comprehensive Port Selection

Front panel features 1x USB-C 10Gbps port and 1x USB-A 10Gbps port for quick access to phones and flash drives. Rear panel includes 5x USB-A 5Gbps ports for keyboards, mice, and other peripherals. Additional connectivity includes Gigabit Ethernet, SD and microSD card readers, and a combination audio jack. All ports connect through the included 2.6ft certified 40Gbps Thunderbolt 3 cable.

Space-Saving Design

Position the dock horizontally or vertically using the included detachable stand. The flexible orientation fits various workspace configurations while maintaining stability with multiple connected cables.

Wide Compatibility

Compatible with Thunderbolt 3, Thunderbolt 4, USB4, and USB-C systems. Supports M1/M2/M3 Pro/Max Macs, Intel Thunderbolt 3 Macs, and Windows systems with Thunderbolt or USB-C ports. Performance on non-Thunderbolt USB-C laptops depends on host system specifications.

Package Contents

Includes TBT3-UDZ docking station, 0.8m 40Gbps Thunderbolt 3 cable, power supply with cable, vertical stand, and quick start guide.

• Dock Type: Desktop
• Connection: ThunderBolt and USB-C
• Monitor Support: 2 Displays
• Compatibility: Windows and Mac
