AMD Ryzen 5 5500 RTX 4060 Gaming PC

This custom-built gaming PC combines the AMD Ryzen 5 5500 processor with NVIDIA GeForce RTX 4060 graphics to deliver reliable performance for 1080p and 1440p gaming. The 6-core, 12-thread processor runs at 3.60GHz with boost speeds up to 4.20GHz, handling modern games and multitasking workloads efficiently.

Graphics and Performance

The Gigabyte RTX 4060 features 8GB GDDR6 memory and 3072 CUDA cores with a 2460 MHz core clock. This graphics card supports ray tracing and DLSS technology, providing smooth frame rates in current AAA titles. The card includes 2x DisplayPort 1.4a and 2x HDMI 2.1 outputs, supporting resolutions up to 7680x4320.

Memory and Storage Configuration

Equipped with 16GB DDR4 RAM running at 3200MHz, this system handles gaming and productivity tasks without bottlenecks. The PNY CS1030 1TB NVMe SSD delivers read speeds up to 2100MB/s and write speeds up to 1700MB/s, ensuring fast boot times and quick game loading. The motherboard supports additional storage expansion with 4x SATA 6Gb/s connectors.

RGB Lighting and Chassis

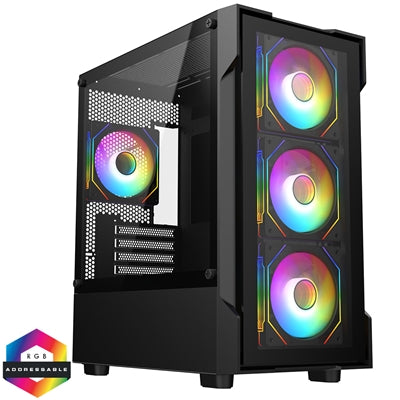

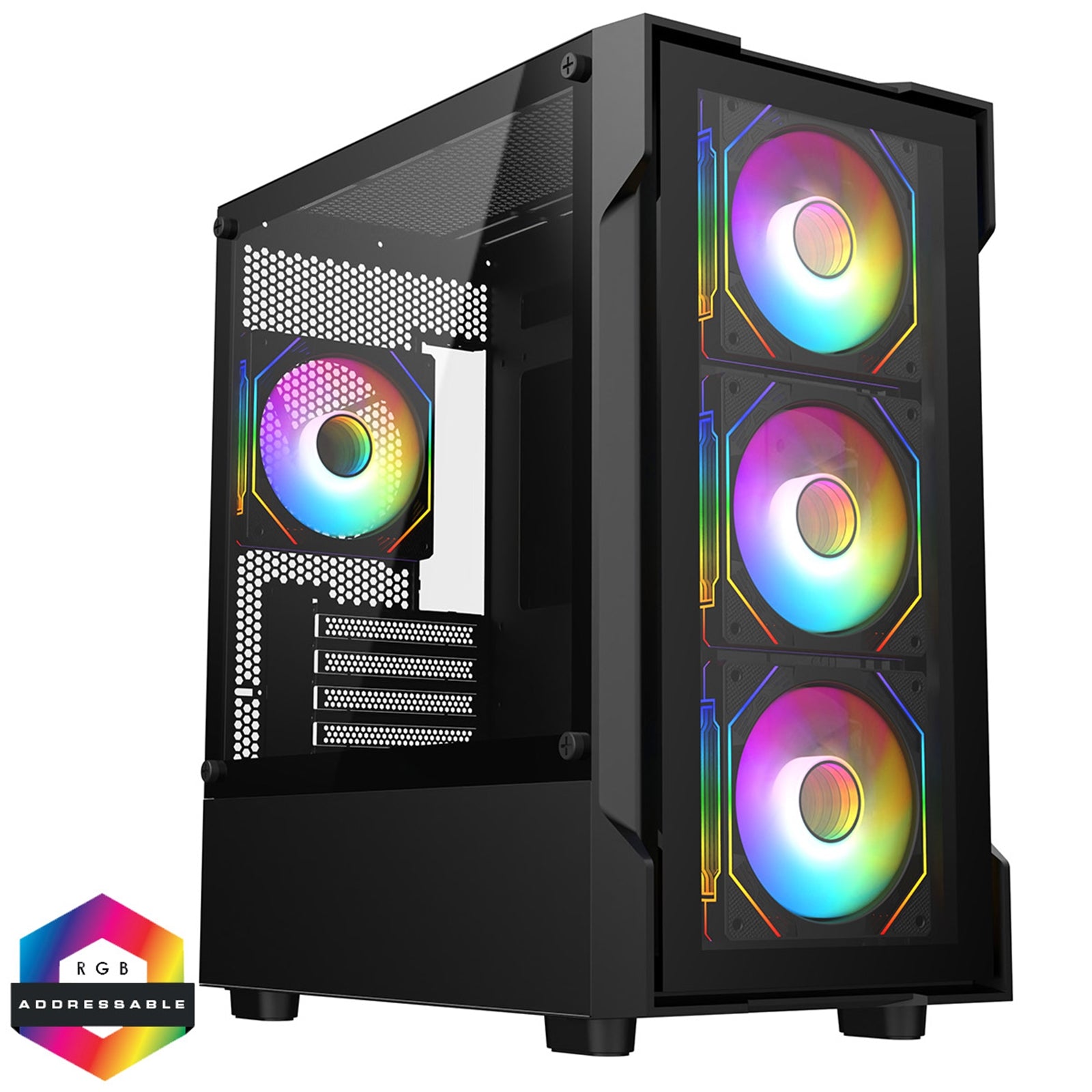

The Bolt Black Micro-ATX case features tempered glass panels with 30% tint and includes 4x 120mm ARGB Infinity fans pre-installed. Three fans are mounted at the front with one at the rear, providing optimal airflow. The case offers space for additional cooling with support for up to 2x 140mm fans at the top and 2x 120mm fans at the bottom.

Connectivity and Expansion

The Gigabyte A520M K V2 motherboard provides comprehensive connectivity through its rear I/O: 4x USB 3.2 Gen 1 ports, 2x USB 2.0 ports, HDMI output, and Gigabit Ethernet. The included Prevo N300 WiFi adapter supports wireless speeds up to 300Mbps with dual 2dBi antennas. The motherboard features 1x PCIe x16 slot for the graphics card and 1x PCIe x1 slot for expansion.

Power and Cooling

The CRONUS 500W 80 PLUS Bronze PSU provides stable power delivery with a 140mm silent cooling fan. The AMD Wraith Stealth cooler keeps the processor running at optimal temperatures during gaming sessions.

System Specifications

Windows 11 ready (operating system not pre-installed). Dimensions: 216mm x 447mm x 396mm. Package weight: 9.2kg. Backed by a 3-year warranty with first-year parts including collect and return service for UK mainland.

RGB Gaming Build - AMD Ryzen 5 5500 6 Core 12 Thread, 3.60GHz (4.20GHz Boost), 16GB RAM, 1TB NVMe, RTX 4060 8GB Graphics, WiFi card - Custom PC

Processor
AMD Ryzen 5 5500 6 Core AM4 Processor, 12 Threads, 3.6GHz up to 4.2GHz Boost, 19MB Cache, 65W, with Wraith Stealth Cooler

Processor Cores
6

Processor Threads
12

Core Clock Speed
3.60GHz

Core Boost Speed
4.20GHz

CPU Cooler
Wraith Stealth Cooler

Memory
Team 16GB (1 x 16GB) 3200MHz DDR4 DIMM System Memory

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
PNY CS1030(M280CS1030-1TB-RB) 1TB M.2 NVMe SSD PCIe Gen3 M.2 Interface, 2280, Read 2100MB/s Write 1700MB/s

Format
NVMe

Max Read/Write Speeds
Up to 2100MB/s
Up to 1700MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte NVIDIA GeForce RTX 4060 D6 8GB GDDR6 Graphics Card,3072 CUDA Cores, 2460 MHz Core Clock, Single Fan
Core Clock
2460 MHz
CUDA Cores
3072
Memory Clock
17 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320

Graphics Card I/O
2 x DisplayPort 1.4a
2 x HDMI 2.1

Operating System
Windows 11 Ready (not installed)

Card Reader
N/A

Networking
Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Prevo 300mbps N300 PCI Express Wireless Adapter
Antenna Type: Omni Directional (RP-SMA) 2 x 2dBi Antennas
Wireless Channel: 2T2R MIMO Support
Wireless Standards: IEEE 802.110, IEEE 802.11g, IEEE 802.11b
Frequency: 2.412 - 2.472GHz
Signal Rate: 110 300Mbps, 11g 54Mbps, 11b 111Mbps
Wireless Security: Supports 64/128bitWEP, WPA-PSK, WPA2-PSK

Power Supply
CRONUS 500ATV FX PRO 500W PSU, 140mm Silent Cooling Fan, 80 PLUS Bronze, Non Modular, Flat Black Cables, Supreme Performance
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e

Motherboard
Gigabyte A520M K V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

Chassis
Bolt Black Micro-ATX Gaming Case With 4 x 120mm ARGB Infinity Fans and Tempered Glass Panels With 30 Percent Tint

Drive Bays
3 x 3.5" Internal
4 x 2.5" Internal

IO Ports
Power
1 x USB 3.0
2 x USB 2.0

Cooling
Cooling Front:Space For 3 x 120mm or 2 x 140mm Fans (3 x 120mm ARGB Infinity Fans Included)
Cooling Top:Space For 2 x 120mm or 2 x 140mm Fans
Cooling Rear:Space For 1 x 120mm Fan (1 x 120mm ARGB Infinity Fan Included)
Cooling Side:None
Cooling Bottom:Space For 2 x 120mm Fans - PSU Shroud

Dimensions
216mm x 447mm x 396mm (W x H x D)

Package Weight
9.2 kg

Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
