AMD Ryzen 5 7600X3D Gaming Desktop with RTX 3060 Graphics

This gaming PC features the exclusive AMD Ryzen 5 7600X3D processor with 3D V-Cache technology, delivering exceptional gaming performance across modern titles. The 6-core, 12-thread processor runs at 4.10GHz base clock with boost speeds up to 4.70GHz, backed by 96MB of L3 gaming cache for reduced latency and improved frame rates.

Graphics and Display Performance

The Gigabyte NVIDIA GeForce RTX 3060 WINDFORCE OC graphics card provides 12GB GDDR6 memory and 3584 CUDA cores, handling 1080p and 1440p gaming with ray tracing capabilities. With a 1792 MHz core clock and 360 GB/s memory bandwidth, this GPU delivers smooth gameplay across AAA titles. Dual DisplayPort 1.4a and dual HDMI 2.1 outputs support multi-monitor configurations.

Memory and Storage Configuration

Equipped with 16GB Adata XPG Lancer Blade DDR5 RAM running at 5600MHz, this system handles multitasking and memory-intensive applications efficiently. The single 16GB module leaves one DIMM slot available for future expansion. The Kingston NV3 1TB NVMe PCIe Gen4 SSD delivers read speeds up to 6000MB/s and write speeds up to 4000MB/s, ensuring rapid game loading and system responsiveness.

Cooling and Power

The DeepCool AG500 BK ARGB CPU cooler features five heat pipes and a 120mm PWM addressable RGB fan, providing 240W heat dissipation capacity. The system is powered by a DeepCool PF400 80 PLUS Standard 400W PSU with 85% efficiency and flat black cables for clean cable management.

Motherboard and Connectivity

The Gigabyte A620M H motherboard supports the AM5 socket with two DDR5 slots and one M.2 socket for storage expansion. Rear I/O includes four USB 2.0 ports, two USB 3.2 Gen 1 ports, DisplayPort, HDMI, Gigabit Ethernet, and audio jacks. Four SATA 6Gb/s connectors provide additional storage options.

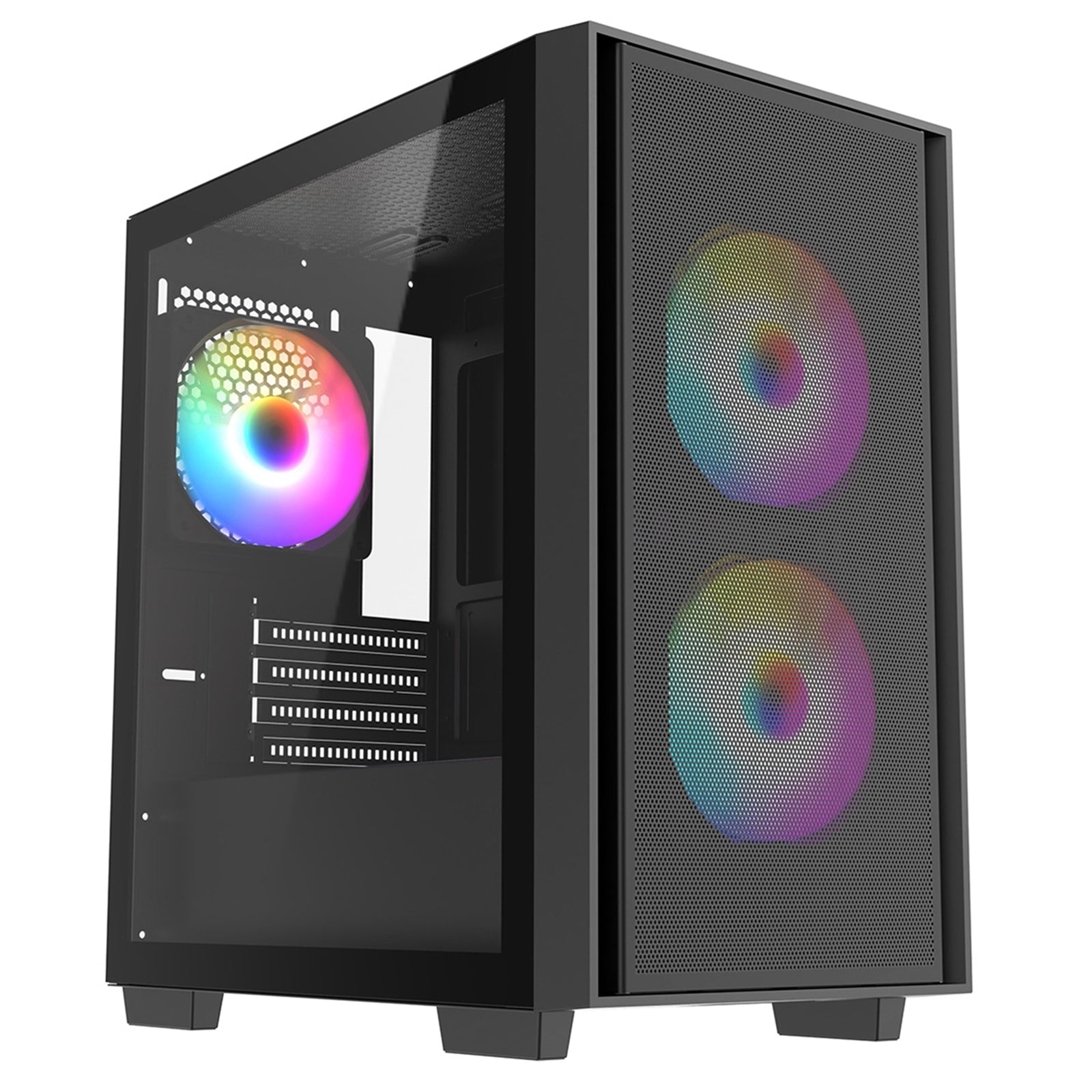

RGB Gaming Chassis

Housed in the CRONUS Atlas micro tower case with tempered glass side panel, the system showcases three pre-installed 120mm ARGB linked fans (two front, one rear). The case supports additional cooling with space for 2x 120mm or 140mm fans at the front and top. Front panel connectivity includes one USB 3.0 and two USB 2.0 ports with HD audio support.

Warranty and Support

Backed by a 3-year warranty with first-year parts including collect and return service, plus two additional years of labour warranty (UK mainland only).

Specification:


Processor
AMD Ryzen 5 7600X3D 4.10GHz 6 Core AM5 Processor, 12 Threads, 4.70GHz Boost 96MB L3 Gaming Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
4.10GHz

Core Boost Speed
4.70GHz

CPU Cooler
DeepCool AG500 BK ARGB Fan CPU Cooler, Universal Socket, Fine-Tuned 120mm PWM Addressable RGB Fan, 1850RPM, 5 Heat Pipes, 240W Heat Dissipation Power, Unique Matrix Fin Design

Memory
Adata XPG Lancer Blade AX5U5600C4616G-SLABBK 16GB U-DIMM System Memory DDR5, 5600MHz

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280

Format
NVMe

Max Read/Write Speeds
Up to 6000MB/s
Up to 4000MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte NVIDIA GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0) Graphics Card, 12GB GDDR6, 3584 CUDA Cores, 1792 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s

Graphics Card I/O
2 x DisplayPort 1.4a
2 x HDMI 2.1

Operating System
Not Supplied

Card Reader
N/A

Networking
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 3
4 Pin Peripheral x 1

Motherboard
Gigabyte A620M H Ultra Durable AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

Expansion Slot
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Rear I/O
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Chassis
CRONUS Atlas Case, Gaming, Black, Micro Tower, 1 x USB 3.0 / 2 x USB 2.0, Tempered Glass Side Window Panel, Addressable RGB LED Fans, Micro ATX

Drive Bays
3.5" (HDD): 2
2.5" (SSD): 2

IO Ports
Buttons: Power & LED Buttons
USB Ports:
USB 2.0: 2
USB 3.0: 1
Audio Support: HD Audio

Cooling
Front: 2 x 120mm or 2 x 140mm Fans (2 x 120mm ARGB Linked Fans Included)
Top: 2 x 120mm or 2 x 140mm Fans
Rear: 1 x 120mm Fan (1 x 120mm ARGB Linked Fan Included)

Dimensions
Width: 216mm
Height: 405mm
Depth: 365mm

Package Weight
9.2 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)

• Case Style: RGB Gaming Tower
• Processor: AMD Ryzen 5
• Processor Cores: 6
• Storage: 1TB
• Memory: 16GB
• Graphics: RTX3060 12GB
• Operating Software: No
