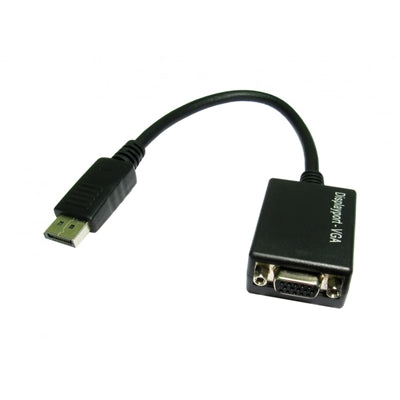

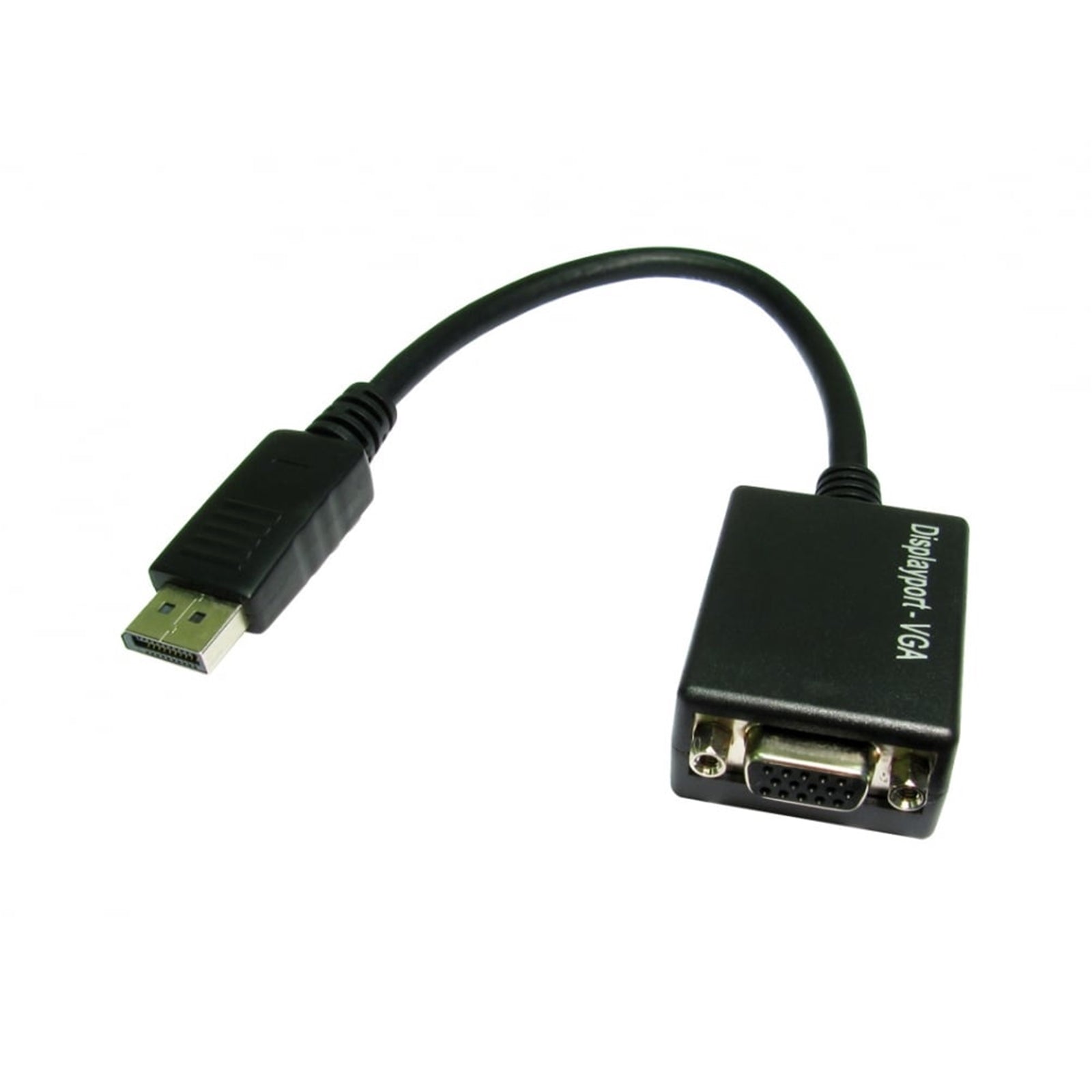

DisplayPort to VGA Adapter Cable - 0.15m Converter

This DisplayPort to VGA adapter cable provides a reliable solution for connecting DisplayPort-equipped computers and graphics cards to VGA monitors and displays. The 0.15m cabled adapter features a DisplayPort 1.2 male connector on one end and a VGA female connector on the other, enabling seamless compatibility between modern DisplayPort sources and legacy VGA displays.

Technical Specifications

The adapter supports DisplayPort v1.1 compliance and delivers maximum resolutions up to 2048 x 1152 at 24-bit colour depths. It handles 1080p content at both 50hz and 60hz refresh rates, making it suitable for high-definition video playback and professional display applications. The converter supports video bandwidth up to 10.8Gbps and accommodates both 8-bit and 10-bit deep colour processing.

DisplayPort is a 20 pin connector similar to HDMI but designed to replace DVI/VGA. The standard was put forward by VESA to define a new royalty free audio/video connection. This adapter converts the digital DisplayPort signal to an analog VGA signal, though due to VGA restrictions, audio transmission is not supported through this connection.

Plug and Play Functionality

The adapter offers plug and play capabilities with no driver installation required. It complies with existing VESA and Consumer Electronics Association standards, ensuring broad compatibility across different systems and displays. The black housing provides a professional appearance suitable for office and commercial environments.

Key Features

• Cable length 150mm
• DisplayPort v1.1 Compliant
• Supports 2048 x 1152 resolutions at 24-bit colour depths
• Compliant with existing VESA and Consumer Electronics Association standards
• Plug and play capabilities
• Supports up to and including 1080p at 24bpp, 50/60hz at a maximum cable length of 15 metres
• Can be used to convert from DisplayPort signal to a VGA signal
• Supports 8-bit and 10-bit deep colour
• Supports video bandwidth up to 10.8Gbps

Connection Details

Connection 1: DisplayPort 1.2 (M)
Connection 2: VGA (F)
Length: 0.15m cabled adapter

• Connection A: DisplayPort (M)
• Connection B: VGA (F)
• Length: Adapter
• Colour: Black
