Tecware Forge M Omni Micro-ATX Case with Key-Lockable Security

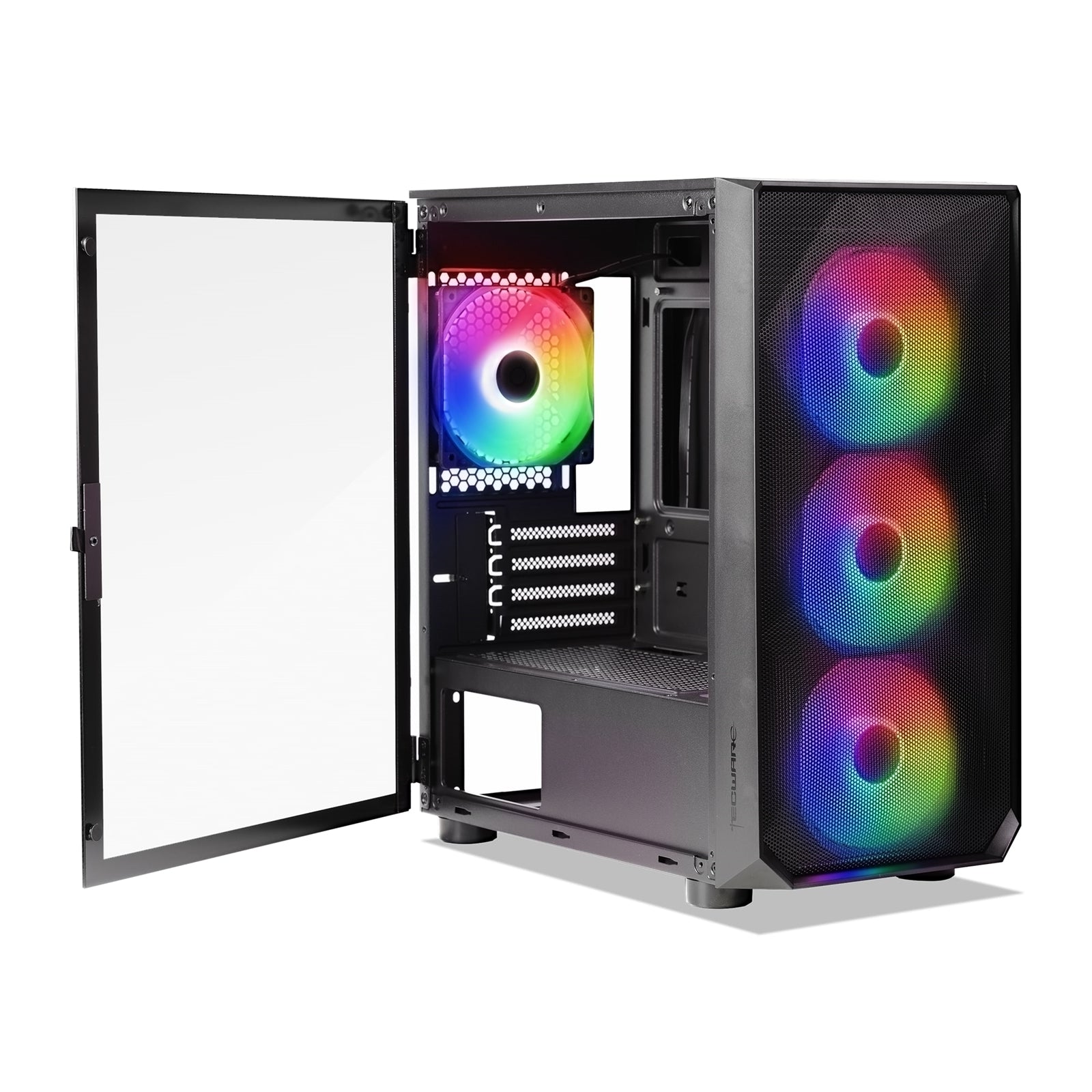

The Tecware Forge M Omni (TWCA-FORGEM-BKOL) is a compact micro-ATX chassis engineered for builders who demand both thermal performance and physical security. This case features a hinged tempered glass side panel with key-lock mechanism, providing secure access while showcasing your build through crystal-clear viewing.

High-Airflow Mesh Design with Pre-Installed Cooling

Built with a polyhedral mesh front panel, the Forge M Omni maximizes airflow from intake to exhaust. Four 120mm black fans come pre-installed—three positioned at the front for intake and one at the rear for exhaust—delivering optimal cooling performance immediately upon installation. The case supports up to six fans total, with expansion options across front, top, and rear mounting positions.

Micro-ATX and Mini-ITX Compatibility

This chassis accommodates both Micro-ATX and Mini-ITX motherboards with generous internal clearances: up to 315mm for graphics cards, 160mm for CPU coolers, and 180mm for power supplies when using the HDD cage. Seven PCIe expansion slots provide flexibility for multi-GPU configurations and additional expansion cards.

Storage and Cable Management

The Forge M Omni includes versatile drive bay configurations: one 3.5" internal bay, one removable 3.5"/2.5" cage, and two mounted 2.5" bays. A dedicated 22mm cable management space behind the motherboard tray ensures clean cable routing and improved airflow. Magnetic dust filters on the top panel and bottom PSU area simplify maintenance.

Radiator Support and Liquid Cooling Options

For liquid cooling enthusiasts, the case supports radiators up to 240mm at the front, 120mm at the rear, and 120mm/240mm at the top (when fans are not installed). This flexibility accommodates both AIO coolers and custom loop configurations.

Front I/O and Connectivity

Front panel connectivity includes two USB 3.0 SuperSpeed ports and HD Audio combo jack for headphone and microphone connections, providing convenient access without reaching behind your desk.

Physical & Structural
Model:
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)

Form Factor:
MicroATX & Mini-ITX compatible

Weight:
Around 4.9 kg

Construction Materials:
Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space

Cooling & Fans
Included fans:
4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)

Fan capacity:
Supports up to 6 fans total (front, top, rear)

Airflow design:
Full mesh front and multiple vents ensure high air intake and efficient thermal performance

Motherboard & Internal Clearance
Motherboard support:
Micro ATX and Mini ITX

GPU clearance:
Up to approximately 315 mm in length

CPU cooler clearance:
Up to approximately 160 mm

PSU compatibility:
Supports PSUs up to ~180 mm length (with HDD cage)

Drive Bays & Expansion
Drive bay configuration:
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)

Expansion slots:
7 x PCIe slots

Front I/O
Ports:
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)

Radiator & Cooling Support
Radiator support:
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)

Security & Design Features
Key-lockable tempered glass side panel:
Enhances physical security while granting easy access via hinge mechanism

Maintenance features:
Magnetic top dust filter and bottom PSU filter for easy cleaning

Cable management:
22 mm routing space for clean internal layout

Drive Bays
1 x 3.5
1 x 3.5/2.5
2 x 2.5

Included Fans
4 x 120 mm (3 front, 1 rear)

Max Fans Supported
Up to 6 fans

Radiator Support
Front: 120/240 mm; Top: 120/240 mm; Rear: 120 mm

I/O Ports
2 x USB 3.0, HD Audio

Security Feature
Hinged tempered glass with key lock

Filters
Magnetic top + bottom PSU filters

Cable Management
22 mm space

Dimensions
~379 x 205 x 429 mm

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Tempered Glass
