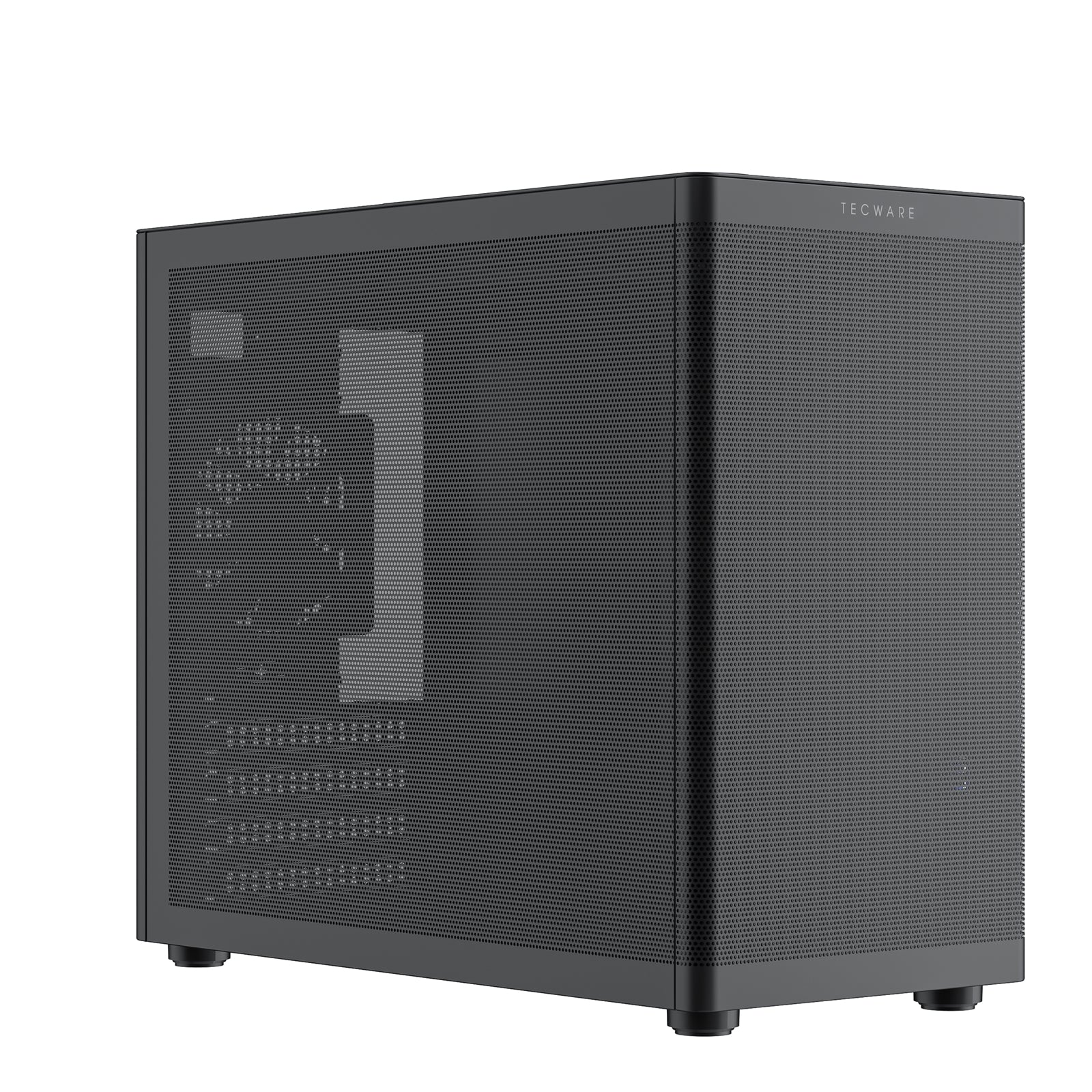

TecWare Fusion 3 MATX Compact Mesh Case

The TecWare Fusion 3 MATX Compact Mesh Case (TWCA-FUS3-BK) delivers high-performance cooling in a space-efficient steel chassis designed for mATX and Mini-ITX builds. This SFF case features a mesh front panel for unrestricted airflow and comes with three pre-installed fans to keep your components running cool.

Top-Mounted PSU Design

The top-mounted PSU layout maximizes internal space efficiency while supporting both ATX and SFX power supplies up to 150mm in length. This configuration optimizes cable routing and improves overall system organization in compact builds.

Comprehensive Cooling Support

Pre-configured with 2x 120mm top fans and 1x 90mm rear fan, the Fusion 3 provides immediate cooling performance out of the box. The case supports additional cooling configurations including bottom-mounted fans and dual radiator setups for custom water cooling enthusiasts.

Hardware Compatibility

Despite its compact 168 x 302 x 350mm footprint, this case accommodates GPUs up to 280mm in length and CPU coolers up to 140mm in height. Four full-size expansion slots provide flexibility for multi-GPU configurations or additional expansion cards. Storage options include 1x 3.5" HDD bay and 1x 2.5" SSD bay with 15-20mm cable management depth.

Modern Connectivity

Front panel I/O includes USB-C, USB 3.0, and HD Audio ports for convenient access to modern peripherals and devices.

Compact design with mesh intake for maximum airflow
Top-mounted PSU for efficient space management
Pre-installed fans: 2 x 120mm (top) + 1 x 90mm (rear)
Supports mATX and ITX motherboards
USB-C and USB 3.0 front panel connectivity

Case Specifications

Form Factor
Micro ATX

Motherboard Support
Micro ATX
Mini-ITX

PSU Support
ATX / SFX

PSU Location
Top-mounted

Body Material
Steel, Plastic, Mesh

Front Bezel Material
Mesh

Side Panel
Steel (non-tempered glass)

Internal Cable Management Depth
Approx. 15–20mm

Drive Bays
1 x 3.5" HDD
1 x 2.5" SSD

Expansion Slots
4 x Full Size

Cooling
Top: 2 x 120mm (Included)
Rear: 1 x 90mm (Included), supports 80mm
Bottom: Up to 2 x 120mm (1 x 120mm if HDD installed)

IO Ports
1 x USB 3.0
1 x USB-C
1 x HD Audio

GPU Max Length
280mm

CPU Cooler Maximum Height
140mm

PSU Max Length
150mm

Front Bezel Colour
Black (Mesh)

Body Colour
Black

PSU Included
No

Dimensions (W x H x D)
168 x 302 x 350 mm

Weight
Approx. 3.5kg

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 1
• Side Panel: Solid
