TecWare Timber High Airflow ATX Case with Wood Front Panel

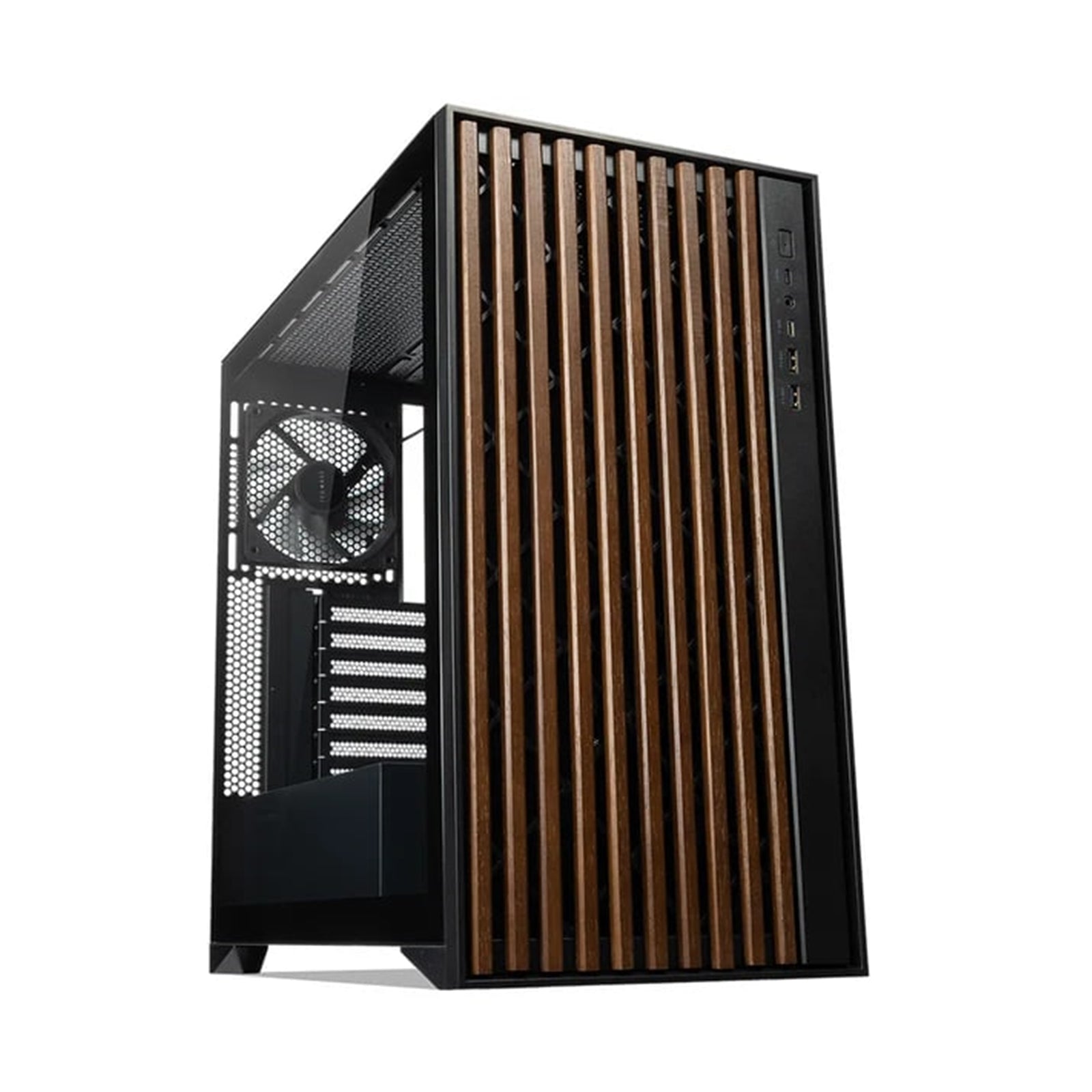

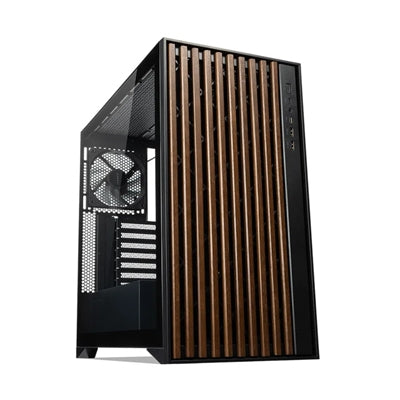

The TecWare Timber combines natural wood aesthetics with high-performance cooling in a mid tower form factor. Featuring a distinctive wood-cut bar front panel over mesh intake, this case delivers both visual appeal and thermal efficiency for ATX, Micro ATX, and Mini-ITX builds.

Pre-Configured Cooling System

Ships with 4x120mm fans pre-installed (3 front, 1 rear) for immediate airflow performance. Supports up to 10 total fans with mounting positions on front, top, rear, bottom, and PSU shroud. Compatible with 360mm radiators on both front and top for extensive water cooling configurations.

Tool-Free Construction

All panels utilize snap-on design for quick access without screwdrivers. Both tempered glass side panels remove instantly, streamlining component installation and maintenance. The tool-free system extends to drive mounting and expansion slots.

Generous Component Clearance

Accommodates GPUs up to 400mm length, CPU coolers up to 181mm height, and PSUs up to 260mm length. Includes 4x3.5" HDD bays and 4x2.5" SSD bays with 7 full-size expansion slots for multi-GPU setups or additional expansion cards.

Modern I/O Connectivity

Front panel features 2xUSB 3.0 ports, 1xUSB Type-C port, and HD audio jack for current peripheral compatibility. Bottom-mounted PSU design with dedicated shroud keeps cable management clean and maximizes airflow to core components.

Technical Specifications

Dimensions: 235 x 450 x 456mm | Weight: 6.0kg | Materials: Steel chassis, tempered glass panels, wood-effect front accent | Cooling: Front 3x120mm/140mm or 2x160mm, Top 3x120mm/2x140mm, Rear 1x120mm/140mm, Bottom 1x120mm, Shroud 2x120mm | Radiator Support: 120/240/360mm front and top mounting

The Timber case balances natural design elements with practical PC building features, suitable for air cooling enthusiasts and custom loop builders requiring extensive radiator support in a mid tower footprint.

Case Specifications
Form Factor
ATX

Motherboard Support
ATX
Micro ATX
Mini-ITX

PSU Support
Standard ATX

PSU Location
Bottom

Body Material
Steel, Plastic, Tempered Glass

Front Panel
Wood-cut bar design over mesh intake

Side Panel
Tempered Glass (Tool-less Snap-On Design)

Drive Bays
4 x 3.5" HDD
4 x 2.5" SSD

Expansion Slots
7 x Full Size

Cooling Support
Front: 3 x 120mm (Included) / 3 x 140mm / 2 x 160mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm (Included) / 1 x 140mm
Bottom: 1 x 120mm
Shroud: 2 x 120mm

Radiator Support
Front: 120mm / 240mm / 360mm
Top: 120mm / 240mm / 360mm

I/O Ports
2 x USB 3.0
1 x USB Type-C
1 x HD Audio

GPU Max Length
400mm

CPU Cooler Max Height
181mm

PSU Max Length
260mm

Tool-Free Design
Yes — All panels snap into place (no screws needed)

Dimensions (W x H x D)
235 x 450 x 456 mm

Weight
Approx. 6.0kg

• Form Factor: Mid Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: Timber
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
