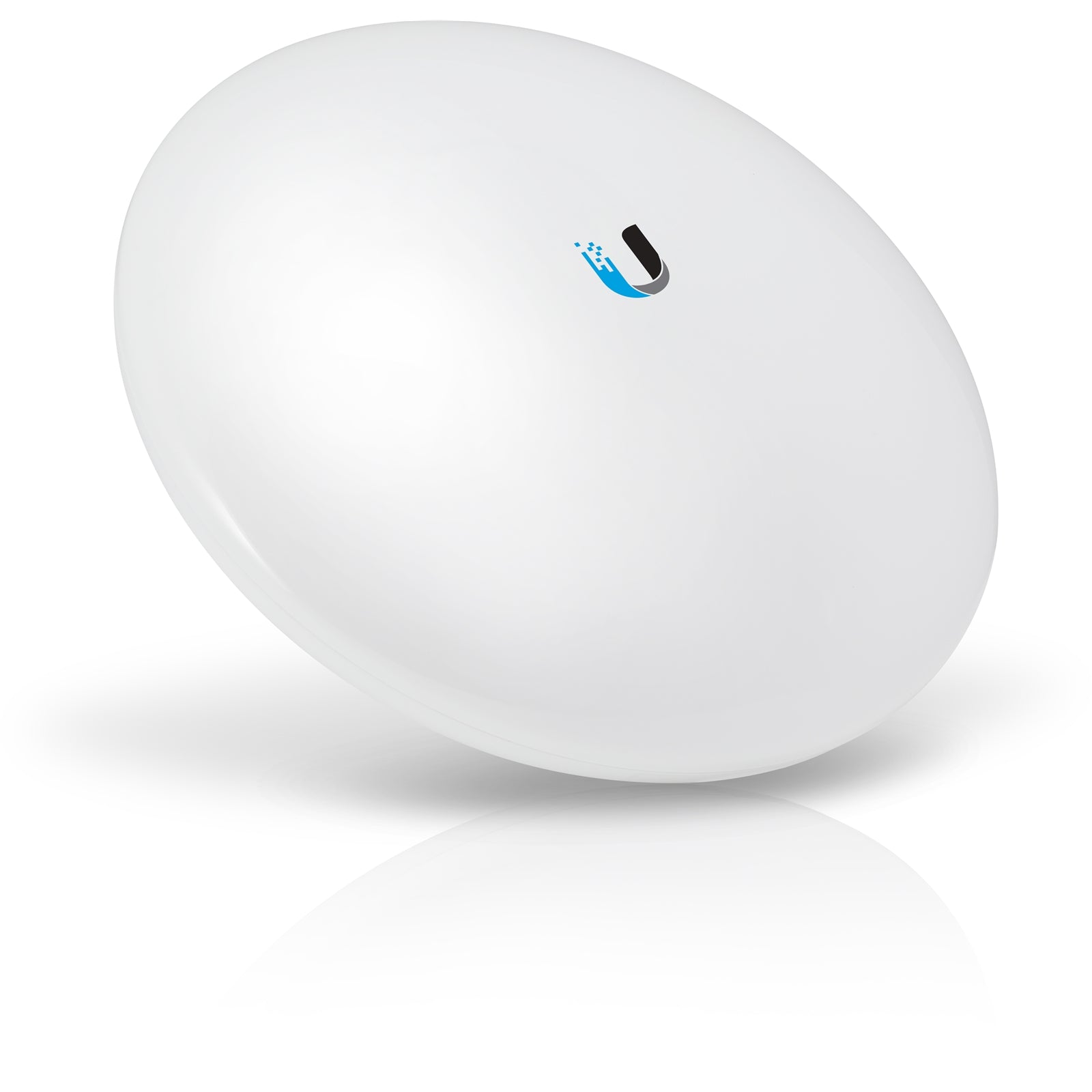

Ubiquiti NanoBeam 5AC Gen2 - High-Performance Outdoor Wireless Bridge

The Ubiquiti NBE-5AC-GEN2 NanoBeam 5AC Gen 2 combines innovative industrial design with proprietary airMAX AC technology, delivering maximum performance in a compact footprint ideal for CPE deployments and point-to-point wireless bridge applications.

Key Technical Specifications

• Type: CPE
• Speed: 450+ Mbps
• POE Capability: 24v
• Range: 15+ km
• Antenna Gain: 19 dBi

Integrated Management Wi-Fi Radio

The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device, streamlining the installation process without requiring direct ethernet connection during configuration.

Enhanced Protection and Reliability

The NanoBeam AC features improved surge protection with enhanced defense against ESD events, ensuring reliable operation in challenging outdoor environments where electrical interference is common.

Superior Processing with Custom Silicon

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, supporting the high data rates and dense modulation used in airMAX AC technology for optimal throughput performance.

19 dBi Antenna Beam Performance

The NanoBeam AC features the highest gain antenna for its size category. The 19 dBi directional beam provides exceptional performance in high-noise environments, making it ideal for long-range point-to-point links up to 15+ kilometers.

airMAX AC Technology Performance

airMAX AC products offer improved latency, noise immunity, scalability and significantly increased throughput performance. Ubiquiti's airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Flexible Mounting Installation

The NanoBeam AC mounts to poles or walls with three-axis alignment freedom. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting, making installation straightforward across various deployment scenarios.

airOS 8 Operating System

airOS 8 provides powerful features, including airMAX AC protocol support, real-time RF analytics, and an all-new design for enhanced usability, giving network administrators comprehensive control and monitoring capabilities.
