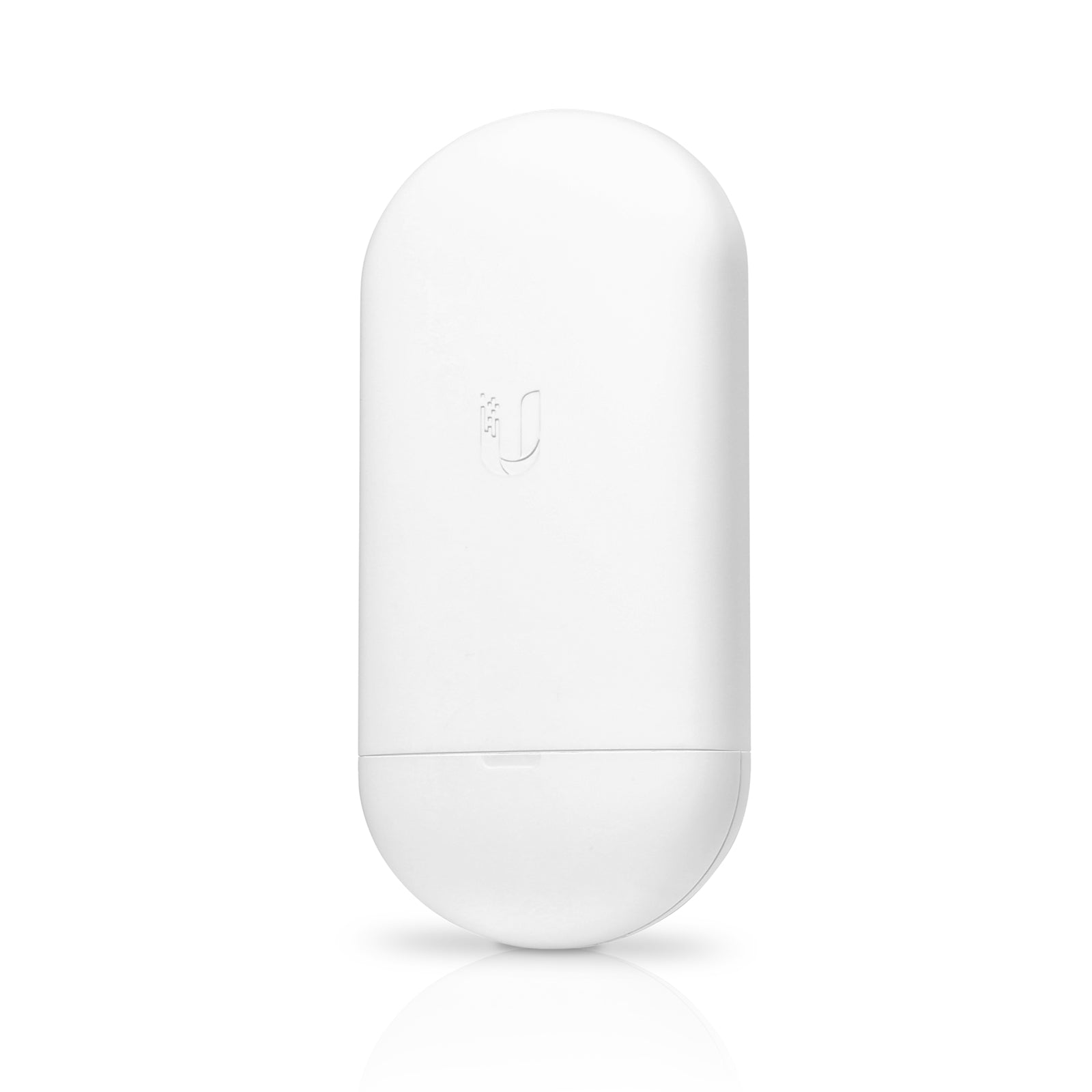

Ubiquiti NanoStation AC Loco 5GHz Outdoor Wireless Bridge

The Ubiquiti NS-5ACL NanoStation AC Loco delivers high-performance outdoor wireless connectivity for point-to-point and point-to-multipoint deployments. This compact 5GHz CPE combines airMAX AC technology with a 13dBi integrated antenna to provide reliable long-range wireless bridging for WISPs, enterprise networks, and remote connectivity applications.

airMAX AC Technology

Built on the proven airMAX platform, the NanoStation AC Loco features 802.11ac Wave 2 technology delivering 450+ Mbps real-world throughput. The 5GHz frequency band provides interference-free operation with transmission distances exceeding 15 kilometers in optimal conditions. This makes it ideal for connecting remote buildings, surveillance systems, or extending network coverage across challenging terrain.

Dedicated Management Wi-Fi Radio

Each NanoStation AC Loco integrates a separate Wi-Fi radio specifically for device management and configuration. This dedicated management interface allows fast setup using your mobile device without requiring physical access to the unit once installed. Configure, monitor, and troubleshoot your wireless links remotely through the intuitive airOS interface.

Compact Industrial Design

The NanoStation AC Loco features a sleek, weatherproof enclosure designed for permanent outdoor installation. Enhanced ESD protection safeguards against electrostatic discharge events common in outdoor environments. The compact form factor minimizes wind loading while the integrated 13dBi directional antenna eliminates the need for external antenna connections.

airOS Operating System

Powered by airOS, the NanoStation AC Loco provides advanced features including real-time RF analytics, spectrum analyzer tools, and comprehensive network diagnostics. The redesigned interface streamlines configuration and monitoring tasks while supporting the airMAX AC protocol for optimal performance in high-density deployments.

Technical Specifications

5 GHz airMAX ac CPE

The indoor/outdoor NanoStation AC loco is a compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS
airOS provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Model: Loco5AC
Frequency: 5 GHz
Throughput: 450+ Mbps
Range: 15+ KM
Management Radio: Yes
PoE PSU Included: No
802.3af Support: No
Secondary Ethernet Port with PoE Out: No

• Type: CPE
• Speed: 450+ Mbps
• POE Capability: 24v
• Range: 10+ km
• Antenna Gain: 13 dBi
