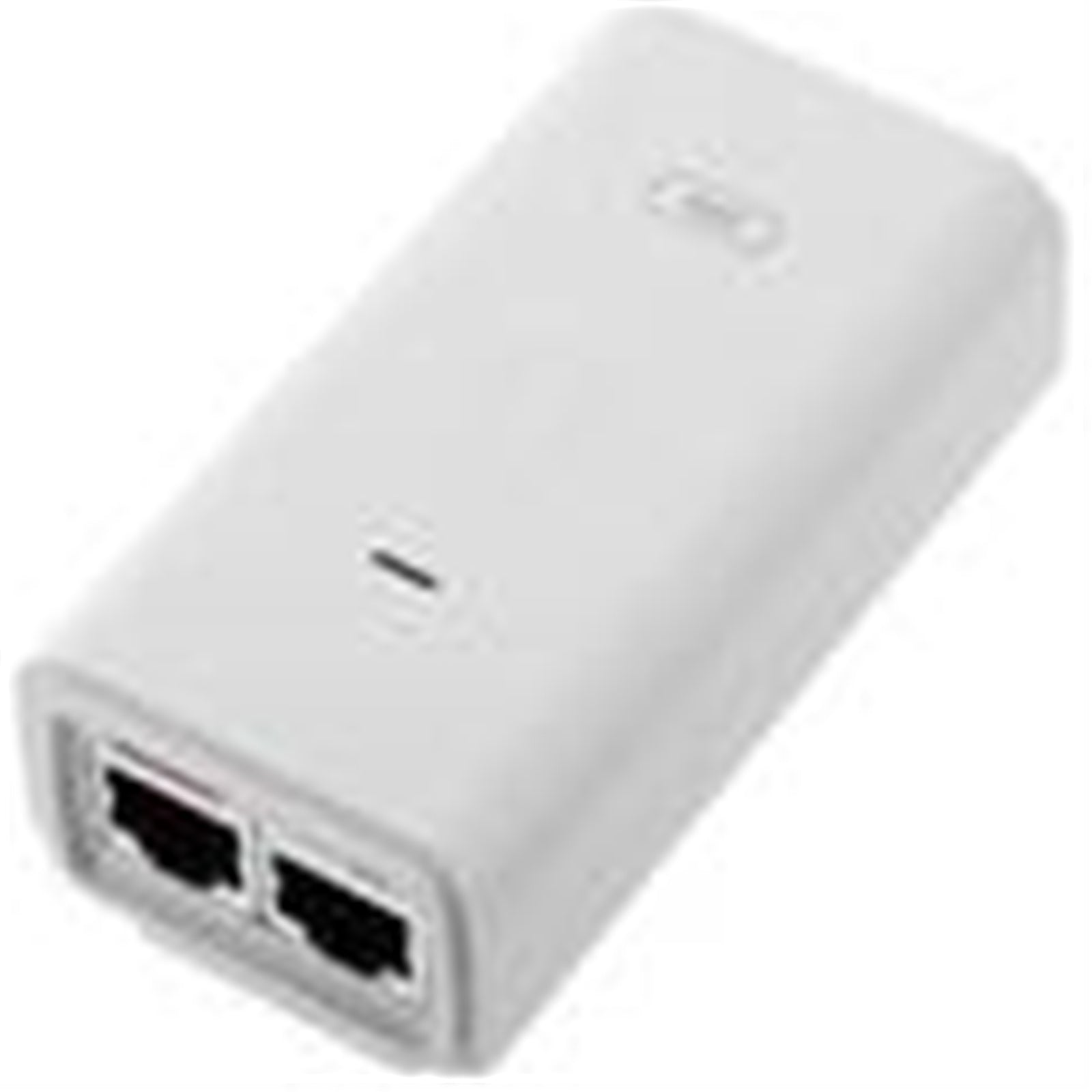

Ubiquiti POE-24-12W-WH 24V 12W Fast Ethernet PoE Injector

The Ubiquiti Networks POE-24-12W-WH is a reliable Power over Ethernet adapter designed to power Ubiquiti PoE devices through a single Ethernet cable. This white injector delivers 24V at 0.5A with a maximum power consumption of 12W, making it compatible with most Ubiquiti networking equipment.

Compatible Ubiquiti Product Lines

This PoE injector works seamlessly with multiple Ubiquiti device families including airFiber, airMAX, EdgeMAX, mFi, UniFi AP, UniFi Protect/airVision, UniFi LED, and UFiber products. Always verify PoE compatibility in your device specifications before use.

airGateway Compatibility

The POE-24-12W-WH is specifically designed to work with airGateway models, compact CPE gateways with built-in Wi-Fi that connect subscriber networks to WISP networks. Compatible with airGateway Standard (internal antenna), airGateway Pro (dual-band Wi-Fi with internal antenna), and airGateway-LR (long-range Wi-Fi with external antenna). Maximum LAN port speed with airGateway is 100 Mbps.

Advanced Protection Features

Built-in protection mechanisms safeguard your connected devices from electrical damage. The injector includes surge protection, clamping protection, maximum surge discharge capability, and peak pulse current protection. The AC cable features earth ground connection for enhanced safety. Electrostatic discharge (ESD) protection is crucial for outdoor device longevity, and this grounded PoE adapter provides effective ESD damage prevention when used with TOUGHCable and TOUGHCable Connectors.

Technical Specifications

Ethernet Ports: 1x input port for Ethernet, 1x output port combining Ethernet with electrical current

Power Delivery: 24V at 0.5A, 12W maximum consumption

Input Voltage: 90-260V AC

AC Connector: IEC-320 C6

Compliance: IEC 60950-1:2005 + A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B

Dimensions: 4.6 x 8.9 x 3.3 cm

Weight: 1.0 kg gross weight

Product Features

• Product Type: POE Injector
• POE Capability: 24v
• Device Support: Universal

The white finish of the POE-24-12W-WH allows for clean, professional installations in visible locations. The compact form factor ensures easy placement in equipment racks or wall-mounted configurations without consuming excessive space.
