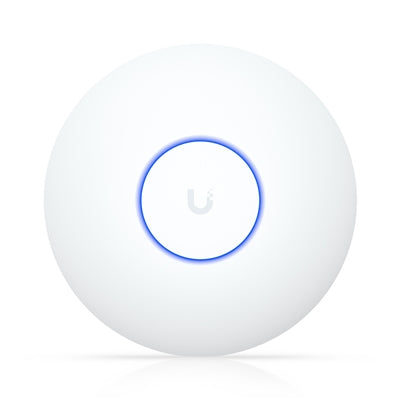

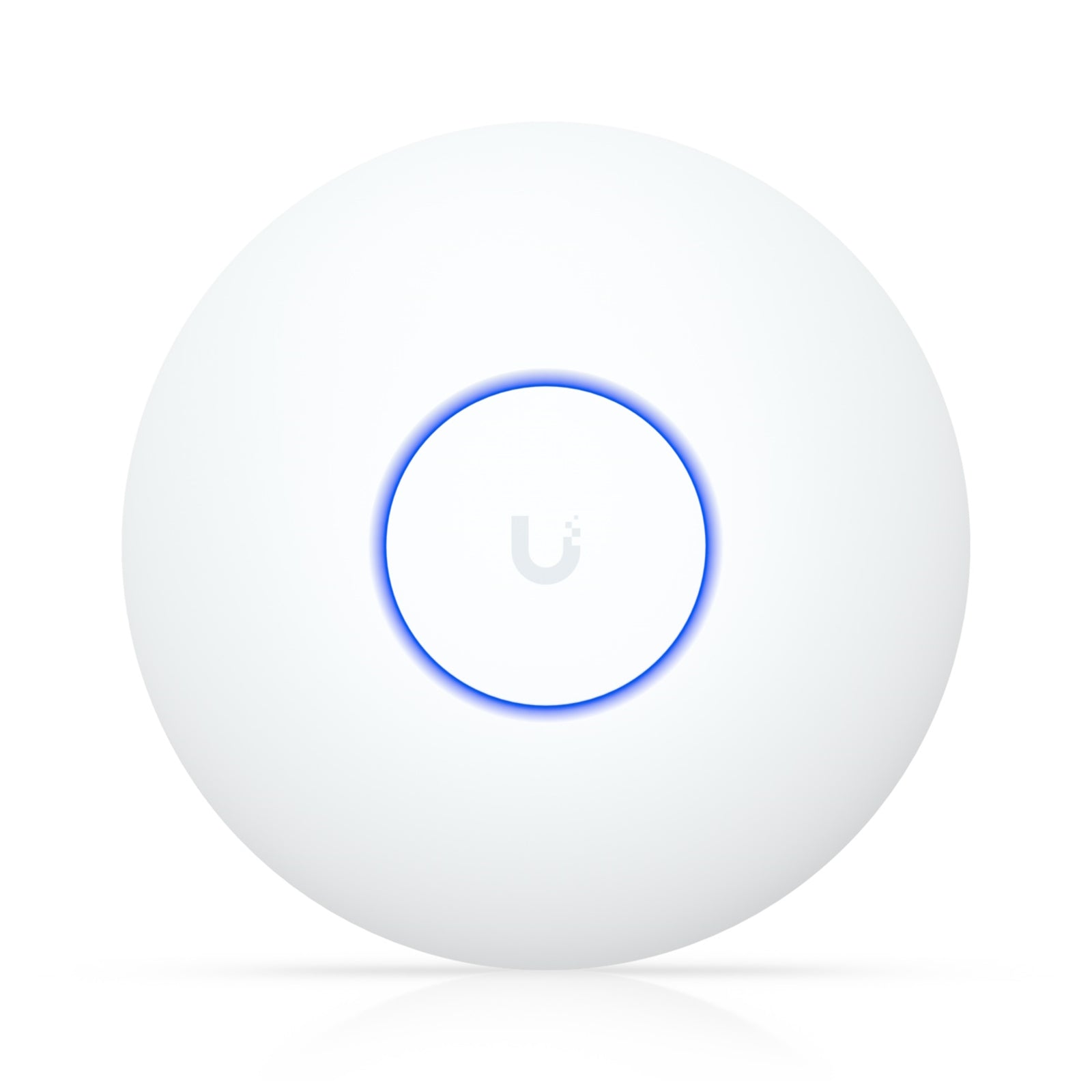

Ubiquiti U7-LITE UniFi 7 Lite WiFi 7 Access Point

The Ubiquiti U7-LITE delivers WiFi 7 performance in a compact, ceiling-mounted design. With 4.3 Gbps maximum data rates and support for 200+ concurrent clients, this access point handles demanding network environments with 4 spatial streams and a 2.5 GbE uplink.

WiFi 7 Performance

Built on the 802.11be standard, the U7-LITE achieves 4.3 Gbps on the 5 GHz band (BW240) and 688 Mbps on 2.4 GHz (BW40). The access point supports 2x2 DL/UL MU-MIMO on both bands, with antenna gains of 5 dBi (5 GHz) and 4 dBi (2.4 GHz). Maximum transmit power reaches 24 dBm on 5 GHz and 23 dBm on 2.4 GHz.

Network Coverage and Capacity

Covering up to 115 m² (1,250 ft²), the U7-LITE manages 200+ client devices simultaneously. The 2.5 GbE RJ45 port ensures sufficient backhaul capacity for high-throughput applications. The access point supports 8 BSSIDs per radio for network segmentation.

Advanced UniFi Features

The U7-LITE includes wireless meshing, band steering, and 802.11v BSS Transition Management. Fast roaming via 802.11r and Radio Resource Management (802.11k) optimize client connectivity. Additional features include Passpoint (Hotspot 2.0), captive portal support, Private Pre-Shared Key (PPSK), and RADIUS over TLS (RadSec).

Installation and Power

Measuring 171.5 x 33 mm (6.8 x 1.3 inches) and weighing 313 g (11 oz), the U7-LITE mounts to ceilings or walls using the included Lite Mount. PoE powers the device with 13W maximum consumption across a 42.5-57V DC range. The UV-stabilized polycarbonate enclosure withstands indoor environments.

Technical Specifications

Dimensions
d171.5 x 33 mm
(d6.8 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
115 m2 (1,250 ft2)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
POE

MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
5 GHz
5 dBi

2.4 GHz
4 dBi

Max. TX Power
5 GHz
24 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
13W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
313 g (11 oz)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate

Mount Material
UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications
CE, FCC, IC

• Type: Access Point
• Speed: 4300Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
