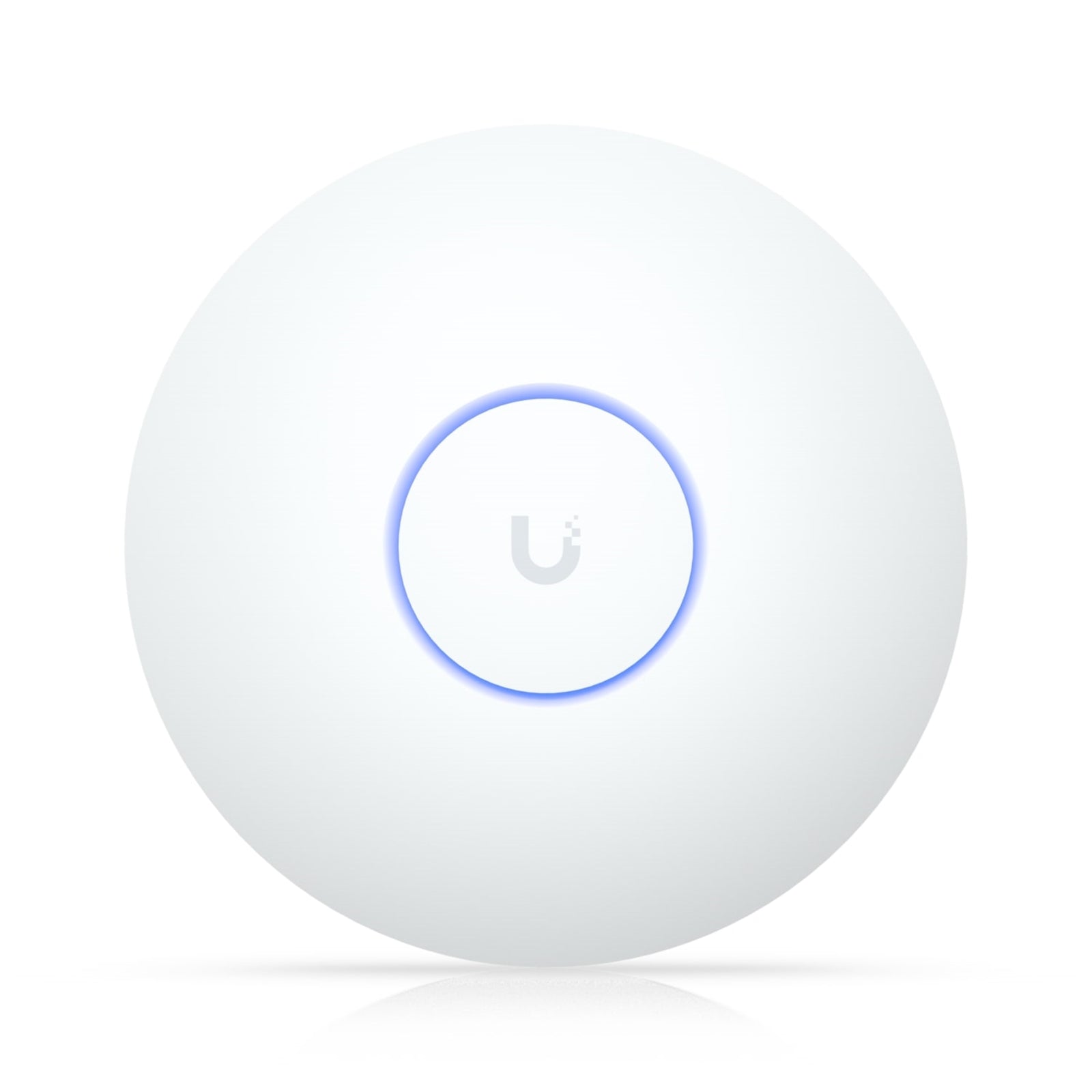

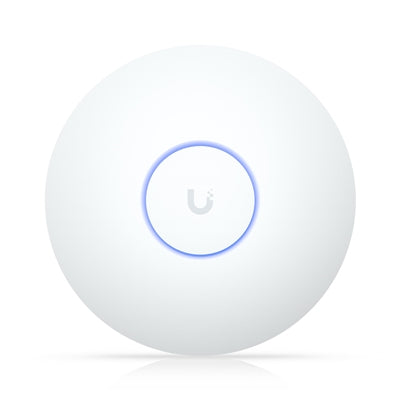

Ubiquiti U7-LR WiFi 7 Long Range Access Point

The Ubiquiti U7-LR delivers professional-grade WiFi 7 performance with 5 spatial streams, covering up to 160 m² (1,750 ft²) and supporting 300+ concurrent clients. Designed for high-density environments, this access point combines long-range connectivity with cutting-edge wireless technology.

WiFi 7 Performance

Equipped with WiFi 7 (802.11be) technology, the U7-LR achieves maximum data rates of 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz. The 5 spatial stream configuration includes 3x3 MU-MIMO on 5 GHz and 2x2 MU-MIMO on 2.4 GHz, ensuring efficient multi-device connectivity. The 2.5 GbE uplink prevents network bottlenecks, allowing full utilization of WiFi 7 speeds.

Advanced Radio Technology

The U7-LR features 6 dBi antenna gain on 5 GHz and 4 dBi on 2.4 GHz, with maximum transmit power of 27 dBm and 26 dBm respectively. Channel bandwidth support extends from 20 MHz to 160 MHz across HT, VHT, HE, and EHT standards. Backward compatibility with WiFi 6, WiFi 5, and 802.11n ensures seamless integration with existing client devices.

Enterprise Features

Built for professional deployments, the U7-LR includes wireless meshing, band steering, and 802.11v/r/k protocols for optimized roaming. Advanced radio management, Private Pre-Shared Key (PPSK), and RADIUS over TLS (RadSec) provide robust security options. The captive portal supports custom branding, voucher authentication, and payment-based access for guest networks.

Flexible Installation

The compact design measures 175.7mm diameter by 43mm height and weighs 448g. The included plastic mounting plate enables ceiling or wall installation. PoE power (42.5-57V DC) simplifies deployment with a maximum consumption of 14W. The polycarbonate and aluminum alloy construction withstands ambient temperatures from -30°C to 50°C.

Management and Compatibility

Managed through UniFi Network version 9.1.120 or later, the U7-LR integrates seamlessly with existing UniFi ecosystems. Mobile app support for iOS (10.20.2+) and Android (10.21.7+) enables remote monitoring. The device is NDAA compliant and certified by CE, FCC, and IC standards.

U7 Long-Range

Overview

Dimensions
d175.7 x 43 mm
(d6.9 x 1.7")

WiFi Standard
WiFi 7

Spatial Streams
5

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
300+

Uplink
2.5 GbE

Mounting
Ceiling, Wall
(Plastic Mounting Plate included)

Power Method
PoE

MIMO

5 GHz
3 x 3 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz
4.3 Gbps (BW160)

2.4 GHz
688 Mbps (BW40)

Antenna Gain

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power

5 GHz
27 dBm

2.4 GHz
26 dBm

Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal

Custom Branding Landing Page
Yes

Voucher Authentication
Yes

Payment-Based Authentication
Yes

External Portal Server Support
Yes

Password Authentication
Yes

Guest Network Isolation
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Hardware

Max. Power Consumption
14W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
448 g (15.8 oz)

Management
Ethernet

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Polycarbonate, galvanized steel (SGCC)

LEDs

System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements

UniFi Network
Version 9.1.120 and later

Mobile App
iOS version 10.20.2 and later
Android version 10.21.7 and later

• Type: Access Point
• Speed: 4300Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
