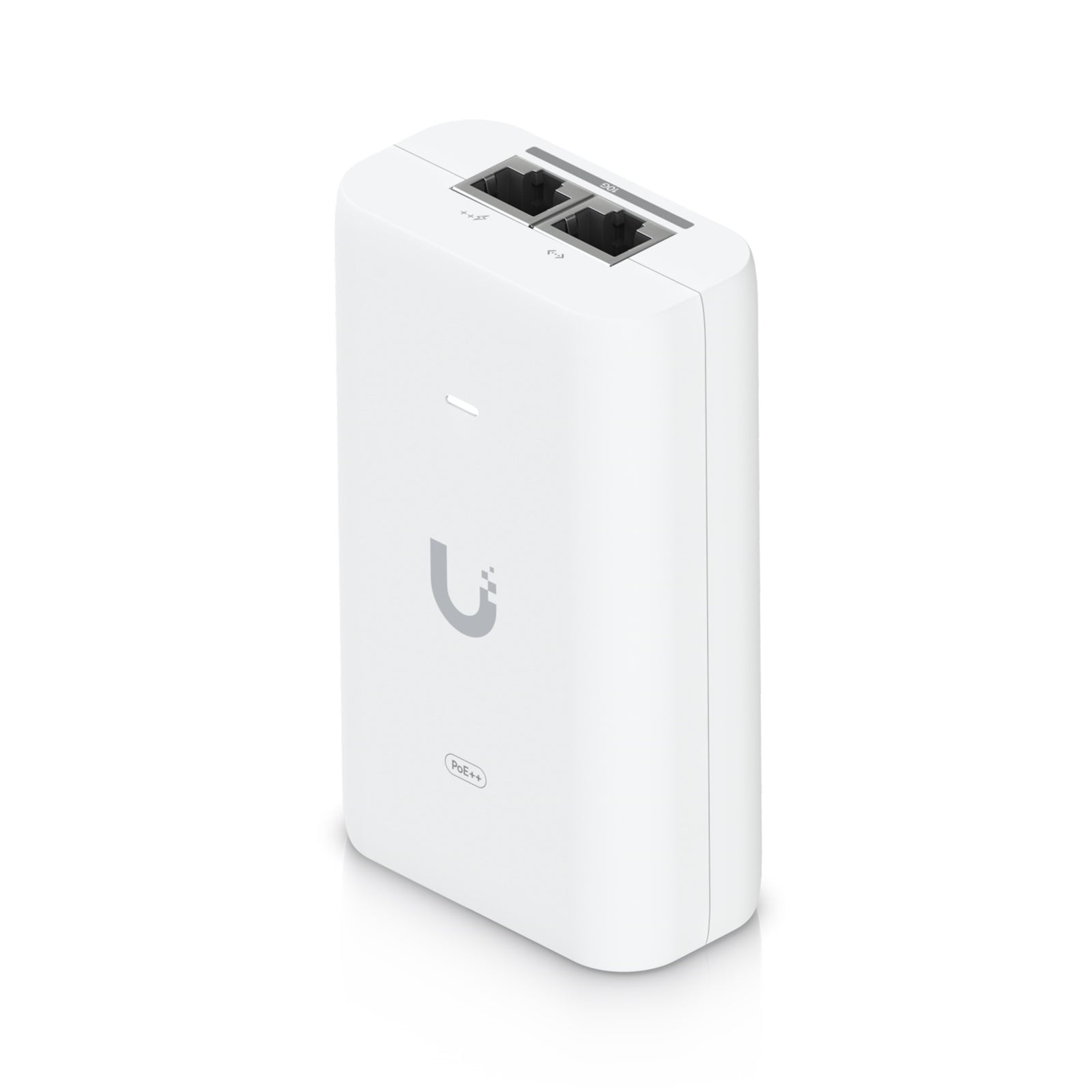

Ubiquiti UACC-POE++-10G 60W PoE++ Injector with 10 Gigabit Ethernet

The Ubiquiti UACC-POE++-10G is a high-performance 802.3bt PoE++ injector designed to deliver up to 60W of power to UniFi PoE++ devices while supporting Multi-Gigabit LAN connections up to 10GbE. This adapter reduces dependency on PoE switch power budgets and provides a reliable power solution for bandwidth-intensive network equipment.

Power Delivery and Network Performance

This injector outputs 54V DC at 1.12A, delivering a maximum of 60W per port through 4-pair powering (pins 1, 2, 4, 5 positive and 3, 6, 7, 8 negative). The unit accepts 100-240V AC input at 50/60Hz with a maximum input current of 1.5A, making it compatible with international power standards. With greater than 88% efficiency and less than 1% output ripple, the UACC-POE++-10G maintains stable power delivery for demanding network devices.

10 Gigabit Ethernet Connectivity

The injector features RJ45 shielded sockets supporting up to 10 GbE speeds, enabling Multi-Gigabit data throughput for high-bandwidth applications. The data input and PoE output ports ensure seamless integration into existing network infrastructures without bottlenecking your connection speeds.

Comprehensive Protection Features

Built-in surge protection includes both difference and common mode protection with clamping protection at 11V for data and 60V for power lines. The unit handles maximum surge discharge of 1500A on power lines and peak pulse current of 36A on data lines, with a response time of less than 1 nanosecond. Overcurrent and peak pulse protection safeguard both the injector and connected devices from electrical anomalies.

Compact Design and Monitoring

Measuring 106 x 63 x 34 mm (4.2 x 2.5 x 1.3 inches) and weighing 210g (7.4 oz), the injector maintains a compact footprint suitable for various installation scenarios. An LED indicator provides status monitoring for quick visual verification of operation. The unit includes an AC cable with earth ground for safe installation.

Technical Specifications

The injector operates at a 65 kHz switching frequency with line regulation under 2% and load regulation under 5%. Shunt capacitance remains below 5 pF for data transmission. The device meets CE, FCC, IC, UL, UKCA, KC, CCC, and RoHS certifications, ensuring compliance with international safety and environmental standards.

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring

Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight
210 g (7.4 oz)

Output Voltage
54V DC @ 1.12A

LAN Activity Indicator
No

Gigabit LAN Port
Yes, up to 10 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
1.5A max.

Inrush Current
<150A peak @ 230V AC

Efficiency
>88%

Output Ripple
1% max.

Switching Frequency
65 kHz

Line Regulation
< 2%

Load Regulation
< 5%

2-Pair Powering
No

4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Data In / POE
RJ45 shielded socket

Surge Protection
Difference and common mode

Clamping Protection
11V data, 60V power

Max. Surge Discharge
1500A power

Peak Pulse Current
36A data

Shunt Capacitance
<5 pF Data

Response Time
<1 ns

Max. PoE+ wattage per port by PSE
60W

Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

• Product Type: POE Injector
• POE Capability: 54v
• Device Support: Universal
