THIS IS A SINGLE UNIT WITH CEILING MOUNT AND SCREWS ONLY - NO RETAIL PACKAGING SUPPLIED.
ORIGINALLY PART OF A MULTI-PACK PRODUCT

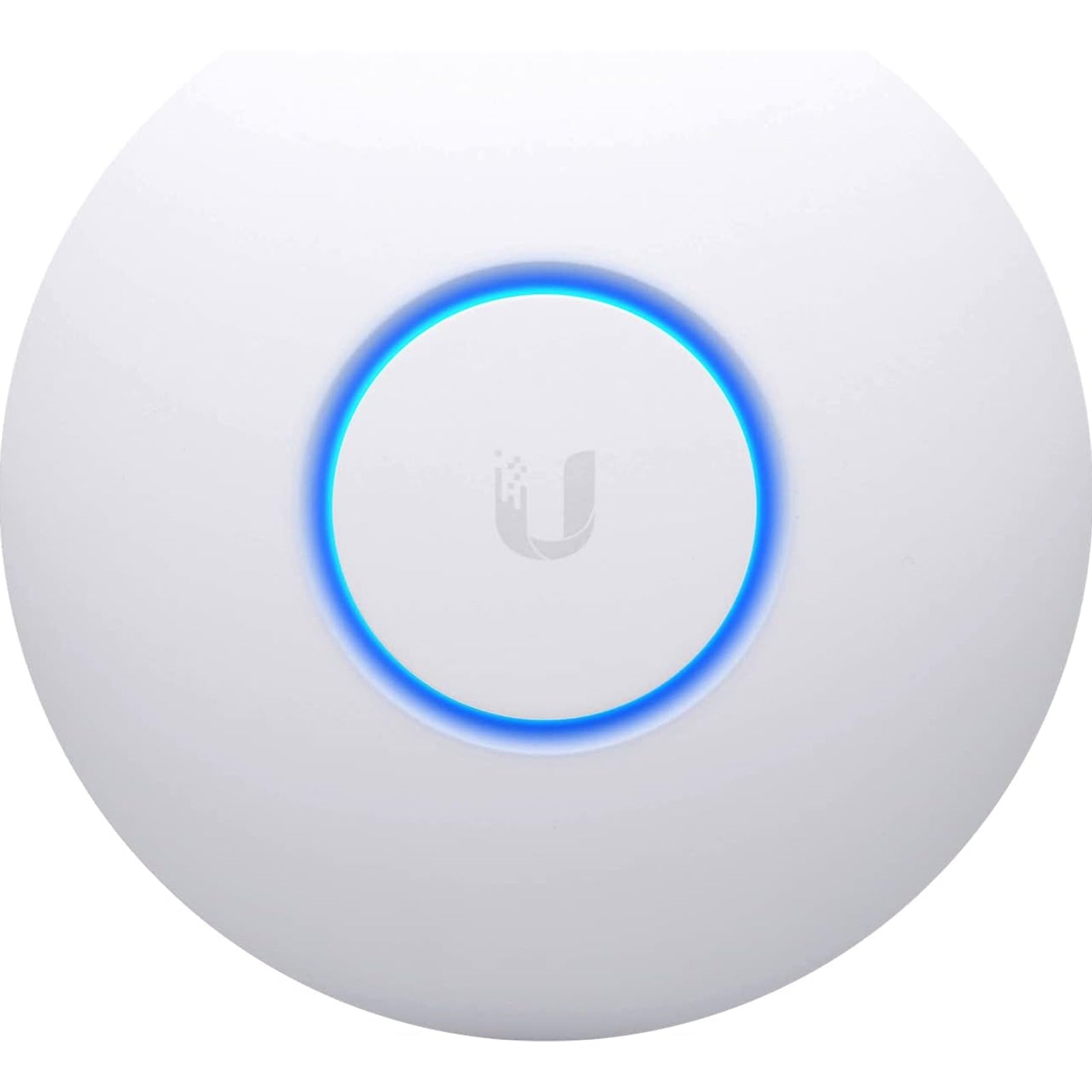

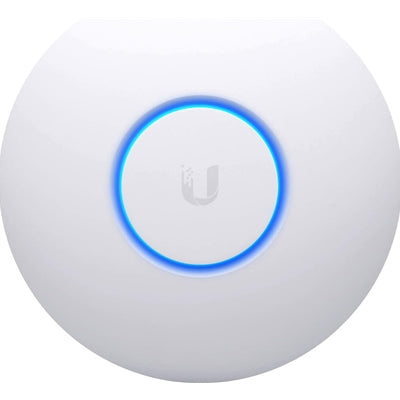

High-Performance Indoor Wireless Access Point

The Ubiquiti UAP-nanoHD delivers enterprise-grade wireless performance in a compact form factor. This 4x4 Wave2 MU-MIMO access point provides combined speeds up to 2033Mbps, with 1733Mbps on 5GHz and 300Mbps on 2.4GHz bands, supporting over 200 concurrent users.

Compact Design for Discreet Installation

At just 160x32.65mm, the UAP-nanoHD is 30% smaller than the UAP AC Pro, making it the smallest UniFi access point available. The low-profile design allows for seamless ceiling or wall mounting, blending discreetly into any indoor environment. Optional custom skins provide additional customization to match your space.

Software Defined Networking

Deploy and manage your UniFi Enterprise System using the included UniFi Controller software. The platform enables centralized control of thousands of UniFi devices across multiple sites through an intuitive graphical interface, with no ongoing licensing fees. Real-time data collection and analysis provide comprehensive network visibility.

Advanced Features

The nanoHD includes breakthrough RF mapping with predictive coverage, deep packet inspection (DPI) analytics, and advanced security features to protect your network and clients. Hotspot setup capabilities support billing integration, vouchers, RADIUS authentication, and guest controls for flexible deployment scenarios.

Technical Specifications

Model: UAP-nanoHD
Dimensions: 160x32.65mm
Environment: Indoor
2.4GHz Speed: 300Mbps
5GHz Speed: 1733Mbps
PoE Mode: 802.3af PoE (48V)
Ports: (1) 10/100/1000 Ethernet
Wi-Fi Users: 200+ Users
Mounting: Wall/Low-Profile Ceiling
MIMO Chains: 4x4
MU-MIMO: Yes
Skins: Optional

Package Contents

This bulk packaged unit includes the UAP-nanoHD access point, ceiling mount hardware, and mounting screws. No retail packaging or PoE injector is included. The unit requires 802.3af PoE power delivery through a compatible PoE switch or separate injector.

• Type: High Density
• Speed: MU-MIMO
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
