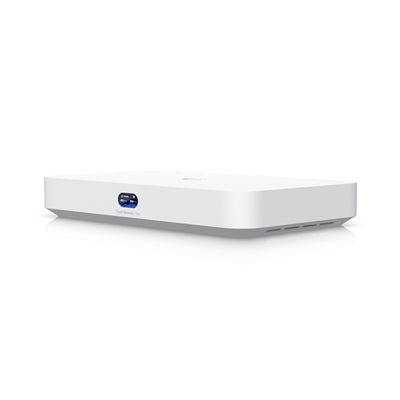

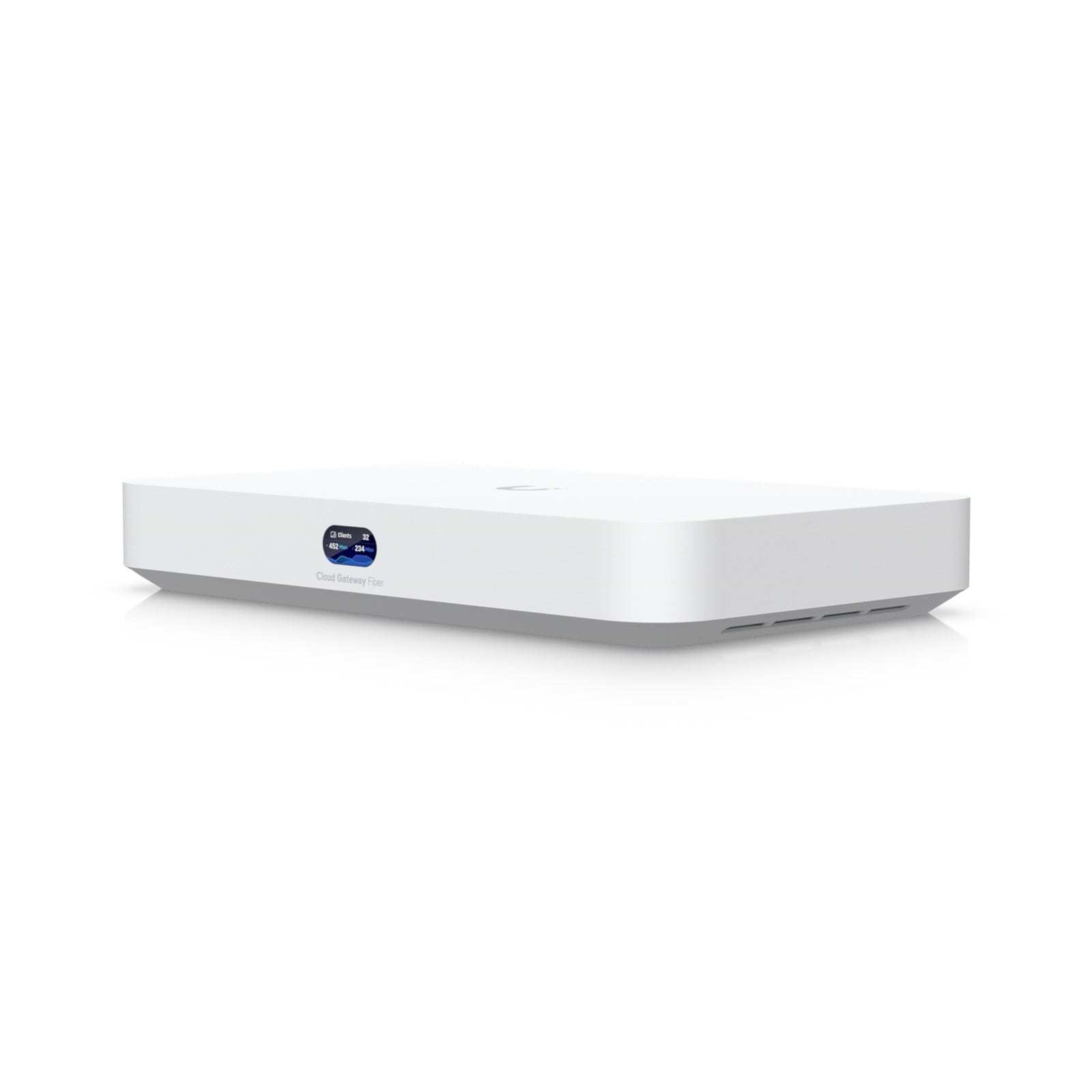

Ubiquiti UCG-FIBER UniFi Cloud Gateway with Integrated Switch and NVR

The Ubiquiti UCG-FIBER is a compact desktop 10G cloud gateway that consolidates network management into a single device. This all-in-one solution combines a high-performance router, 4-port 2.5 GbE switch, network video recorder capabilities, and full UniFi application support in a compact 212.8 x 127.6 x 30 mm form factor.

High-Performance Networking Infrastructure

Built with enterprise-grade networking capabilities, the UCG-FIBER features dual 10G connectivity options with one 10G SFP+ port and one 10 GbE RJ45 port for WAN connections. The integrated switch provides four 2.5 GbE RJ45 LAN ports plus an additional 10G SFP+ port, delivering high-speed connectivity throughout your network. The quad-core ARM Cortex-A73 processor running at 2.2 GHz with 3GB system memory ensures smooth operation even under heavy loads, supporting 500+ simultaneous users and managing 50+ UniFi devices.

Comprehensive Security and Network Management

The UCG-FIBER delivers 5 Gbps IDS/IPS throughput with access to 55,000+ threat signatures through CyberSecure. Security features include stateful firewall protection, application-aware Layer 7 firewall, DPI and traffic identification, zone-based filtering, content filtering, and ad blocking. Advanced networking capabilities include license-free SD-WAN, multi-WAN load balancing, dynamic OSPF routing, and advanced QoS for traffic prioritization.

Integrated NVR and UniFi Application Suite

Support for selectable NVMe SSD storage up to 2TB enables the UCG-FIBER to function as a network video recorder, managing up to 15 HD cameras, 8 2K cameras, or 5 4K cameras simultaneously. Full UniFi application support includes Network, Protect, Access, Talk, and Connect, providing unified management across your entire infrastructure from a single interface.

Flexible VPN and Connectivity Options

The gateway supports comprehensive VPN configurations including Site Magic, IPsec, OpenVPN, WireGuard, and L2TP for site-to-site connections. VPN server capabilities include Identity Endpoint one-click VPN, Teleport zero-configuration VPN, and multiple protocol support. Additional features include integrated RADIUS server with RadSec support, mDNS, advanced NAT configurations, and failover support with UniFi LTE Backup.

Power and Management

The device includes 30W PoE budget capability, powered by an included 54V DC/1.1A adapter with 100-240V AC input support. Maximum power consumption is 29.4W excluding PoE output. Management options include Ethernet and Bluetooth connectivity, with a 0.96" LCM status display for quick system monitoring. The polycarbonate enclosure weighs 675g without SSD or 734g with SSD installed.

Dimensions
212.8 x 127.6 x 30 mm
(8.3 x 5 x 0.5 ")

UniFi Application Suite
Network
Yes

Protect
Yes

Access
Yes

Talk
Yes

Connect
Yes

Managed UniFi Devices
50+

Managed Cameras
(15) HD
(8) 2K
(5) 4K

Simultaneous Users Connected
500+

Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45

LAN Ports
(1) 10G SFP+
(4) 2.5 GbE RJ45

IDS/IPS Throughput
5 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
4000

NVR Storage
Selectable NVMe SSD up to 2 TB

PoE Budget
30W

Max. PoE Wattage per Port by PSE
30W

Voltage Range PoE Mode
50-57V

Max. Power Consumption
29.4W (Excluding PoE output)

Power Method
DC jack (54V DC/1.1A)

Power Supply
54V DC/1.1A
(adapter included)

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM Cortex-A73 at 2.2 GHz

System Memory
3GB

Weight
Without SSD: 675 g (1.5 lb)
With SSD: 734 g (1.6 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96" status display

Management
Ethernet
Bluetooth

LEDs
Ethernet
SFP+

Button
Factory Reset

Certifications
CE, FCC, IC

• Ports: 7
• Firewall: Yes
• Rack Mountable: No
