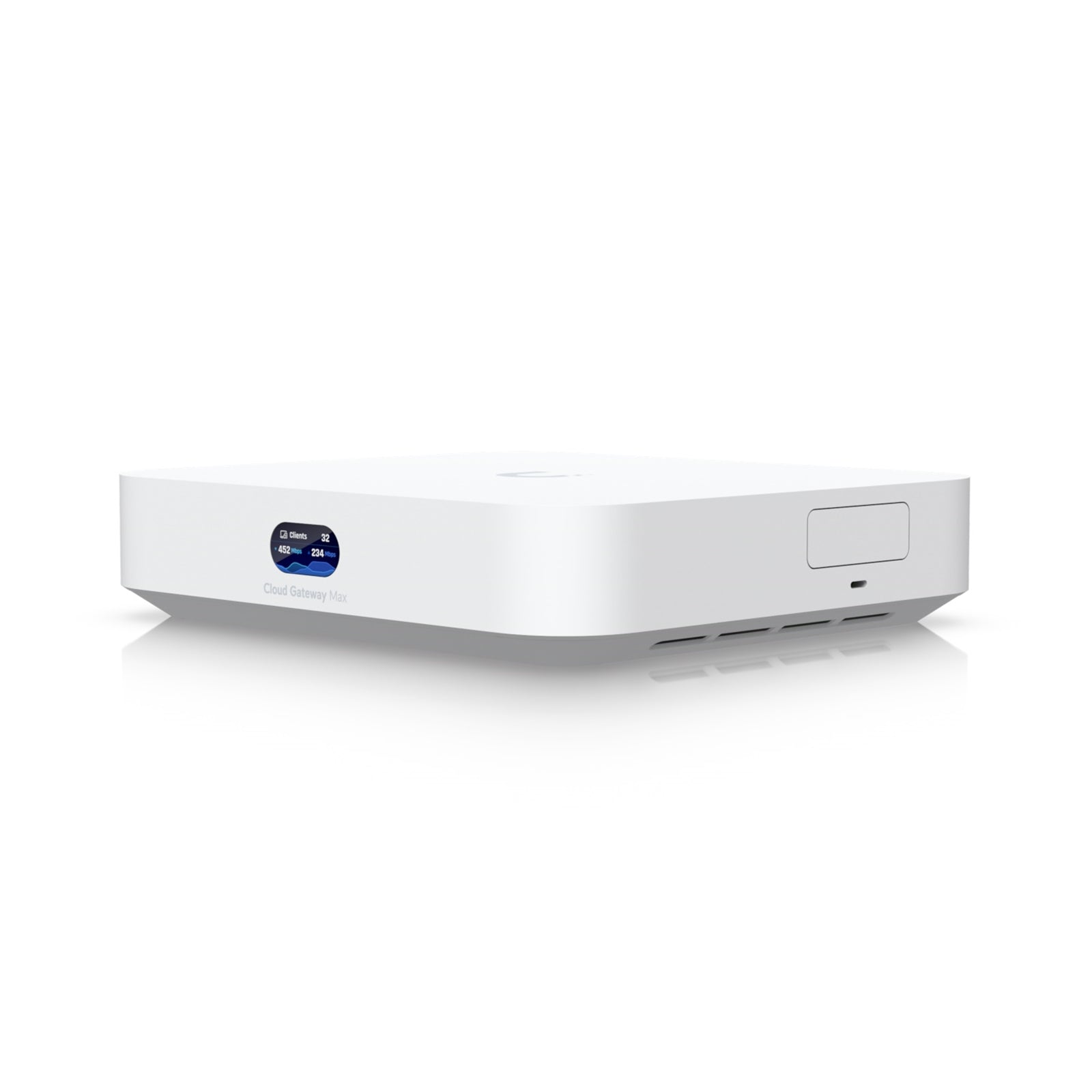

Ubiquiti UCG-MAX UniFi Cloud Gateway Max

The Ubiquiti UCG-MAX delivers professional-grade network management in a compact desktop form factor. This 2.5 gigabit cloud gateway router provides advanced security, routing, and optional NVR functionality for small to medium business networks and advanced home deployments.

High-Performance 2.5GbE Connectivity

Equipped with five 2.5 GbE RJ45 ports (one WAN, four LAN), the UCG-MAX handles multi-gigabit internet connections without bottlenecks. The 2.3 Gbps IDS/IPS throughput ensures your network maintains high speeds even with advanced security features enabled, making it suitable for fiber internet connections up to 1.5 Gbps with intrusion prevention active.

Unified Network Management

Manage up to 30+ UniFi devices and support 300+ simultaneous client connections through the UniFi Network application. The UCG-MAX serves as the central controller for your entire UniFi ecosystem, including Network, Protect, Access, Talk, and Connect applications. The integrated 0.96" LCM display provides at-a-glance system status without requiring network access.

Enterprise Security Features

Deploy comprehensive network protection with stateful firewall, application-aware Layer 7 filtering, and deep packet inspection (DPI). The gateway includes content filtering, ad blocking, and zone-based firewall with advanced filtering by regions, domains, and applications. Access over 55,000 IDS/IPS signatures with UniFi CyberSecure subscription for threat detection and prevention.

Flexible VPN and SD-WAN

Configure license-free SD-WAN with multi-WAN load balancing and automatic failover. VPN server options include Identity Endpoint one-click VPN, Teleport zero-configuration VPN, WireGuard, OpenVPN, and L2TP. VPN client support enables secure connections to remote networks via OpenVPN and WireGuard protocols. Site-to-site connectivity is simplified through Site Magic, IPsec, and OpenVPN.

Optional UniFi Protect NVR

Add optional SSD storage to transform the UCG-MAX into a network video recorder for UniFi Protect cameras. Support up to 15 HD cameras, 8 2K cameras, or 5 4K cameras depending on recording settings and storage capacity. This eliminates the need for a separate NVR device in smaller installations.

Advanced Routing and Quality of Service

Implement policy-based WAN and VPN routing, dynamic OSPF routing, and advanced QoS traffic prioritization. The gateway supports advanced NAT configurations including SNAT, DNAT, masquerade, NAT pooling, and 1-to-1 NAT. IPv6 ISP support, IGMP proxy, and multicast DNS (mDNS) ensure compatibility with modern network requirements.

Technical Specifications

The compact 141.8 x 127.6 x 30 mm enclosure houses 3GB system memory and a 2000-entry MAC address table. Powered via USB Type-C (5V DC/5A) with included adapter supporting 100-240V AC input. The polycarbonate enclosure weighs 460g without SSD or 519g with storage installed. Management options include Ethernet and Bluetooth connectivity.

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

Dimensions
141.8 x 127.6 x 30 mm
(5.6 x 5 x 1.2")

UniFi Application Suite
Network
Yes

Protect
Yes

Access
Yes

Talk
Yes

Connect
Yes

Managed UniFi Devices
30+

Managed Cameras
(15) HD
(8) 2K
(5) 4K

Simultaneous Users Connected
300+

Default WAN Ports
(1) 2.5 GbE RJ45

Default LAN Ports
(4) 2.5 GbE RJ45

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
55,000+ with CyberSecure

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
2000

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

NVR Storage
Optional

Max. Power Consumption
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range
100—240V AC

System Memory
3 GB

Weight
Without SSD: 460 g (1 lb)
With SSD: 519 g (1.1 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96" status display

Management
Ethernet
Bluetooth

LEDs
Ethernet

Certifications
CE, FCC, IC

• Ports: 5
• Firewall: Yes
• Rack Mountable: No
