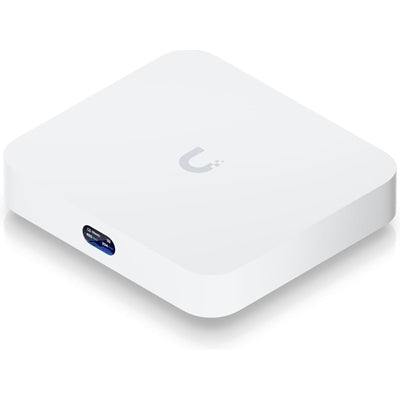

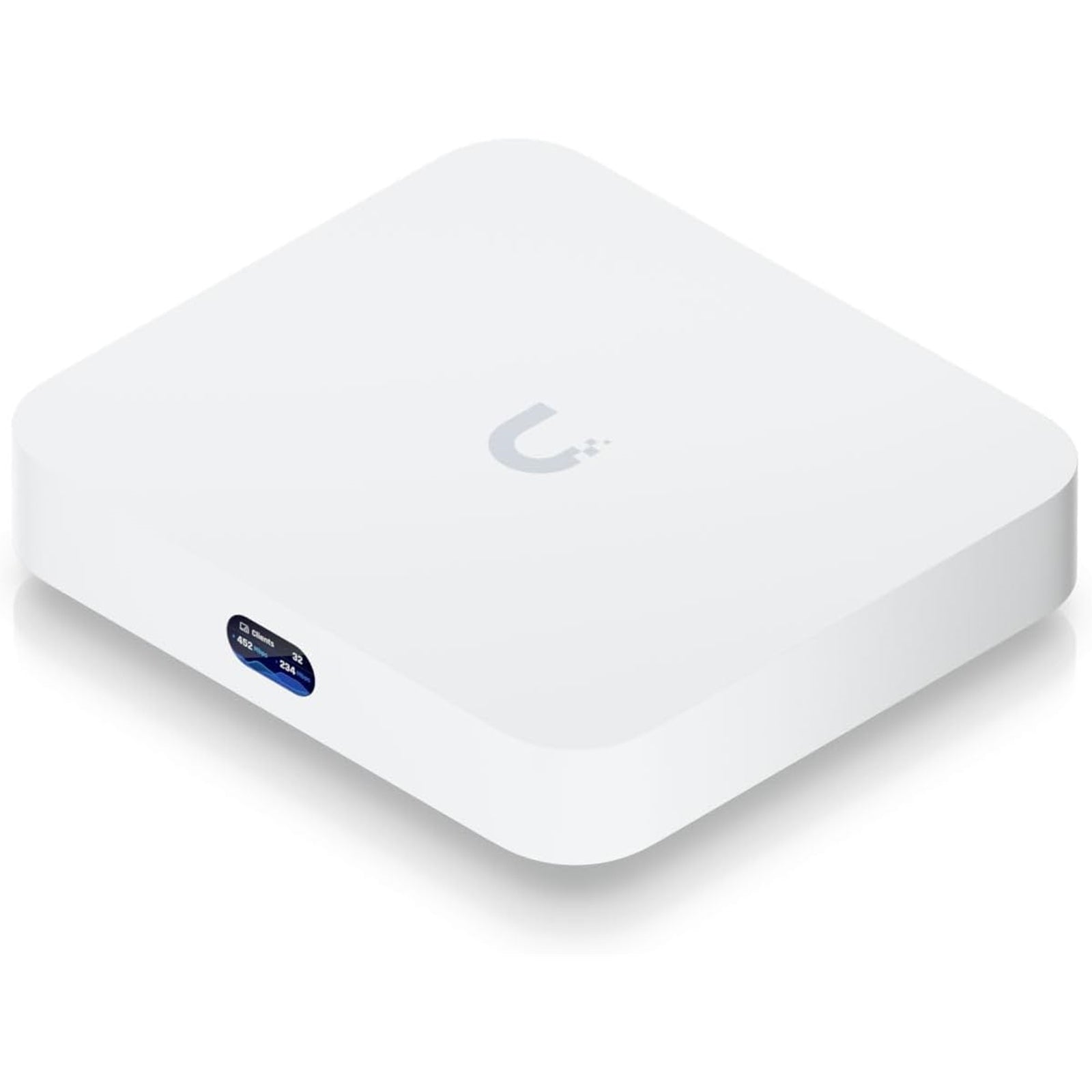

Ubiquiti UniFi Cloud Gateway Ultra - UCG-Ultra

The Ubiquiti UCG-ULTRA delivers enterprise-grade network management in a compact, USB-C powered device. Designed for businesses requiring robust network infrastructure, this Cloud Gateway manages over 30 UniFi Network devices and 300+ clients while maintaining 1 Gbps routing performance with integrated IDS/IPS security.

Network Management & Performance

Running UniFi Network software, the UCG-ULTRA provides full-stack network management capabilities. The quad-core ARM Cortex-A53 processor at 1.5 GHz, paired with 3 GB DDR4 memory, ensures responsive performance for complex network operations. Multi-WAN load balancing optimizes internet traffic distribution across connections, preventing downtime and maintaining continuous network availability.

The device features (4) GbE RJ45 LAN ports and (1) 1/2.5 GbE RJ45 WAN port, providing flexible connectivity options for growing network infrastructures. The 0.96" LCM status display offers real-time monitoring capabilities, allowing quick status checks without accessing the management interface.

Security & Advanced Features

Signature-based IPS/IDS threat detection provides network protection against intrusions and malicious attacks at 1 Gbps throughput. The application-aware firewall enables granular control with application, domain, and country-based QoS policies. Content filtering, VLAN/subnet-based traffic segmentation, and full stateful firewall capabilities ensure comprehensive network security.

License-free SD-WAN functionality comes standard, along with VPN server support for WireGuard, L2TP, and OpenVPN protocols. Site-to-site VPN with OpenVPN and IPsec enables secure inter-office connectivity. One-click Teleport and Identity VPN simplify remote access deployment.

Technical Specifications

Measuring 141.8 x 127.6 x 30 mm and weighing 520 g, the polycarbonate enclosure maintains a minimal footprint. USB Type-C power delivery (5V DC/3A) with included UK adapter supports 100-240V AC input, consuming maximum 6.2W. The device operates reliably in ambient temperatures from -10 to 40°C with 5-95% noncondensing humidity tolerance.

16 GB eMMC storage provides ample space for configuration and logging. Management via Ethernet and Bluetooth ensures flexible administration options. The device carries CE, FCC, and IC certifications for compliance across multiple markets.

Gateway Features

Redundant WAN with failover ensures continuous connectivity, while WiFi QoS integration with UniFi APs optimizes wireless performance. Application and device type identification enables intelligent traffic management. Additional internet failover with LTE Backup provides ultimate connection reliability. Internet quality and outage reporting keeps administrators informed of network health.

Policy-based WAN and VPN routing, DHCP relay, customizable DHCP server, IGMP proxy, and IPv6 ISP support deliver advanced networking capabilities typically found in enterprise-class equipment.

Specifications

Mechanical

Weight &Dimensions
141.8 x 127.6 x 30 mm
520 g

Enclosure Material
Polycarbonate

Hardware

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory
3 GB DDR4

On-Board Storage
16 GB eMMC

Management Interface
Ethernet
Bluetooth

Networking Interface
LAN:
(4) GbE RJ45 ports
WAN:
(1) 1/2.5 GbE RJ45 port

IDS/IPS Throughput
1 Gbps

Power Method
USB type C (5V DC/3A)

Supported Voltage Range
100–240V AC

Max. Power Consumption
6.2W

LCM Display
0.96 status display

Button
Factory reset

Ambient Operating Temperature
-10 to 40° C (14 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Gateway Features

Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

LEDs

Ethernet
Green: link/activity

Application Requirements

Mobile App
UniFi iOS: Version 10.12.0 and later
UniFi Android: Version 10.11.2 and later

• Ports: 4
• Firewall: Yes
• Rack Mountable: No
