Ubiquiti UDB Wireless Device Bridge

The Ubiquiti UDB delivers plug-and-play wireless bridging with integrated UniFi WiFi Auto-Link technology. This compact PoE adapter connects wired devices to your wireless network without complex configuration, making it ideal for extending network connectivity to areas where running ethernet cables is impractical.

WiFi 5 Performance with 2x2 MIMO

Equipped with WiFi 5 (802.11ac) technology and 2x2 MIMO spatial streams, the UDB achieves maximum data rates up to 866.7 Mbps on 80MHz channel bandwidth. The dual-antenna system combines an internal 5 dBi antenna with an external RP-SMA connector for an optional 4 dBi omni-antenna, providing flexible deployment options and reliable wireless performance.

Seamless PoE Integration

The UDB functions as both a wireless bridge and PoE adapter, accepting 100-240V AC input and delivering power to connected devices through its single GbE RJ45 port. With 25W total power consumption and 10W available for PoE output, it supports network devices like IP cameras, access points, and VoIP phones without requiring separate power supplies.

Simple Deployment and Management

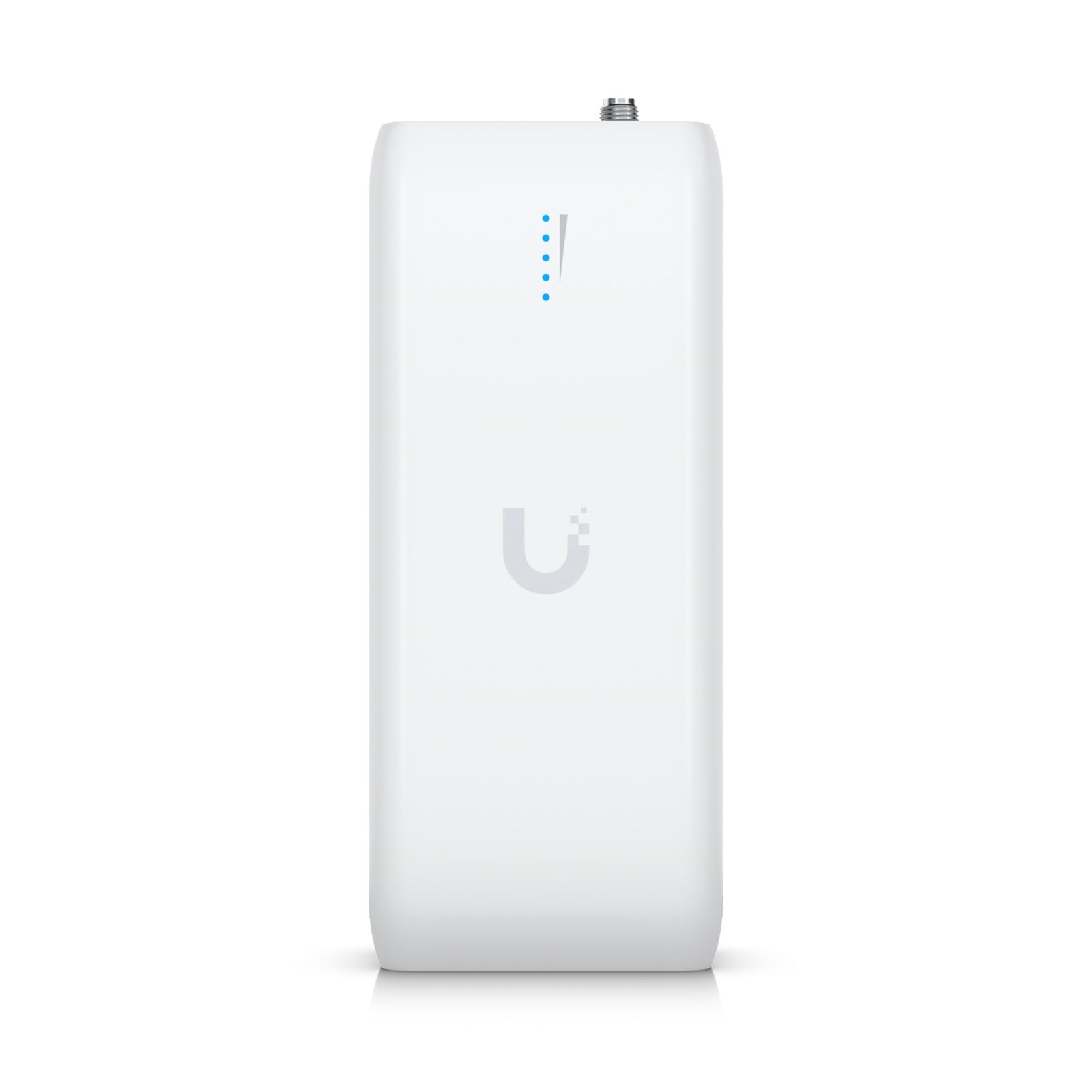

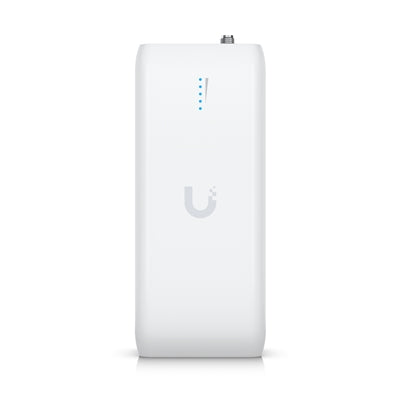

Wall or table mounting options and compact dimensions (130 x 55 x 34 mm) allow installation in tight spaces. The polycarbonate enclosure houses four blue signal LEDs and one white/blue indicator LED for quick status monitoring. WiFi management through UniFi Auto-Link automatically establishes secure WPA2 AES encrypted connections, eliminating manual configuration steps.

Dimensions
130 x 55 x 34 mm
(5.1 x 2.2 x 1.3")

WiFi Standard
WiFi 5

Spatial Streams
2

Mounting Locations
Wall/Table

Power Method
100—240V AC, 0.45A Max., 50/60 Hz

MIMO
2 x 2

Max. Data Rate
866.7 Mbps (BW80)

Antenna Gain
Internal antenna: 5 dBi
External omni antenna: 4 dB

Max. TX Power
21 dBm

Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Wireless Security
WPA2 AES (Always On)

Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)

Supported Voltage Range
100—240V AC

Supported Voltage Range
100—240V AC

Networking Interface
(1) GbE RJ45 port

Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna

Management
WiFi

Weight
200 g (7.1 oz)

Mount Material
Polycarbonate

Enclosure Material
Polycarbonate

Button
(1) Factory-reset

System LEDs
(4) Blue: signal
(1) White/blue: indicator

Channel Bandwidth
20/40/80 (MHz)

Certifications
CE, FCC, IC

• Type: Device Bridge
• Speed: 866Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
