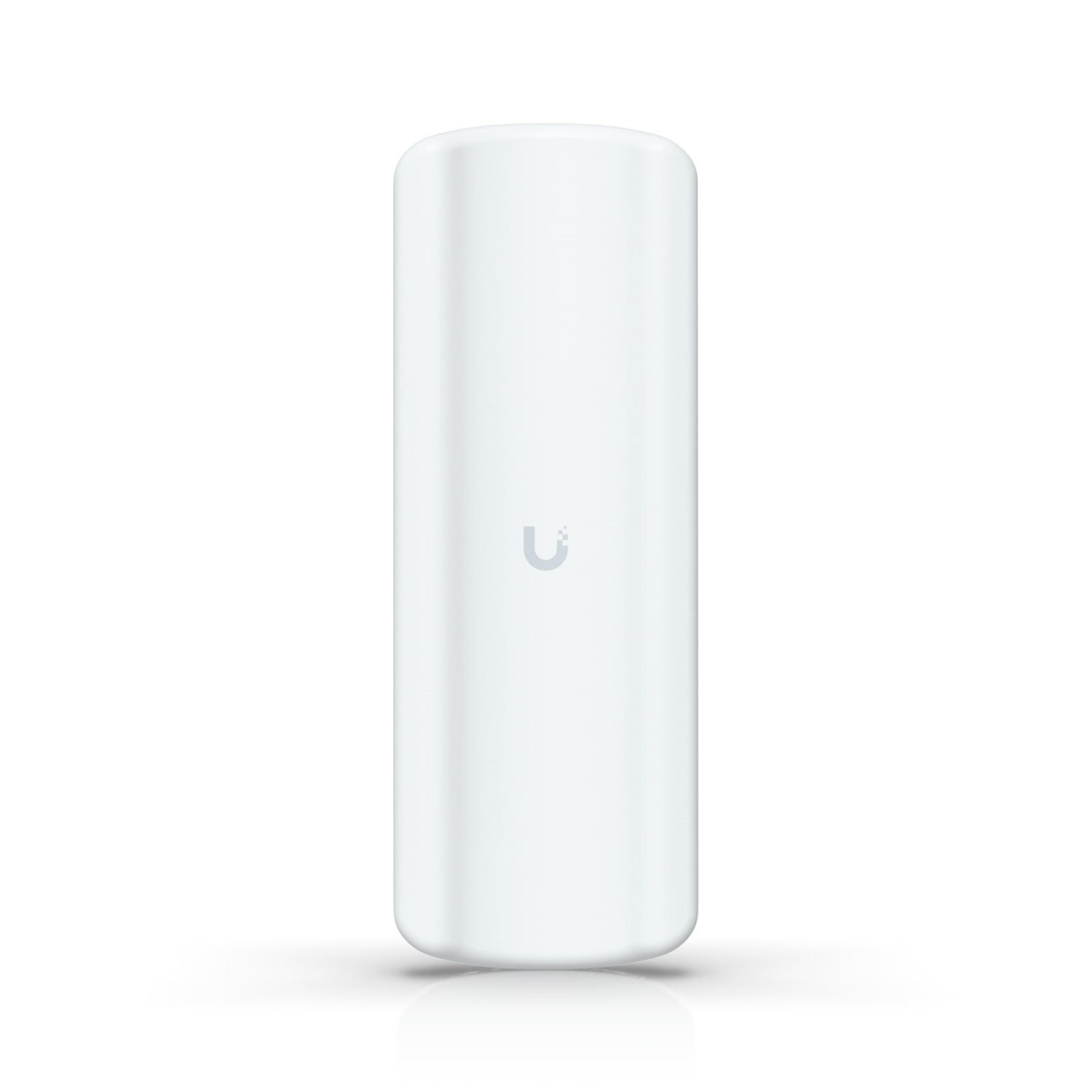

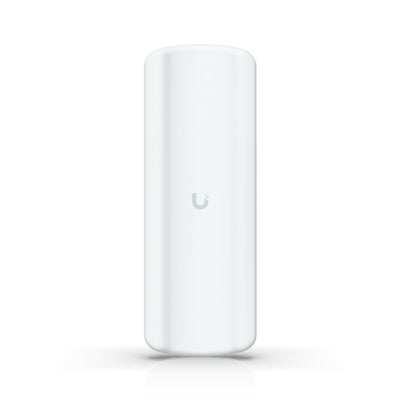

Ubiquiti Device Bridge Pro Sector - Professional Point-to-Multipoint Wireless Bridge

The Ubiquiti UDB-Pro-Sector is a high-performance 5 GHz point-to-multipoint access point designed for long-range outdoor wireless bridging applications. This Device Bridge Pro Sector wirelessly connects 40+ Device Bridge Pro clients at distances exceeding 5 km, making it ideal for enterprise deployments, campus networks, and remote site connectivity.

Long-Range Point-to-Multipoint Connectivity

Built for outdoor deployment, this WiFi 5 sector antenna delivers reliable connectivity across distances up to 5 km (3.1 mi). The 17 dBi antenna gain and 25 dBm maximum TX power ensure strong signal penetration even in challenging RF environments. The 2x2 MIMO configuration on the 5 GHz band provides up to 400 Mbps data throughput, supporting bandwidth-intensive applications across multiple client connections.

Weatherproof Design for Harsh Environments

The UDB-Pro-Sector features IPX6 weatherproofing with UV-stabilized polycarbonate enclosure, protecting internal components from rain, dust, and extreme conditions. Operating in temperatures from -40 to 60°C (-40 to 140°F) and humidity levels up to 95% noncondensing, this device maintains performance in demanding outdoor environments. The robust construction withstands wind loading of 128.2N at 200 km/h, ensuring stable operation during severe weather.

Technical Specifications

The device supports 802.11ac (WiFi 5) with data rates from 6.5 Mbps to 400 Mbps (MCS0-MCS9 NSS1/2, VHT 20/40), as well as legacy 802.11n and 802.11a standards. Channel bandwidth options include 20/40 MHz for optimal spectrum utilization. WPA2 AES encryption secures all wireless communications. The single GbE RJ45 port provides network connectivity, while PoE support (42.5-57V DC) simplifies installation with a single cable for both data and power, consuming only 6W maximum.

Flexible Mounting and Management

The included pole mount accommodates diameters from 0.9 to 2.4 inches (24-60 mm), offering versatile installation options. At 835g (1.8 lb) with mount, the compact 360.9 x 129.6 x 71.4 mm unit installs easily without specialized equipment. Management via Ethernet or WiFi through the UniFi Network application provides centralized configuration and monitoring. System LEDs indicate power and Ethernet status, while a factory-reset button enables quick troubleshooting.

Enterprise-Grade Reliability

NDAA compliant and certified by CE, FCC, and IC, the Device Bridge Pro Sector meets stringent regulatory requirements for commercial deployment. The internal antenna design eliminates external components that could fail or require maintenance, reducing total cost of ownership while maintaining consistent performance across the 5 GHz spectrum.

Device Bridge Pro Sector

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Overview

Dimensions
360.9 x 129.6 c 71.4 mm
(14.2 x 5.1 x 2.8")

WiFi Standard
WiFi 5

Spatial Streams
2

Coverage Area
5 km (3.1 mi)

Mounting Locations
Pole

Weatherproofing
IPX6

Power Method
PoE

Performance

MIMO
5 GHz - 2 x 2

Max. Data Rate
5 GHz - 400 Mbps (BW40)

Antenna Gain
5 GHz - 17 dBi

Max. TX Power
5 GHz - 25 dBm

Max. Conducted TX Power
25 dBm (Combined)

Supported Data Rates
802.11ac (WiFi 5) - 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Security
WPA2 AES

Hardware

Max. Power Consumption
6W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) GbE RJ45 port

Antennas
Internal

Management
Ethernet
WiFi

Channel Bandwidth
20/40 MHz

Wind Loading
128.2N at 200 km/h

Weight
Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)

Enclosure Material
UV-stabilized polycarbonate

Mount Material
UV-stabilized polycarbonate, stainless steel

Pole Mount Diameter
0.9—2.4" (24—60 mm)

Button
(1) Factory-reset

LEDs
System - Power, Ethernet

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-40 to 60°C (-40 to 140°F)

Ambient Operating Humidity
5 to 95% noncondensing

• Type: Device Bridge
• Speed: 400Mbps
• Indoor or Outdoor: Indoor/Outdoor
• POE Capability: 42.5/57v
• Pack Size: Single
