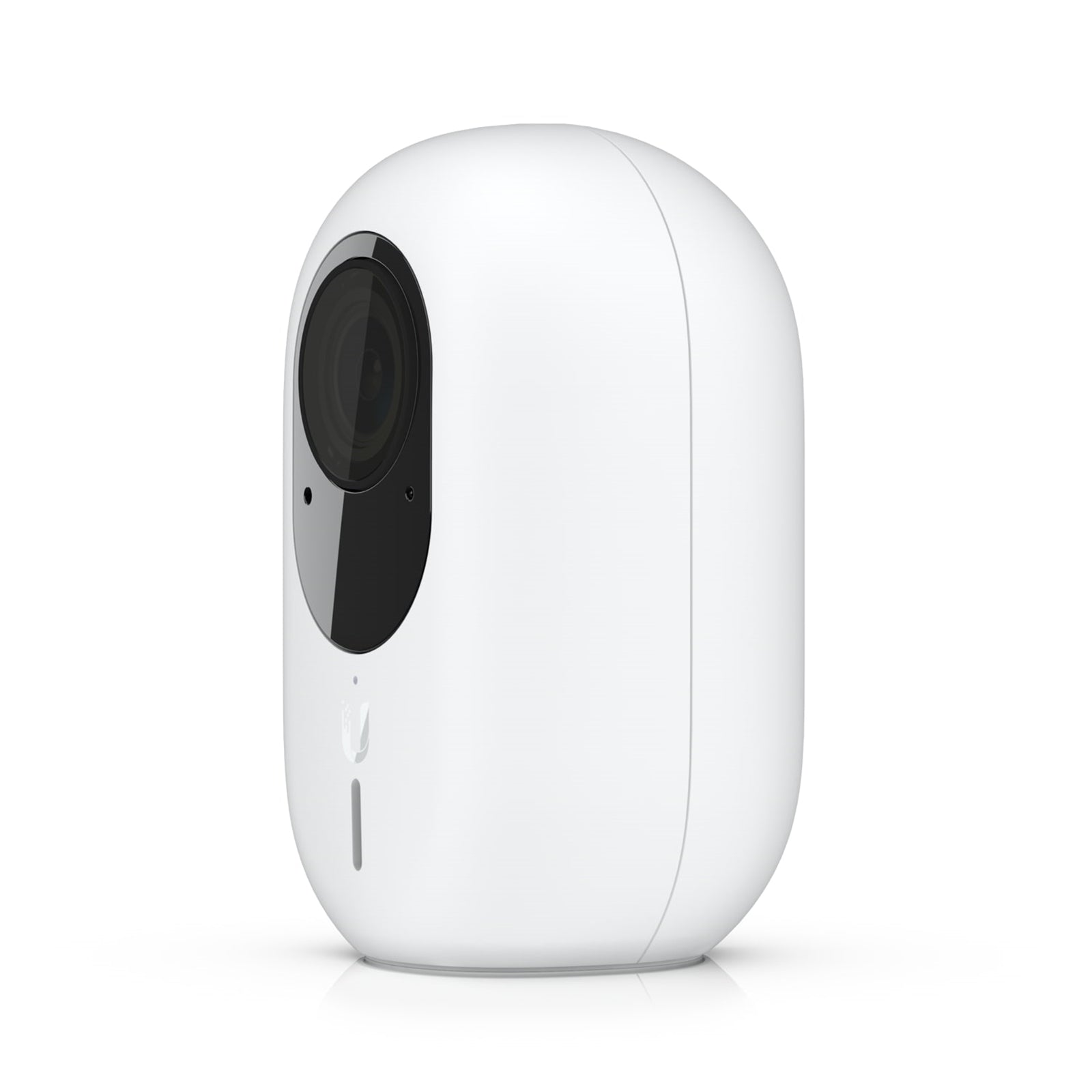

Ubiquiti UniFi Protect G4 Instant 2K HD WiFi Security Camera

The Ubiquiti UVC-G4-INS G4 Instant delivers professional-grade surveillance in a compact, plug-and-play WiFi camera. Featuring 2K HD resolution at 30 frames per second, this weatherproof security camera provides crystal-clear video monitoring for both indoor and outdoor applications.

Advanced 2K HD Video Quality

Equipped with a 5MP CMOS sensor and 2688 x 1512 resolution, the G4 Instant captures detailed footage at 30 FPS using H.264/MJPEG compression. The fixed focal length 2.8mm f/1.6 lens provides a comprehensive view angle of 102.4° horizontal, 54.9° vertical, and 120.6° diagonal, ensuring maximum coverage with minimal blind spots.

Superior Night Vision Capability

Built-in IR LEDs with automatic IR cut filter technology enable optimal nighttime surveillance, maintaining clear video quality in complete darkness. The dual-core ARM Cortex-A7 processor ensures smooth performance with advanced image settings including 2DNR, 3DNR, and noise reduction by motion.

Weatherproof IPX5-Rated Construction

The polycarbonate enclosure features IPX5 weatherproofing and IK04 impact resistance, making this camera suitable for high-traffic outdoor areas. Operating reliably in temperatures from -20°C to 40°C (-4°F to 104°F), the G4 Instant withstands harsh environmental conditions while maintaining tamper-resistance.

Two-Way Audio Communication

Integrated microphone and speaker enable real-time two-way audio communication, allowing you to interact with visitors or deter potential intruders. Audio features can be disabled through UniFi Protect settings for privacy-focused applications.

Simple WiFi Setup with UniFi Protect

Connect via 802.11 a/b/g/n/ac WiFi and Bluetooth for seamless integration with your UniFi Protect ecosystem. The camera adopts and configures in minutes using the UniFi Protect mobile app (iOS and Android) or web application, eliminating complex installation procedures.

Compact Wall-Mountable Design

Measuring just 81.6 x 50 x 47.2mm and weighing 125g without mount, the G4 Instant installs easily using the included wall mount kit. Powered by the included 5V 2A USB adapter with EU plug, this camera requires no additional networking cables.

Technical Specifications

Mechanical

Dimensions
81.6 x 50 x 47.2 mm (3.21 x 1.97 x 1.86")

Weight
Without mount: 125 g (4.41 oz)
With mount: 163 g (5.75 oz)

Enclosure material
Polycarbonate

Mount material
Polycarbonate

Weatherproofing
IPX5

Resistance
IK04

Optics
Sensor
5 MP CMOS sensor

Lens
Fixed focal length EFL 2.8 mm, f/1.6

View angle
H: 102.4°, V: 54.9°, D: 120.6°

Night mode
Built-in IR LED illumination and IR cut lter

Video

Compression
H.264/MJPEG

Resolution
2688 x 1512 (16:9)

Maximum frame rate
30 FPS

Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

System

Processor
Dual core Arm Cortex -A7 based chip

Memory
2 GB DDR3

Management interface
UniFi Protect

Networking interface
802.11 a/b/g/n/ac WiFi
Bluetooth

Flash memory support
2 GB

Max power consumption
6W

Power supply
5V, 2A USB power adapter (included)

Supported voltage range
DC 5V, 2A

Link/activity LED
R/G/B/W

Button
Factory-reset

Mounting
Wall mount (included)

Operating temperature
-20 to 40° C (-4 to 104° F)

Operating humidity
0 to 90% Noncondensing

Certifications
FCC, IC, CE

Audio
MicrophoneYes (can be disabled in UniFi Protect)

Speaker
Yes

Software

UniFi OS application
UniFi Protect

Mobile app
UniFi Protect iOS and Android

Box Contents
1x UVC-G4-INS
1x Wall mount Kit (screws Included)
1x EU USB-C Power Cable

• Camera Resolution: 2688x1512
• Camera Type: Turret
• POE Capability: N/A
• Pack Size: Single
