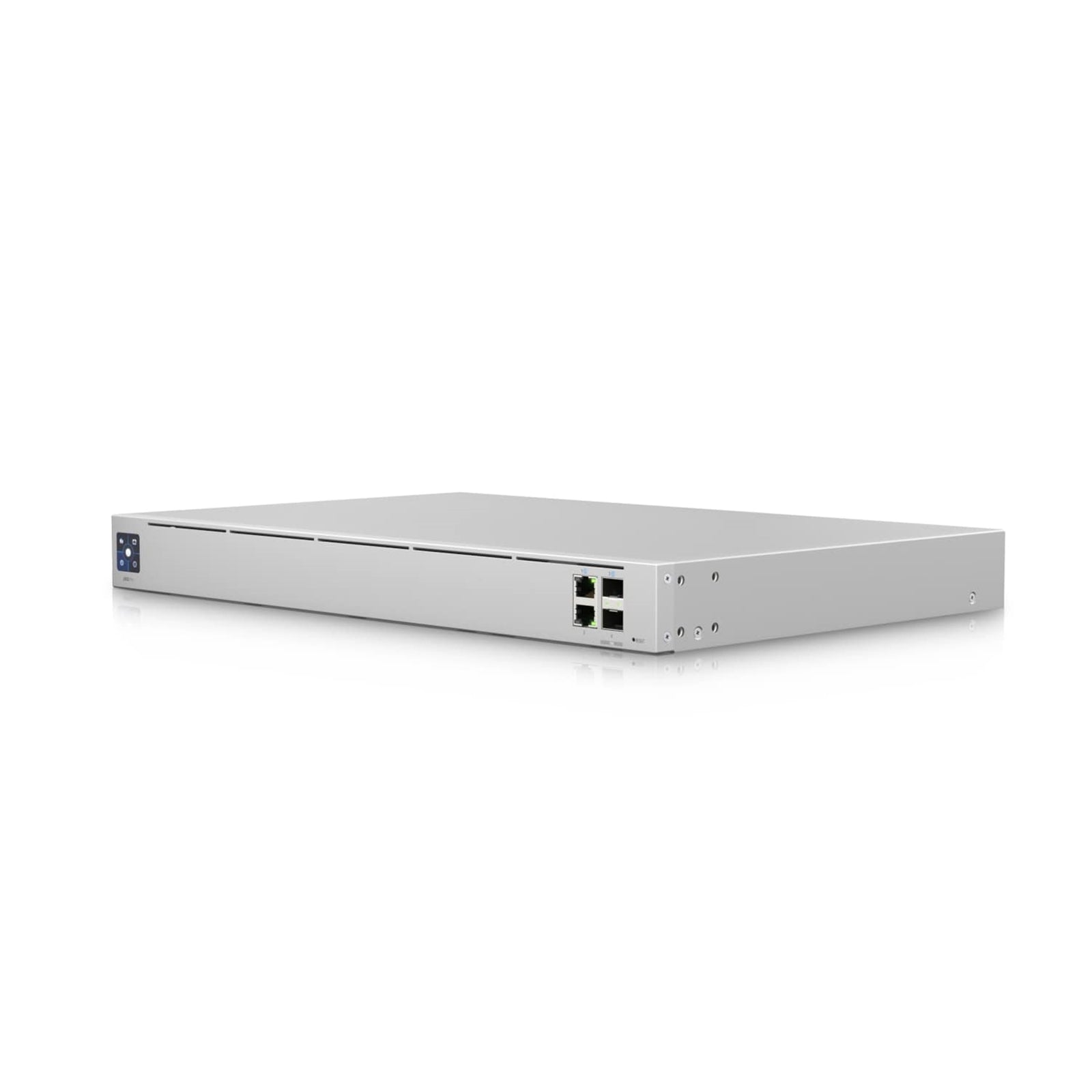

Ubiquiti UniFi Next-Generation Gateway Pro (UXG-Pro)

The UXG-Pro delivers enterprise-class network security and high-performance routing for medium to large-sized deployments. Built with a 1.7 GHz quad-core ARM Cortex-A57 processor and 2GB DDR4 memory, this security gateway handles bandwidth-intensive applications while maintaining comprehensive threat protection.

Dual WAN with 10G Connectivity

Equipped with (2) WAN ports featuring both GbE RJ45 and 10G SFP+ interfaces, the UXG-Pro provides automatic failover support to maintain network uptime. The (2) LAN ports mirror this configuration with GbE RJ45 and 10G SFP+ connectivity, delivering the throughput needed for demanding network environments.

Enterprise Network Security

The UXG-Pro functions as a complete security solution with deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. These threat mitigation features protect your network infrastructure while maintaining optimal performance.

Rack-Mountable Design

The 1U rack-mountable form factor (442.4 x 43.7 x 285.6 mm, 3.42kg) includes mounting hardware for professional installations. Power redundancy is available when connected to the UniFi SmartPower RPS (sold separately), and a SmartPower outlet (125VAC/2A) accommodates external modem power management.

UniFi Network Integration

Manage the UXG-Pro through the UniFi Network application (web/mobile). Pair with a Cloud Key Gen2 Plus for centralized control of your entire UniFi deployment. The Ethernet management interface provides reliable configuration access.

Key Features
1.7 GHz quad-core processor
(2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
(2) LAN ports (GbE RJ45 and 10G SFP+)
Enterprise-class DPI, IPS/IDS, and layered firewall configuration
Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
SmartPower outlet (125VAC/2A) for an external modem
1U-sized, rack-mountable device

Specifications

Physical

Dimensions
442.4 x 43.7 x 285.6 mm

Weight
3.42KG

Hardware

Processor Specs
Quad-core ARM Cortex-A57 at 1.7 GHz

Memory Information
2Gb DDR4

Management Interface
Ethernet

Networking Interface

LAN
1 x GbE RJ45 port
10G SFP+ port

WAN
1 x GbE RJ45 port
10G SFP+ port

Buttons
Factory Reset

Power Method
AC Input - 200-240VAC 1.7A 50/60Hz
RPS DC Input - 11.5VDC 2.87A

Power Supply
AC/DC internal 50W

Max Power Consumption
30W

Environmental

ESD/EMP protection
Air: ± 15 kV, contact: ± 8 kV

Operating temperature
-10 to 40° C (14 to 104° F)

Operating humidity
5 - 95% noncondensing

Certifications
CE, FCC, IC

Box Contents
UXG-PRO
Rackmount Ears
Rackmount screws
Rack screws and nuts
Rubber Feet (desktop use)
Power Cord

• Ports: 4
• Firewall: No
• Rack Mountable: Yes
