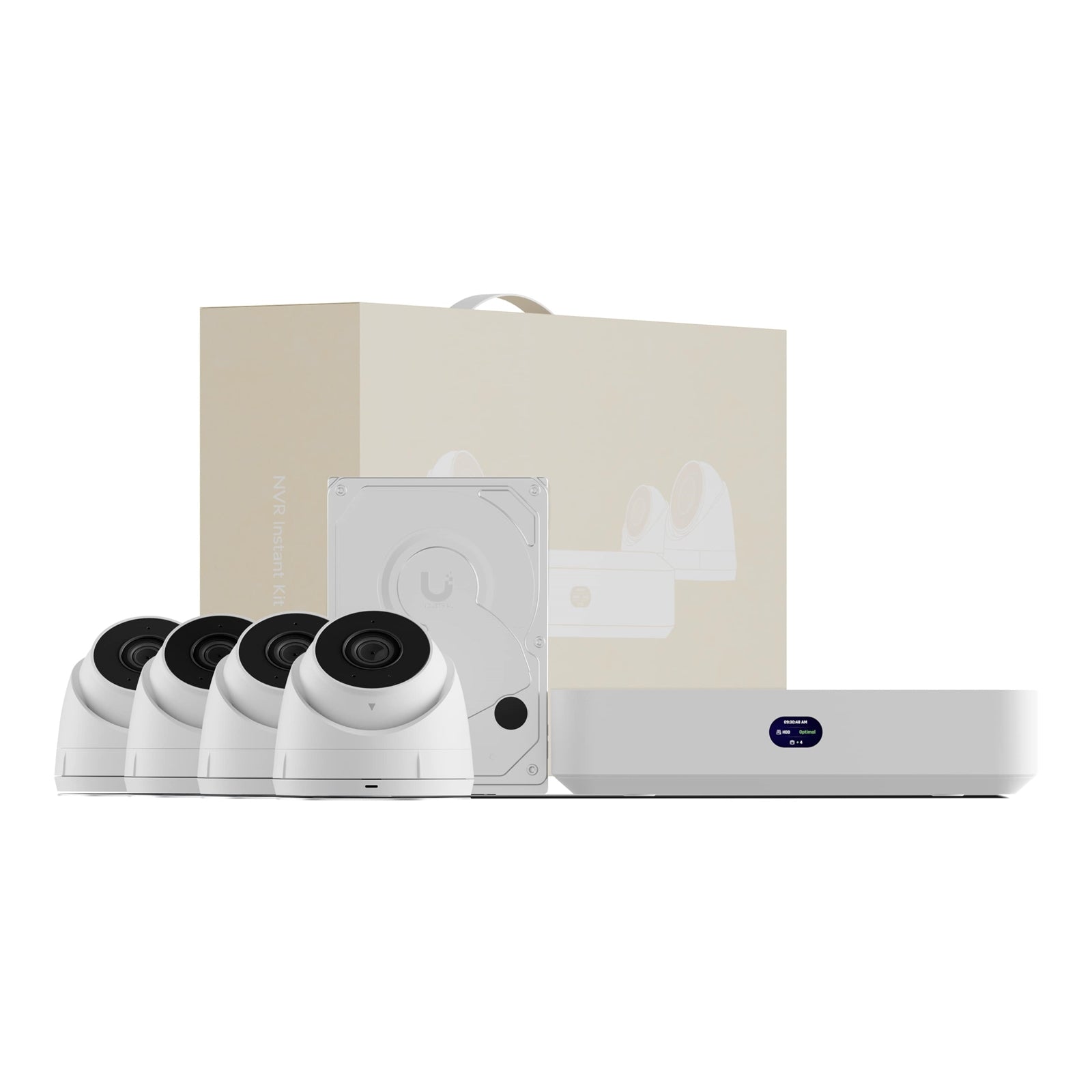

Ubiquiti UniFi Protect Network Video Recorder Instant Kit

The Ubiquiti UNVR-KIT delivers a complete surveillance solution combining the UniFi Protect NVR Instant, four G5 Turret Ultra cameras, and 1TB HDD storage in one package. This compact system provides professional-grade security monitoring with intelligent detection capabilities and seamless UniFi ecosystem integration.

Complete NVR System with Built-In PoE

The UniFi Protect NVR Instant features six GbE PoE ports delivering 40W total power budget, eliminating the need for separate switches or injectors. The compact 220 x 220 x 47mm unit supports up to 15 HD, 8 2K, or 6 4K cameras simultaneously. The quad-core ARM Cortex-A55 processor at 1.7 GHz with 4GB memory ensures smooth recording and playback across multiple camera feeds.

G5 Turret Ultra Camera Specifications

Each G5 Turret Ultra camera captures 2K resolution (2688 x 1512) at 30 FPS with a 1/2.4" CMOS sensor. The fixed focal length lens provides a 102.4° horizontal, 54.9° vertical, and 120.6° diagonal field of view. Built-in IR LED illumination enables night vision up to 30 meters. Smart detection algorithms identify people, vehicles, and animals, reducing false alerts. IP66 weatherproofing and IK04 tamper resistance ensure reliable outdoor operation in temperatures from -30 to 50°C.

Storage and Recording Capacity

The included 1TB 3.5" HDD operates at 5400 RPM with SATA 6 Gb/s interface and 180TB/year workload rating. The NVR supports one 3.5" drive bay with up to 11W power budget, allowing future storage expansion. Data protection features safeguard recordings, while Vantage Point provides timeline-based event navigation.

Installation and Connectivity

Wall and DIN rail mounting options accommodate various installation scenarios. The HDMI Viewport port enables direct monitor connection for live viewing. The 1.14" display provides system status at a glance. Ethernet and Bluetooth management options simplify configuration. Each G5 Turret includes a 30cm cable with RJ45 connector and polycarbonate jacket for weatherproof connections.

UniFi Ecosystem Integration

Native UniFi Protect application provides centralized management across all cameras and recording devices. Door Access support enables integration with UniFi Access control systems. The system is NDAA compliant and holds FCC, IC, CE, and UL certifications.

Ubiquiti Network Video Recorder Instant Kit

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.


Network Video Recorder Instant

Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")

UniFi Application Suite
Protect - Yes
Access - Yes

Managed Cameras
(15) HD
(8) 2K
(6) 4K

Storage Capacity
(1) 3.5" drive bay

Data Protection
Yes

Vantage Point
Yes

Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)

Form Factor
Compact Desktop

Mounting
Wall, Din rail mount (Included)

Door Access Support
Yes

Hard Drive Capacity
(1) 3.5" HDD support

Max. Power Budget for Drives
11W

Max. Power Consumption
9W

Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply
AC/DC, Internal, 60W

PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V

Processor
Quad-core ARM Cortex-A55 at 1.7 GHz

Memory
4 GB

Management
Ethernet
Bluetooth

Display
1.14" screen

Weight
1.04 kg (2.3 lb)

Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate

LEDs
Ethernet - Yes
PoE - Yes

Ambient Operating Temperature
0 to 40° C (32 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
FCC, IC, CE, Electrical Safety, UL

G5 Turret Ultra

Dimensions
90 x 71.2 mm
(3.5 x 2.8")

IR Night Vision
30 m (98 ft)

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
2K

Field of View
H: 102.4°, V: 54.9°, D: 120.6°

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall, ceiling mount (Included)
Junction box, arm mount (Optional)

Networking Interface
10/100 MbE RJ45 port

Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Max. Frame Rate
30 FPS

Resolution
4MP 2688 x 1512 (16:9)

Optics

Sensor
1/2.4" CMOS

Lens
Fixed focal length

Night Mode
Built-in IR LED illumination and IR cut filter

Max. Power Consumption
4W

Supported Voltage Range
37—57V DC

Power Method
PoE

Processor
Dual-core Arm Cortex-A7 based chip

Weight
330 g (11.6 oz)

Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate

Mount Material
Polycarbonate

Button
(1) Factory-reset

Cable

Cable Connector Type
RJ45

Cable Length
30 cm (1 ft)

Cable Diameter
5 mm (0.2")

Jacket Material
Polycarbonate

Jacket Enclosure Dimensions
20 x 70.6 mm (0.8 x 2.8")

Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
0 to 90% noncondensing

NDAA Compliant
?

Certifications
CE, FCC, IC

HDD

Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")

Hard Disk Form Factor
3.5-inch

Weight
0.45 kg (0.99 lb)

Storage Capacity
1 TB

Power Method
5V/12V input

Management Interface
SATA 6 Gb/s

Rotation Speed
5400 RPM

Workload Rating
180 TB/year

Mean Time Between Failure (MTBF)
1,000,000 h

Ambient Operating Temperature
0 to 65° C (32 to 149° F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
FCC, CE, UL, TUV, RCM, KC, BSMI

• Camera Resolution: 4K
• Camera Type: Turret
• POE Capability: 40v
• Pack Size: Bundle
