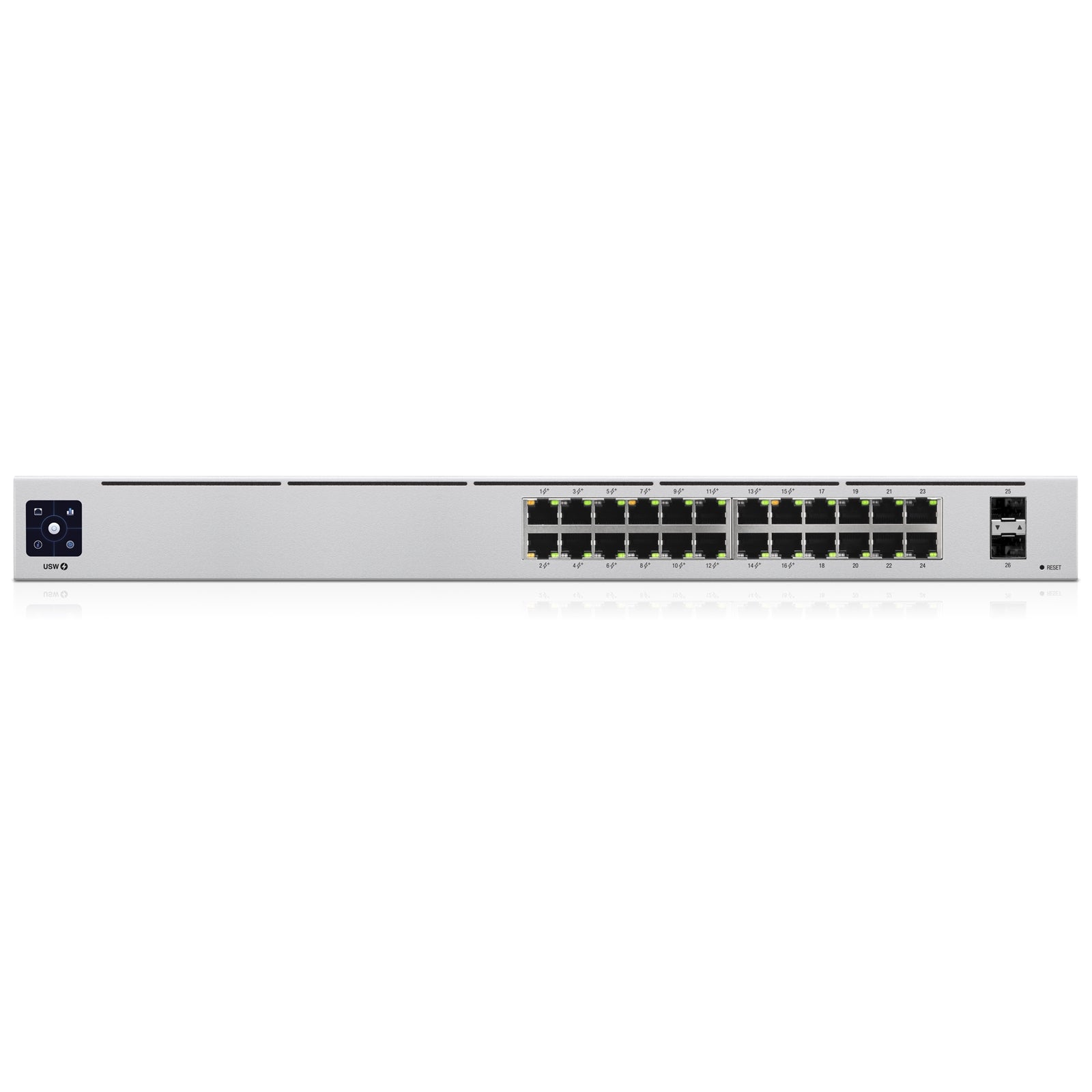

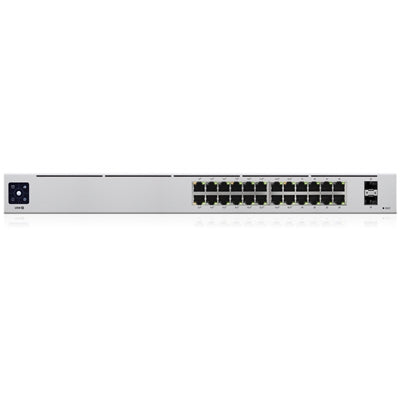

Ubiquiti USW-24 UniFi Gen2 24-Port Gigabit Network Switch

The USW-24 Gen2 delivers reliable Layer 2 switching for small to medium business networks requiring multiple Gigabit Ethernet connections. This managed network switch provides 24 Gigabit Ethernet ports plus 2 SFP ports for fiber uplink connectivity to your enterprise infrastructure.

Key Features and Specifications

Equipped with 24 Gigabit Ethernet ports, the USW-24 handles high-bandwidth applications across your network. The two 1 Gbps SFP ports enable fiber optic uplinks for extended network reach and backbone connectivity. The compact 1U rackmountable design fits standard network racks with included mounting hardware.

The integrated 1.3-inch color touchscreen provides real-time status information and network diagnostics directly on the switch, eliminating the need to access a separate management interface for quick troubleshooting. The fanless design ensures silent operation, making it suitable for noise-sensitive environments like offices and workspaces.

UniFi Network Controller Management

The USW-24 integrates seamlessly with the UniFi Network Controller platform, providing centralized management alongside other UniFi devices. Configure VLANs, monitor traffic, and adjust port settings through the intuitive UniFi interface. Mobile app support allows network management from iOS and Android devices.

Advanced Layer 2 Switching Capabilities

This managed switch supports comprehensive Layer 2 switching protocols including port-based operating modes for switching, mirroring, or aggregation. Configure individual port settings to optimize network performance based on specific requirements. VLAN support enables network segmentation for improved security and traffic management.

Technical Specifications

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3" color touchscreen for status information
Managed by UniFi Network Controller
1U rackmountable (kit included)

• Speed: Gigabit
• Ports: 24
• POE Capability: No
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
