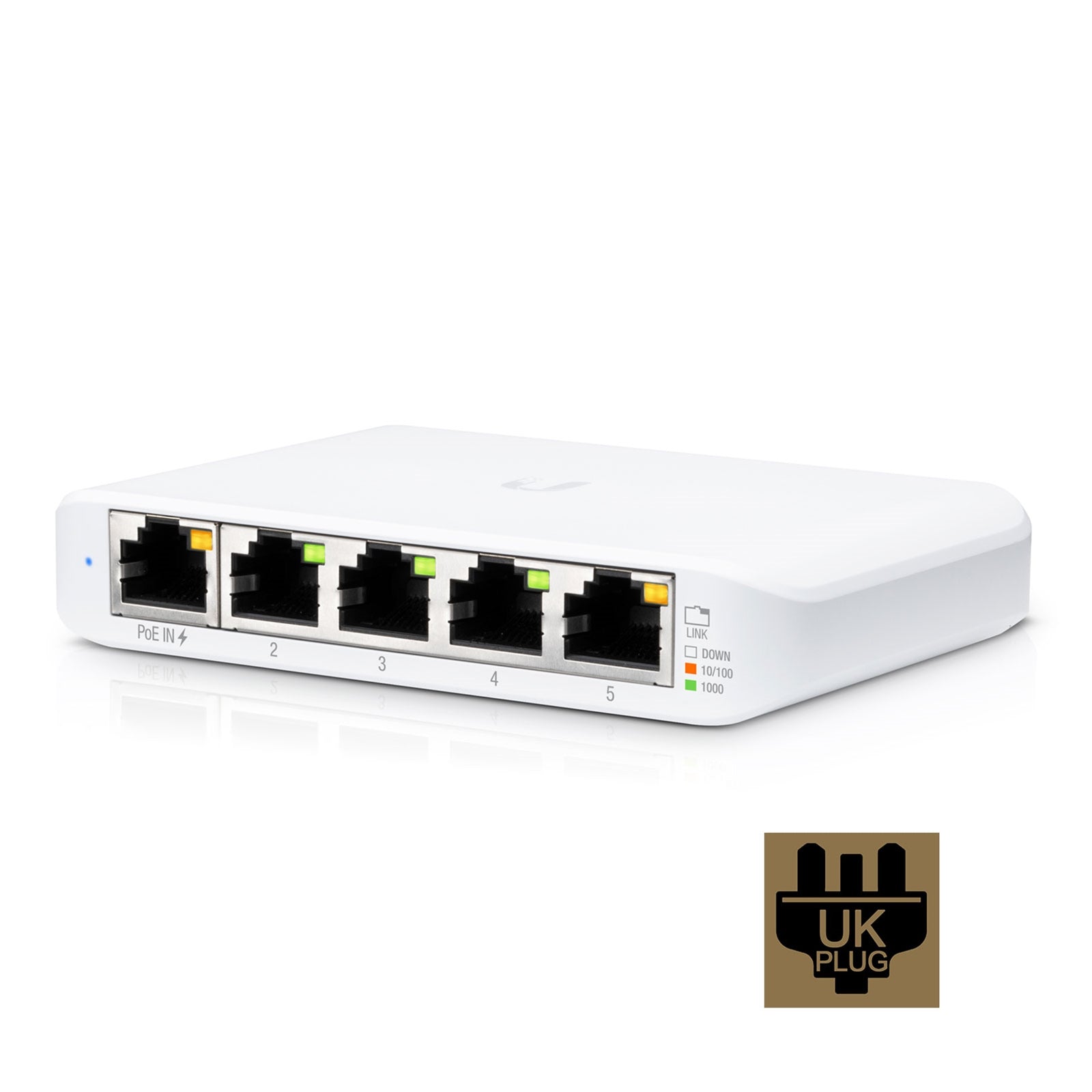

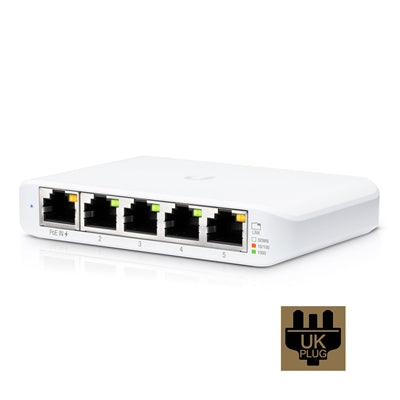

Ubiquiti USW-FLEX-MINI 5-Port Managed Gigabit Network Switch

PLEASE NOTE THAT THIS PRODUCT INCLUDES A FITTED UK PLUG

The Ubiquiti USW-FLEX-MINI is a compact 5-port managed Gigabit Ethernet switch designed for expanding UniFi network deployments. This smart managed switch delivers reliable 1 Gigabit connectivity across all five RJ45 ports, making it suitable for small office, home office, and business networking applications where space is limited.

Flexible Power Options

Power the USW-FLEX-MINI using either the included 5V 1A USB Type-C adapter or via 802.3af/at PoE through port 1. This dual power capability provides installation flexibility, allowing deployment in locations without traditional power outlets when connected to PoE-enabled upstream switches. Maximum power consumption is just 2.5W, ensuring efficient operation.

UniFi Network Controller Integration

Full integration with the UniFi Network Controller enables centralized management of your entire network infrastructure from a single control plane. Configure, monitor, and manage the switch remotely with intuitive controls. Remote firmware upgrades ensure your switch stays current with the latest features and security updates. Guest portal and hotspot support capabilities extend network management to visitor access scenarios.

Compact Design for Versatile Deployment

Measuring 107.16 x 70.15 x 21.17 mm and weighing just 150g, the USW-FLEX-MINI fits virtually anywhere. The compact footprint makes it perfect for desktop installations, wall mounting, or discrete placement in tight spaces. Operating temperature range of -5 to 45°C supports deployment in various environmental conditions.

Technical Specifications

Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
Weight: 150 g (5.29 oz)
Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
PoE In Interface: 802.3af/at PoE (Pins 1, 2+; 3, 6-)
Max Power Consumption: 2.5W
Power Method: USB Type C, 5V / 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply: 5V, 1A Power Adapter (Included with single-pack)
Voltage Range: USB Type C - 4.7 - 5.2VDC / 802.3af/at PoE - 44 - 57VDC
LEDs: System Status, RJ45 Data Ports - Link/Speed/Activity
ESD/EMP Protection: ± 16kV Air, ± 12kV Contact
Operating Temperature: -5 to 45°C (23 to 113°F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

• Speed: Gigabit
• Ports: 5
• POE Capability: No
• Managed or Unmanaged: Managed
• Rack Mountable: No
