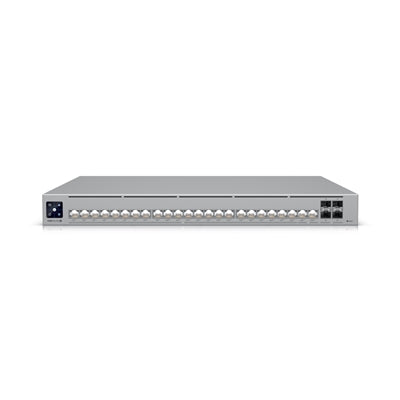

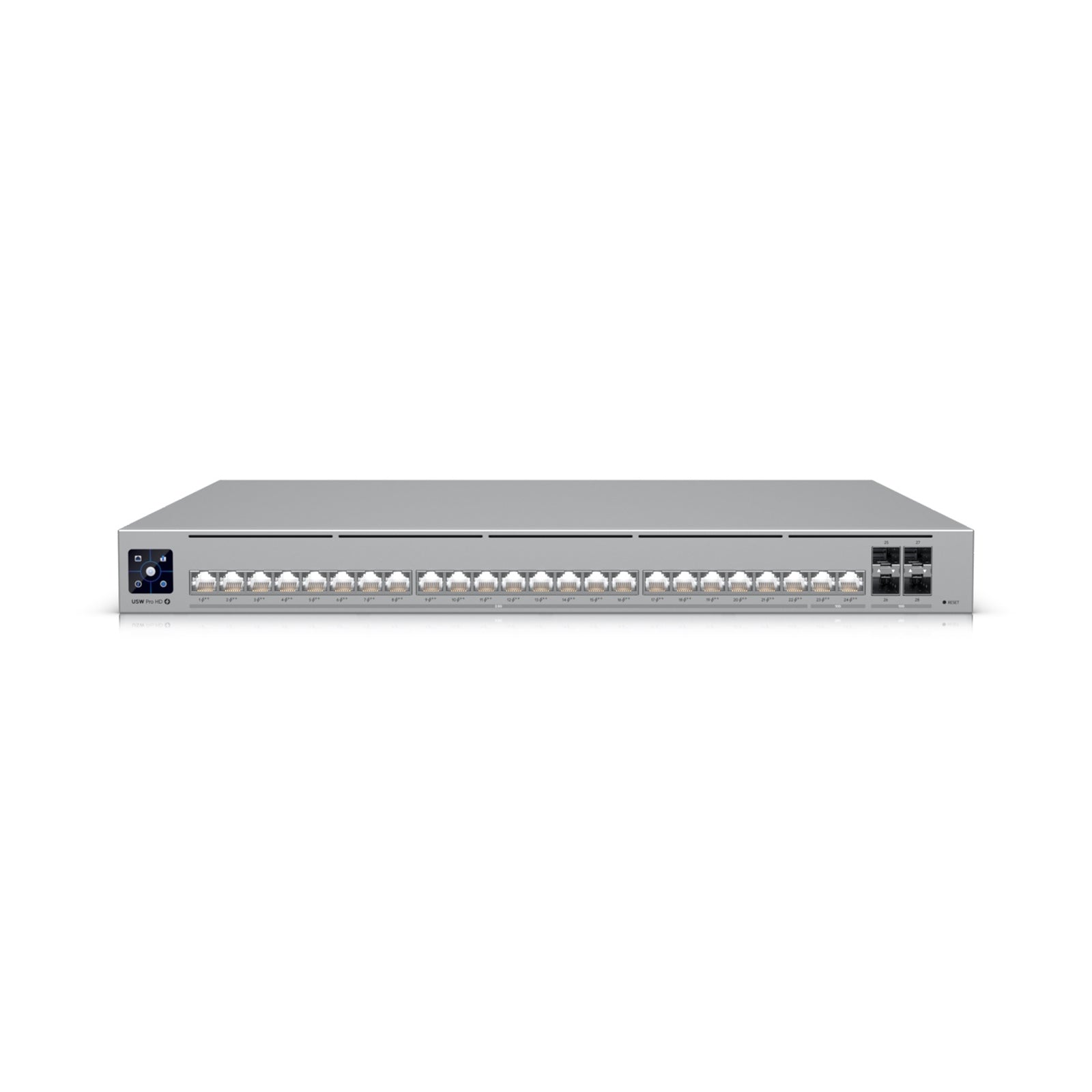

Ubiquiti USW-PRO-HD-24-POE UniFi Switch Pro HD 24

The Ubiquiti USW-PRO-HD-24-POE delivers professional-grade network infrastructure with advanced Layer 3 routing capabilities and high-density Power over Ethernet. This 1U rack-mountable switch combines 24 PoE++ ports with 10 Gigabit uplinks, making it suitable for enterprise deployments, data centers, and professional AV installations.

High-Performance Port Configuration

The switch features 22 ports of 2.5 Gigabit Ethernet and 2 ports of 10 Gigabit Ethernet, all supporting PoE++ (802.3bt) with up to 64W per port. Four additional 10G SFP+ ports provide high-speed fiber connectivity for backbone connections. With 230 Gbps switching capacity and 115 Gbps non-blocking throughput, the USW-PRO-HD-24-POE handles demanding network traffic efficiently.

Power Over Ethernet Capabilities

The 600W total PoE budget supports power-hungry devices including PTZ cameras, access points, VoIP phones, and digital signage. Each PoE++ port delivers up to 64W, with backward compatibility for PoE+ (32W) and standard PoE (15.4W) devices. DC power backup redundancy ensures continuous operation during AC power interruptions.

Layer 3 Routing and Advanced Features

Full Layer 3 functionality includes inter-VLAN routing, static routing, and DHCP server capabilities across 1000 supported VLANs. The switch supports 12,000 ARP entries and 12,000 IPv4 routes with a 32,000 MAC address table. Professional AV profiles for Dante, NDI, SDVoE, Q-SYS, AES67, Shure, and Crestron systems simplify multimedia network configuration.

Network Security and Management

Comprehensive security features include 802.1X authentication, DHCP snooping and guarding, MAC-based and IP-based ACLs, device isolation, and port isolation. Advanced traffic management through IGMP snooping, QoS (DSCP), storm control, and multicast/broadcast rate limiting ensures optimal network performance. The 1.3-inch touchscreen LCM display provides local management alongside UniFi Network Controller integration.

Etherlighting Technology

Integrated Etherlighting provides visual port identification and status monitoring through customizable LED lighting, simplifying cable management and troubleshooting in complex installations.

Technical Specifications

Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7")

Port Layout
2.5 GbE RJ45
22 (All PoE++)

10 GbE RJ45
2 (All PoE++)

10G SFP+
4

Max. PoE Output
Up to PoE++

Total PoE Availability
600W

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Switching Capacity
230 Gbps

Total Non-Blocking Throughput
115 Gbps

Forwarding Rate
171 Mpps

Supported VLANs
1000

MAC Address Table Size
32000

L3 Table Size
ARP Entries
12,000

IPv4 Routes
12,000

Packet Buffer Size
2 MB

DHCP Server (Local Networks)
Yes

DHCP Relay
Yes

Inter-VLAN Routing (Local Networks)
Yes

Static Routing (Local Networks)
Yes

LACP Port Aggregation
Yes

STP & RSTP
Yes

QoS (DSCP)
Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes

IGMP Snooping
Yes

802.1X Control
Yes

MAC-Based ACLs & Device Isolation
Yes

DHCP Snooping & Guarding
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast & Broadcast Rate Limiting
Yes

MAC Address Blocking
Yes

IP-Based ACLs & Network Isolation
Yes

MAC-Based Port Restriction
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

LLDP-MED
Yes

Voice VLAN
Yes

Loop Protection
Yes

PoE Ports
PoE++
24

Max. PoE Wattage per Port by PSE
PoE
15.4W

PoE+
32W

PoE++
64W

Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC Input

Power Supply
AC/DC, internal, 660W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)

Enclosure Material
SGCC steel

LCM Display
1.3" touchscreen

Certifications
CE, FCC, IC

• Speed: 2.5 GbE
• Ports: 24
• POE Capability: 48v
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
