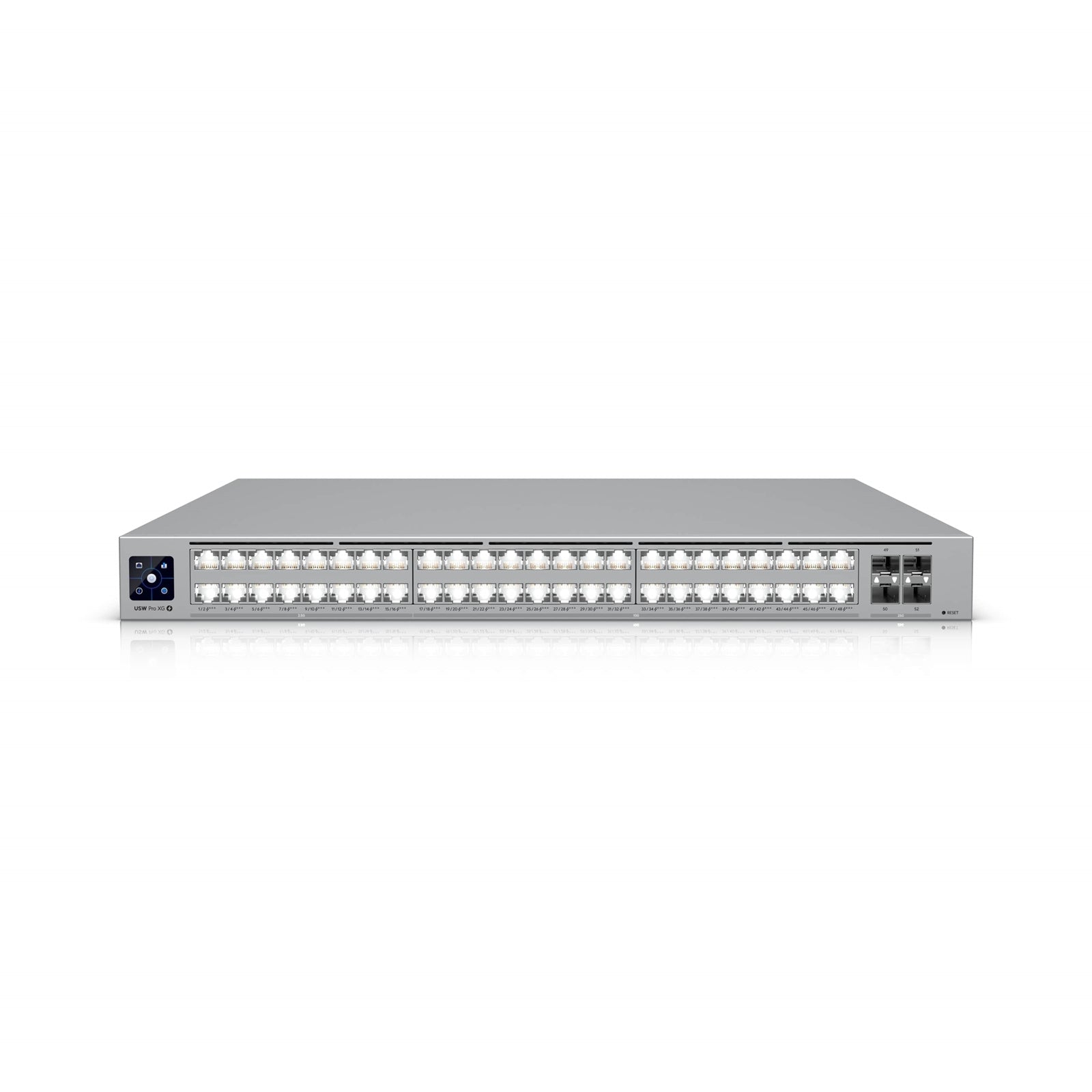

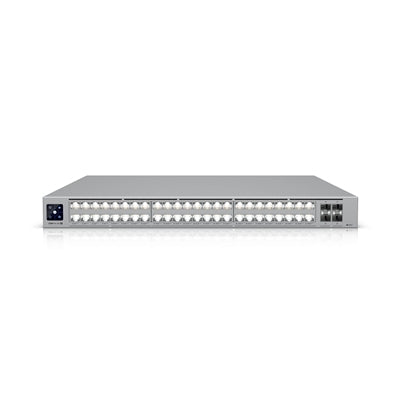

Ubiquiti USW-Pro-XG-48 Professional Layer 3 Switch

The Ubiquiti Pro XG 48 delivers professional-grade network performance with 48 high-speed ports across multiple Ethernet standards. This 1U rack-mount switch combines 32 ports of 10 GbE RJ45, 16 ports of 2.5 GbE RJ45, and 4 ports of 25G SFP28 connectivity, providing 920 Gbps switching capacity and 460 Gbps non-blocking throughput for demanding enterprise and data center environments.

High-Performance Network Architecture

Built for bandwidth-intensive applications, this Layer 3 switch processes 684 Mpps with an 8 MB packet buffer. The 128,000-entry MAC address table and 256,000 IPv4 routes support large-scale network deployments. With support for 1,000 VLANs and comprehensive Layer 3 routing capabilities including inter-VLAN routing, static routing, DHCP server and relay functions, the USW-Pro-XG-48 handles complex network topologies efficiently.

Etherlighting Port Identification

Integrated Etherlighting technology simplifies network management through visual port identification via the UniFi Network application. The 1.3-inch touchscreen LCM display provides direct access to device information and configuration status. Manage the switch through the UniFi Network application version 9.0.114 or later for centralized control across your infrastructure.

Enterprise-Grade Features

Advanced Layer 2 capabilities include LACP port aggregation, STP/RSTP, 802.1X authentication, IGMP snooping with advanced configuration options, DHCP snooping and guarding, and comprehensive ACL support with 256 IPv4 and 256 MAC access lists. Port mirroring, storm control, jumbo frame support, and LLDP-MED ensure compatibility with modern network requirements.

Technical Specifications

Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") | Weight: 7.5 kg without mounting brackets | Power: 300W internal AC/DC supply with USP RPS DC backup input, 250W max consumption | Operating Temperature: -5 to 40°C | Certifications: CE, FCC, IC, NDAA Compliant

Port Configuration:
• 16x 2.5 GbE RJ45 (2.5G/1G/100M/10M)
• 32x 10 GbE RJ45 (10G/5G/2.5G/1G/100M/10M)
• 4x 25G SFP28 (25G/10G/1G)

The SGCC steel enclosure fits standard 19" four-post racks with post depths from 600 to 1,066 mm. DC power backup redundancy ensures continuous operation in critical environments. ESD protection rated to ±30kV air discharge and ±14kV contact discharge provides robust protection against electrical interference.

• Speed: 10G
• Ports: 52
• POE Capability: No
• Managed or Unmanaged: Unmanaged
• Rack Mountable: Yes
