Ubiquiti AI Theta Pro 360-Degree Ceiling Camera System

The Ubiquiti UVC-AI-Theta-Pro delivers comprehensive 360-degree panoramic surveillance for large commercial spaces. This discreet ceiling-mounted system combines an 8MP 1/1.8" CMOS sensor with AI detection capabilities, providing complete coverage without blind spots.

Complete Two-Component System

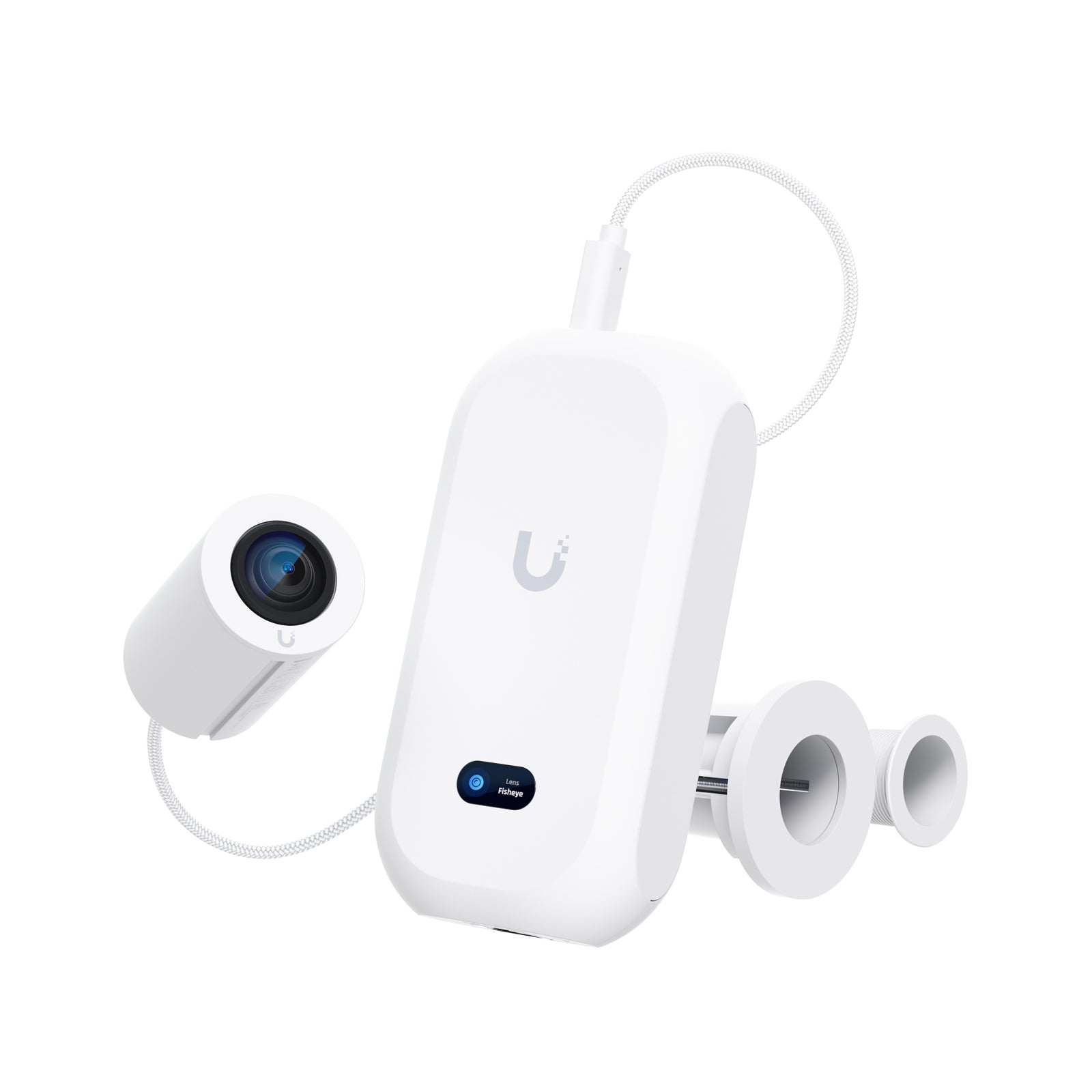

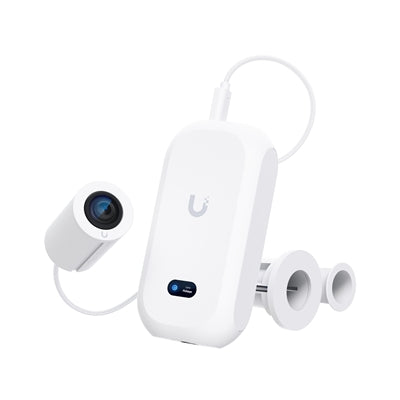

The AI Theta Pro consists of two primary components: the UVC-AI-Theta-Hub processing unit (170 x 70 x 38mm, 330g) and the UVC-AI-Theta-ProLens360 camera lens (36.6mm diameter, 58.9mm length, 58g). The hub features a quad-core Arm Cortex-A53 processor with a 0.96" color display for system monitoring. The lens connects via a 1-meter proprietary cable with woven fabric jacket.

Advanced Imaging Performance

Equipped with an 8MP sensor, the system outputs 4MP resolution at 2160 x 2160 (1:1 aspect ratio) with 24 FPS maximum frame rate. The fixed focal length lens provides 180-degree coverage across horizontal, vertical, and diagonal viewing angles. Image optimization includes adjustable color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, noise reduction by motion, masking capabilities, and text overlay options.

Professional Network Integration

The system connects via GbE RJ45 port with PoE support (37-57V DC range). Maximum power consumption reaches 12.5W, with the hub supplying 5V DC at 1A per port to connected components. The aluminum alloy and polycarbonate construction ensures durability for continuous commercial operation.

Flexible Mounting Options

Both wall and ceiling mounting options accommodate various installation requirements. The ProLens360 includes a flush mount option (24g polycarbonate) for seamless ceiling integration in professional environments. The hub mount (35g aluminum alloy) provides secure attachment for the processing unit.

Technical Specifications

Dimensions
UVC-AI-Theta-Hub: 170 x 70 x 38mm
UVC-AI-Theta-ProLens360: 36.6mm diameter, 58.9mm long

Weight
UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-ProLens360: 58 g (2 oz)
UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz)

Enclosure Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate

Mount Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate

Cable Jacket Enclosure Dimensions
28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")

Cable Jacket Enclosure Material
PVC

Cable Length
1m

Cable Diameter
3.7mm

Cable Jacket Material
Woven Fabric

Cable Weight
18g

Cable Connector Type
Theta Proprietary

Sensor
8MP 1/1.8" CMOS

Lens
Fixed Focal Length

Viewing Angle
H: 180°, V: 180°, D: 180°

Resolution
4MP 2160 x 2160 (1:1)

Max. Frame Rate
24 FPS

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Power Supply
5V DC, 0.5A

Processor
Quad-core Arm Cortex-A53 based chip

Networking Interface
GbE RJ45 port

Max. Power Consumption
12.5W

Power Method
PoE

Supported Voltage Range
37—57V DC

Output Power
5V DC, 1A per port

Display
0.96" color display

Button
Factory Reset

Mounting
Wall/Ceiling Mount

Certifications
FCC, IC, CE

• Camera Resolution: 4MP
• Camera Type: AI
• POE Capability: 48v
• Pack Size: Single
